As a professional manufacturer based in Jinhua, Zhejiang, China, Jinhua Dika Electrical Equipment Co., Ltd. specializes in high-quality power capacitors for industrial and utility applications. Our 11kV 7.2kV 150kvar Shunt Capacitor is designed to improve power factor, reduce line losses, and enhance the efficiency of electrical systems. Each unit comes with a 1-Year Warranty and a Mill Test Report, ensuring reliable performance and full traceability. We have an annual export value of US$1–1.5 million and serve markets across North America, South America, Europe, Asia, Africa, and Oceania.
This shunt capacitor is built with premium materials and advanced manufacturing processes to meet the demanding requirements of medium-voltage power networks. It supports both 11kV and 7.2kV nominal voltages (selectable) and delivers 150 kvar of reactive power compensation. Whether used in substations, industrial plants, or renewable energy installations, this capacitor offers stable operation under varying load conditions.
Key Features & Technical Specifications:
- High voltage rating: 11kV / 7.2kV (customizable voltage taps available)
- Rated output: 150 kvar (other ratings available upon request)
- Dielectric system: Metallized polypropylene film with self-healing properties; oil-impregnated for enhanced insulation and heat dissipation
- Enclosure: Heavy-duty aluminum or steel casing with weather-resistant coating for outdoor or indoor use
- Internal discharge resistor: Reduces residual voltage to safe levels within 5 minutes
- Protection: Internal pressure-sensitive disconnector for safety

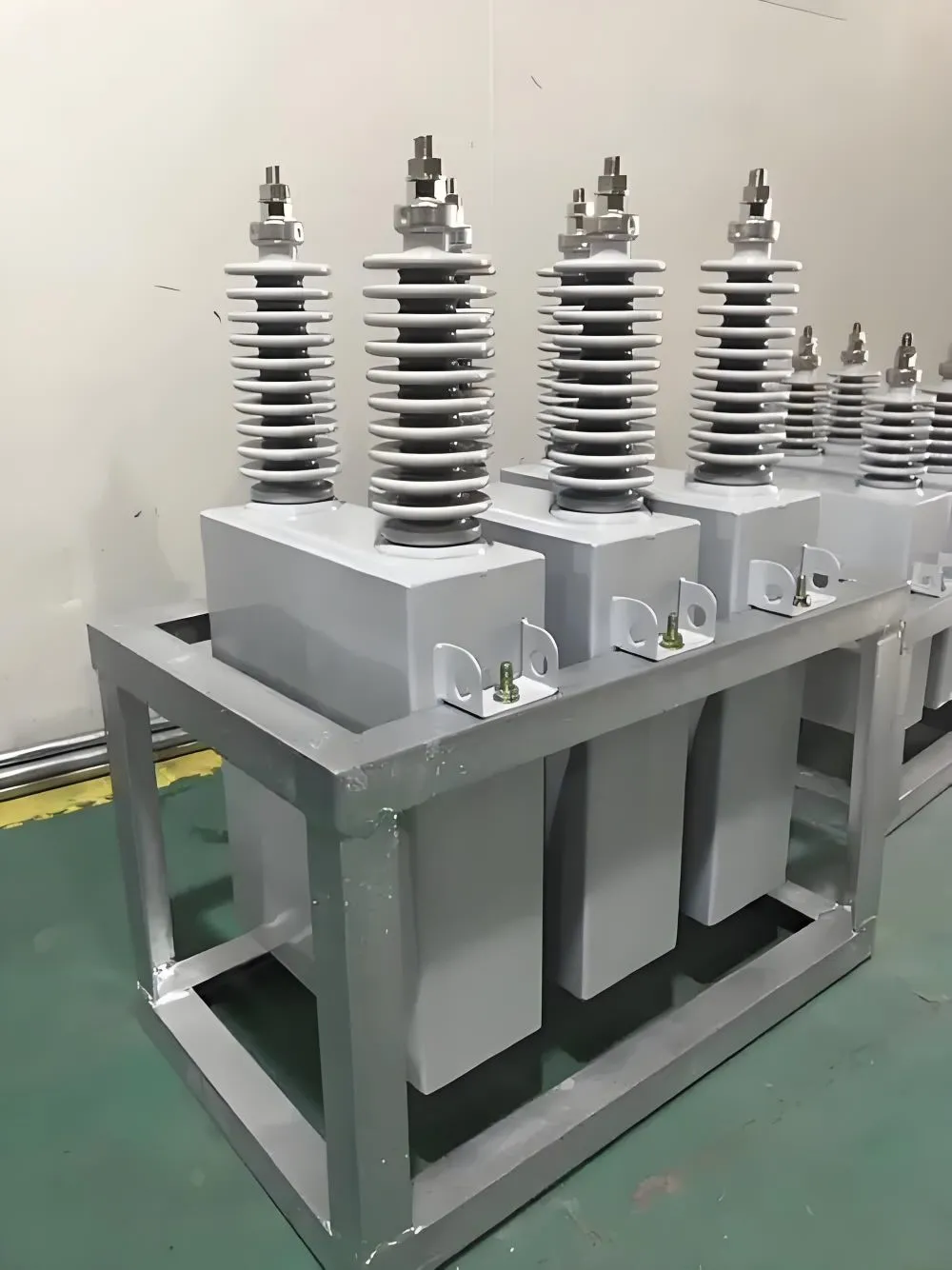

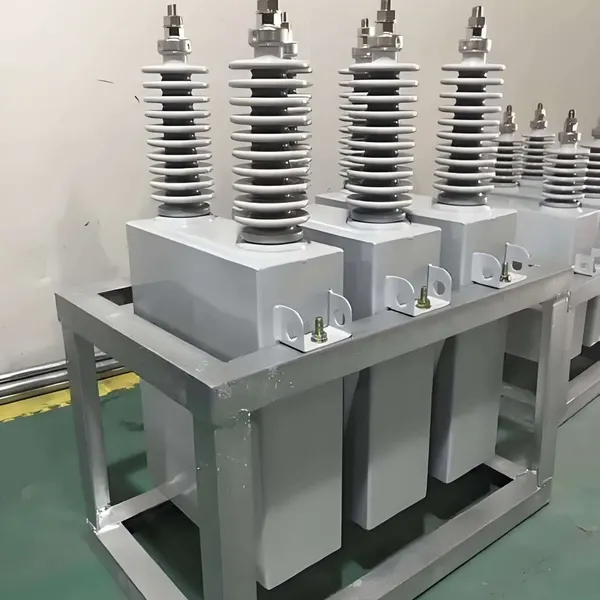

- Installation: Suitable for horizontal or vertical mounting; optional rack assembly available
- Testing: Each unit undergoes factory testing according to IEC 60871-1; Mill Test Report provided
| Parameter | Value |
| Rated Voltage (Rated) | 11 kV / 7.2 kV (50/60 Hz) |
| Rated Output | 150 kvar |
| Capacitance Tolerance | -5% to +10% |
| Dielectric Loss (tan δ) | ≤ 0.2 W/kvar |
| Maximum Overvoltage | 1.1 × Un (10% of time) |
| Maximum Overcurrent | 1.3 × In (continuous) |
| Ambient Temperature Range | -25°C to +50°C |
| Warranty | 1 Year |
| Mill Test Report | Included with each shipment |
Customer Benefits:
- Energy savings: Improves power factor and reduces utility penalties.
- Long service life: Self-healing film and oil impregnation extend operational life even under stress.
- Safe operation: Internal pressure disconnector and discharge resistors ensure safety during maintenance.

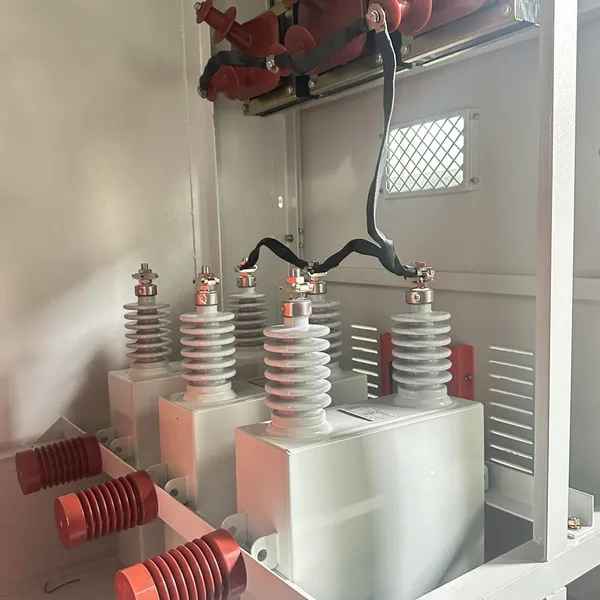

- Easy integration: Compact design and flexible mounting options simplify installation in existing switchgear.
- Compliance support: Mill Test Report provides documented performance data for project acceptance.
Trust & Reliability: Our company employs 11–50 skilled professionals and maintains a quality management system aligned with ISO9001 standards (certification details available on request). We have exported to North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, and other regions. Shipped via Shanghai, Tianjin, Guangzhou, or Ningbo ports. With an annual export value exceeding US$1 million, we are a reliable partner for power capacitor solutions. Each capacitor is individually tested and packed to ensure safe delivery. We welcome OEM/ODM orders and custom voltage/kvar ratings.
Frequently Asked Questions (FAQ):
-
Q: Can this capacitor be used at 11kV only, or also at 7.2kV?
A: The capacitor is designed for dual voltage ratings – 11kV and 7.2kV – by adjusting the internal tap connections. Please specify your nominal voltage when ordering. -
Q: What does the Mill Test Report include?
A: The report provides capacitance measurement, tan δ, voltage withstand test, and insulation resistance data for that specific unit, ensuring conformity with IEC standards. -
Q: Do you offer customized kvar ratings?
A: Yes, we can manufacture capacitors with various kvar values from 50 kvar to 500 kvar, subject to technical feasibility. Minimum order quantity may apply. -
Q: Is this capacitor suitable for outdoor installation?
A: Yes, the enclosure is weather-resistant for outdoor use. For extreme environments, optional coating is available. Indoor installation is also fine. -
Q: What is the expected lifespan of this capacitor?
A: Under normal operating conditions, typical lifespan exceeds 10 years, but this depends on operating voltage, temperature, and harmonics. -
Q: Do you provide installation support?
A: We provide a user manual with each unit and technical support via email. On-site installation guidance can be arranged upon request (fees may apply). -
Q: What certifications does your factory hold?
A: Our factory complies with ISO9001 quality management system. Other certifications (e.g., ISO14000, OHSAS18001) are also held; copies can be shared upon request. -
Q: How is the capacitor packed for shipment?
A: Each capacitor is securely packed in a wooden crate with foam padding to prevent damage during transit. Neutral or branded packaging is available.
Contact us today for a quote or further technical details. With a proven track record and a dedicated team, Jinhua Dika Electrical Equipment Co., Ltd. is ready to supply your high-voltage power capacitor needs. Request your sample or bulk order now!
