Knitted wire mesh machine
Overview
This machine is a crochet knitting machine. This screen machine is suitable for weaving metal and chemical fiber filters. Metal materials: stainless steel wire, galvanized iron wire, copper wire, tweezer wire. Chemical fiber material: nylon, glass fiber, polyester, ethylene, etc.
The shape of the product is cylindrical, the flattening width of the product is 600mm, the number of needles is 160-170 (can be customized according to customer requirements). Wire diameter (can be knitted with 3 or 4 strands); equipped with three motors, Power 0.75 ;motor speed 1500 / min.
Technical detail
Wire diameter |
0.1-0.3mm |
material |
stainless steel |
width size of mesh |
100 - 2000mm | speed |
1500R/min |
hole szie |
as costomer required
|
Rated voltage |
380V 550V |
factory directly sale New condition Flat knitting wire mesh circular machine crochet machine
INSTRUCTION
1. Preparation: Connect the motor tri-line and see if the motor rotates forward;
2. Wiring: install the bobbin, the thread passes through the porcelain eye; then put the needle, let the thread pass through the eye of the needle, winding from high to low;
3. Weaving the net: first shake with the handle, weave into the shape of the net, and then turn on the machine until the net is woven, increase to a certain length and clamp it on both sides.

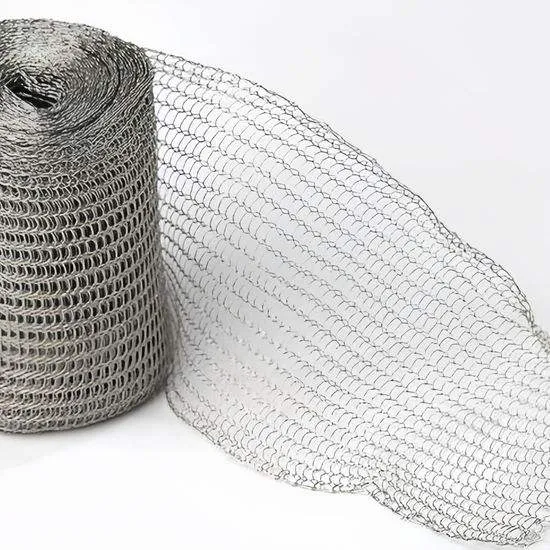

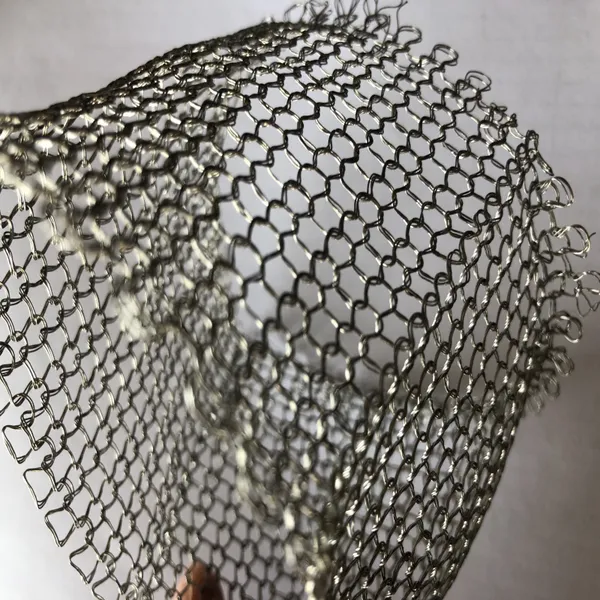

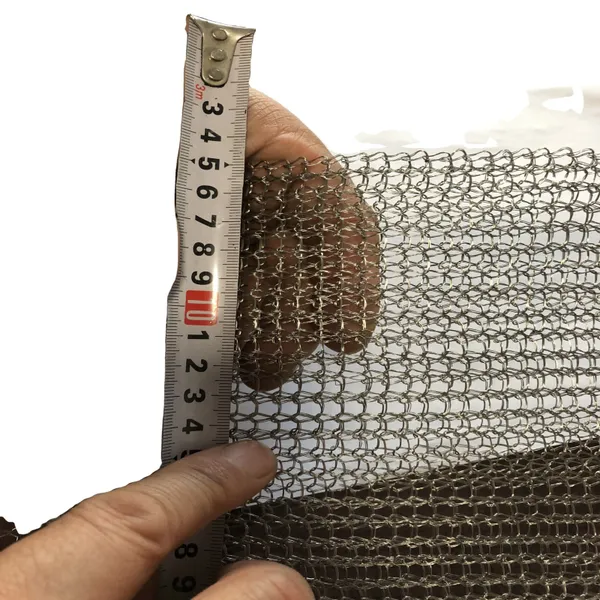

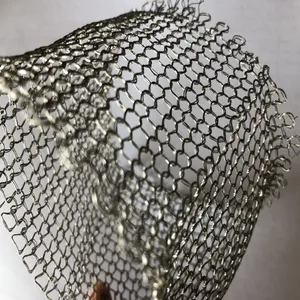

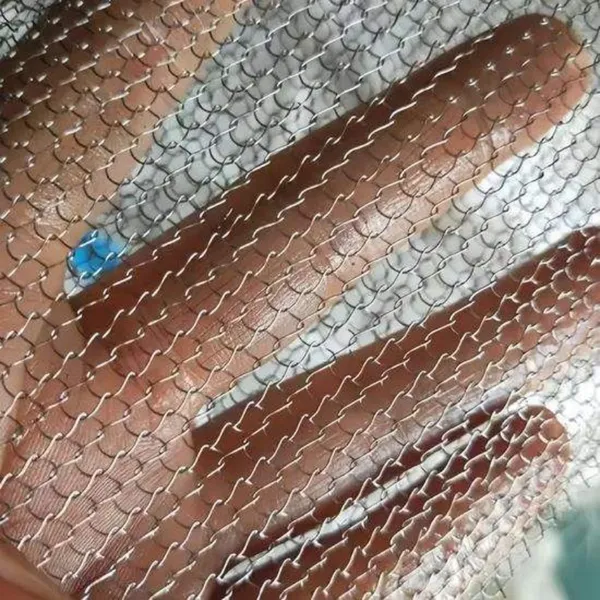

Gas Liquid Demister mesh, metal mesh demister, car filter shock pad, car filter bellows internal wire mesh, electromagnetic shielding wire mesh and high-temperature resistant, corrosion resistance bourdon tube produced by our advanced equipment, widely apply to petroleum refining, chemical industry, medicine industry, sea water desalinization, sewage disposal, auto industry, high-speed rail industry, aeronautical engineering and other fields. Our products sell well in domestic and foreign markets our the years. The exported global market include Russia, Turkey, Pakistan, Brazil, Singapore, Japan, United States, South Korea, India and other countries; We also provided advanced processing equipment for many high-tech companies, and we Provide technical services for technical cooperation with many Scientific Research Institution.
1. who are we?
We are based in hengshui, China, start from 2014,sell to Eastern Asia(50.00%),South Asia(40.00%),Mid East(10.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
wire mesh knitting machine,full automatic crimped wire mesh machine,wire mesh production line,wire mesh knitting machine,woven wire mesh
4. why should you buy from us not from other suppliers?
Our company based on high-grade, precision and advanced technology. Our technical process are in the leading domestic level. we developed full automatic electromagnetic shielding wire mesh knitting machine and some other machines with advanced technical.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Cash;
Language Spoken:English,Chinese
