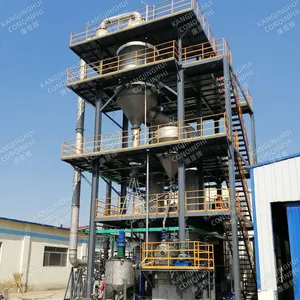

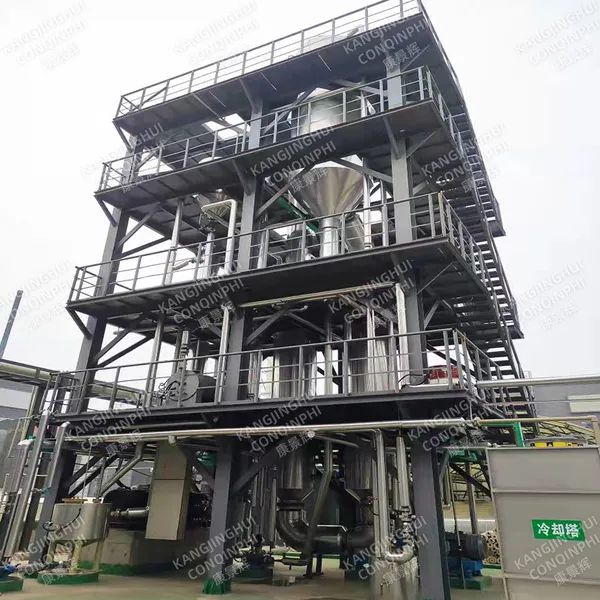

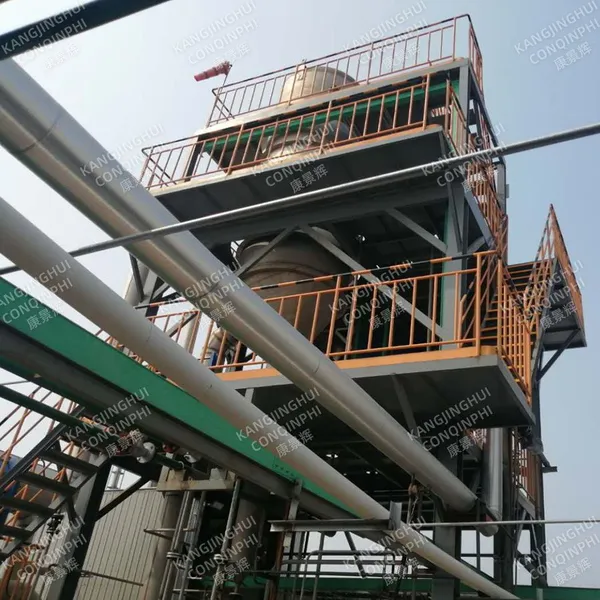

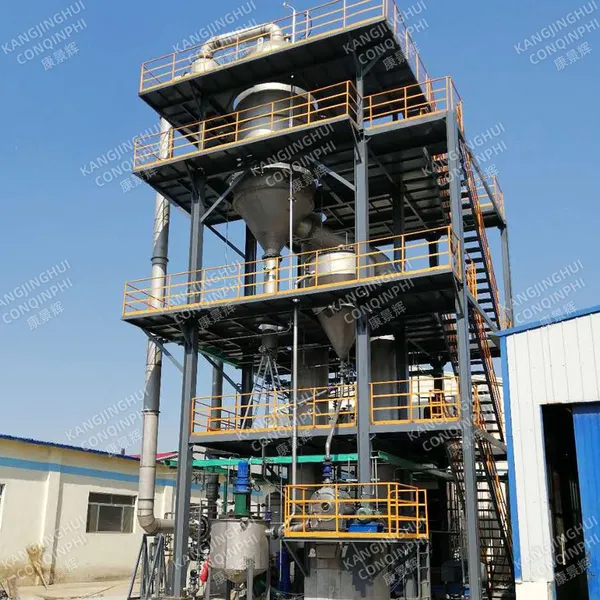

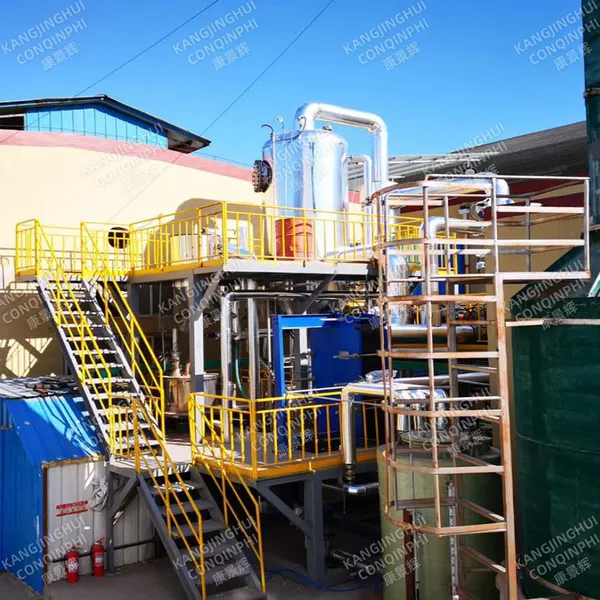

Vacuum Falling Film Forced Circulation Liquid MVR Evaporator High Efficiency
Product Spotlights
Advanced vacuum falling film & forced circulation hybrid design with MVR technology for ultra-low energy consumption. Handles heat-sensitive, viscous, and scaling liquids. Fully automated PLC control. Customizable capacity up to 50,000 kg/h. Certified manufacturer with global export experience and strong after-sales support.
US$ 8650 - 758900
MOQ: 1 Combo
Key Specifications
Get Latest Price
Material:
Other, SS304 / SS316L (Customizable)
Evaporation Capacity:
500 – 50,000 kg/h (Optional)
Operating Voltage:
380V / 415V / Custom
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
60 days
Related Products
-
Carbon Steel Stainless Steel Titanium Vacuum Forced Circulation MVR Multiple Effect Thin Film EvaporatorUS$ 8650 - 758900MOQ: 1 Combo -
Industrial Wastewater Treatment MVR Forced Circulation Crystallization EvaporatorUS$ 8650 - 758900MOQ: 1 Combo
-
Multi-Effect Vacuum Forced Circulation Falling Film MVR Evaporator for Mannitol Lactic Acid Fructose ProcessingUS$ 8650 - 758900MOQ: 1 Combo
-
Multi-Effect Falling Film Vacuum Forced Circulation MVR Evaporator for Wastewater TreatmentUS$ 8650 - 758900MOQ: 1 Combo
-
Forced Circulation MVR Evaporator Skid-mounted Unit for Pharmaceutical Concentration and CrystallizationUS$ 62800 - 8570000MOQ: 1 Combo
Material
Other, SS304 / SS316L (Customizable)
Evaporation Capacity
500 – 50,000 kg/h (Optional)
Operating Voltage
380V / 415V / Custom
Motor Power
As per design
Vacuum Degree
-0.04 ~ -0.09 MPa
Compressor Type
Centrifugal / Roots MVR Fan
Control System
PLC + Touch Screen (Optional)
Application Fields
Chemical, Pharmaceutical, Food & Beverage, Wastewater Treatment
Qingdao Conqinphi Environmental Technology Group Co., Ltd., established in 2015, is a professional manufacturer specializing in high-efficiency evaporation and concentration solutions. With a 10,000–30,000 m² factory and 201–300 skilled employees, we integrate R&D, production, and global sales. Our Vacuum Falling Film Forced Circulation Liquid MVR Evaporator combines the advantages of falling film and forced circulation technologies, driven by mechanical vapor recompression (MVR) to achieve exceptional energy savings. This system is designed to handle heat-sensitive, viscous, or scaling liquids, delivering up to 50% lower operating costs compared to traditional evaporators. Whether you need to concentrate chemical solutions, recover solvents, or treat industrial wastewater, our evaporator offers a reliable and scalable solution.
Key Features and Technical Advantages:
- Hybrid Design: Combines falling film and forced circulation to suit a wide range of liquid properties – ideal for fluids prone to fouling or high viscosity.
- MVR Technology: Mechanical vapor recompression reduces steam consumption drastically; only a small amount of electrical energy is required for the compressor.
- Vacuum Operation: Low-temperature evaporation (40–80°C) preserves heat-sensitive components and minimizes degradation.
- High Efficiency: Heat transfer coefficient up to 1200–2500 W/m²·K, depending on the application.
- Automated Control: Equipped with PLC and touch screen for real-time monitoring of temperature, pressure, flow rate, and concentration.
- Flexible Capacity: Evaporation rates from 500 kg/h to 50,000 kg/h, modular design allows easy expansion.
- Easy Maintenance: CIP (Clean-in-Place) design, quick access for inspection and cleaning.
Technical Specifications (Typical Model):
| Parameter | Value |
|---|---|
| Evaporation Capacity | 5,000 kg/h (customizable) |
| Operating Temperature | 50–80°C (vacuum adjustable) |
| Vacuum Degree | -0.08 MPa |
| Compressor Motor Power | 75 kW |
| Heat Transfer Area | 120 m² |
| Material of Construction | SS316L (contact parts) |
| Power Supply | 380V / 50Hz / 3-Phase |
Customer Benefits:
- Energy Savings: Reduce steam consumption by 60–80% compared to traditional multi-effect evaporators.
- Lower Operational Cost: Minimal chemical consumption, reduced labor due to automation.
- High Product Quality: Gentle evaporation prevents thermal damage, maintains flavor and active ingredients.
- Environmentally Friendly: Closed-loop system reduces emissions and wastewater volume.
- Versatility: Handles acids, alkalis, salts, organic solvents, and food products.
Trust & Reliability:
Qingdao Conqinphi is an experienced manufacturer with an annual export value exceeding US$10 Million – US$50 Million. Our products are shipped to over 20 countries across North America, South America, Europe, Asia, Africa, and Oceania. We hold multiple certifications including ISO9001, ISO14000, OHSAS18001, HACCP, and others, ensuring consistent quality and safety. Our factory spans 10,000–30,000 m² with a dedicated R&D team, enabling rapid prototype and custom design. We offer full after-sales support, including installation guidance, commissioning, and spare parts supply. Choose Conqinphi for a long-term partner in sustainable evaporation.
Frequently Asked Questions:
-
Q: What types of liquids can this evaporator handle?
A: It is suitable for a wide range, including heat-sensitive solutions (e.g., fruit juices, herbal extracts), viscous fluids (e.g., syrups, glue), scaling liquids (e.g., brine, wastewater), and corrosive chemicals (with appropriate material selection). -
Q: How does the MVR system achieve energy savings?
A: The mechanical compressor reuses the latent heat of evaporated vapor, so only a small electrical input is needed to raise the vapor pressure and temperature, eliminating the need for continuous fresh steam supply. -
Q: Can the evaporator be customized for my specific capacity?
A: Yes, we offer evaporation capacities from 500 kg/h to 50,000 kg/h. Our engineering team will design the system based on your feedstock properties and target concentration. -
Q: What is the typical delivery time?
A: Depending on the complexity and size, standard delivery is 30–60 days after order confirmation. Urgent orders can be expedited upon request. -
Q: Do you provide installation and commissioning service?
A: Yes, we offer on-site technical guidance and commissioning support. Remote assistance via video call is also available. -
Q: What materials are used for the wetted parts?
A: Standard wetted parts are made of SS316L. For highly corrosive media, options like duplex stainless steel, titanium, or Hastelloy are available. -
Q: Is the system fully automated?
A: Yes, it features a PLC + HMI touch screen for automatic control of temperature, vacuum, feed rate, and discharge concentration. Manual override is also possible. -
Q: How do you ensure quality control?
A: We follow ISO9001 quality management system. Each unit undergoes strict factory testing, including hydrostatic test, vacuum test, and performance run, before shipment.
