Channel type intelligent cutting machine

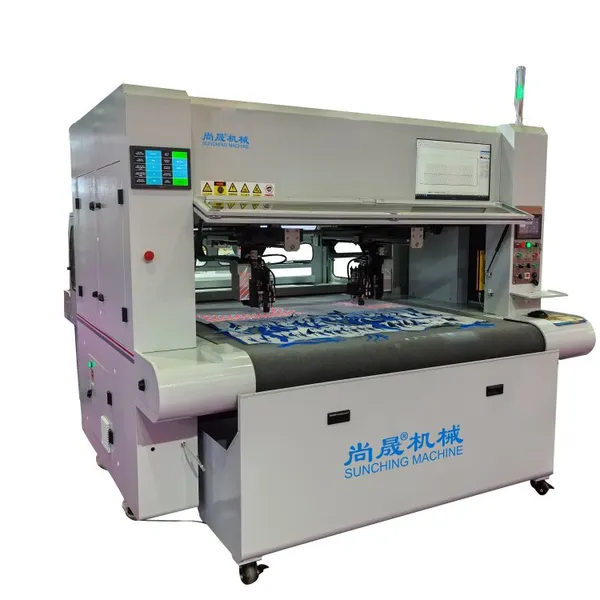

Smart cuter model l sc-B13S is a new generation of efficient intelligent cutting production line which adopts high rigidity heavy table and precision lead screw drive, double crossbeam and double cutting heads to realize cutting,punching.it has advanced technology features of automat i cs m art typeset automatic continuous mate real fee ding perfect seamless cutting at joint position during paging cutting, asynchronously cutting different patterns at the same time, and continuously processing if power of happens. it has advantages of low operating noise, fast calculation rs peed of main control chip, high cutting accuracy,time and material saving, and small machine footprint, which applies to intelligent mass-cutting in industries of garments, sofa, digital printing, advertising, curtain, luggage, shoes and others.
Applications
Applied to a wide variety of flexible ma teiral used in advertising, luggage, shoes, garment and automotive interior and other industries
Workflow
1,Paving 2,Cutting3,Punching4,Print5,Receiving
High performance control system
High precision lead screw drive
Asynchronous control with double cutting heads.
meanwhile cut, punch and draw
HD projection image, working with double projectors
Speedy models
HIGH OUTPUT
CUTTING ACCURACY
ERGONOMICS
SOLIDITY
High production cutting systems perfectto cut footwear and leather goods.
Main technical parameters
The namae
Overall dimension/4500x2415x2020mm
Work area

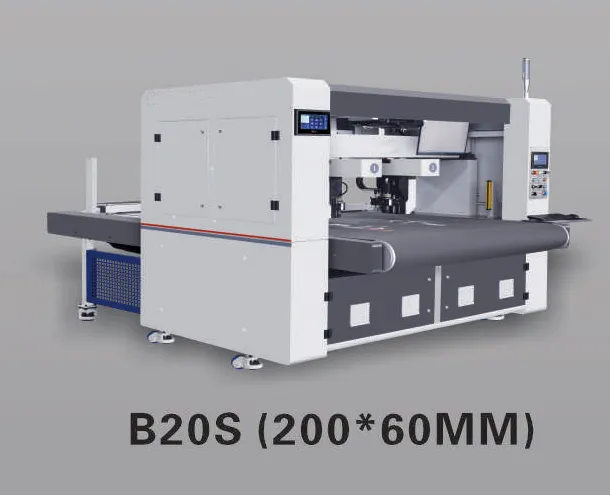

SC-B13S-1600x600mm
SC-B20S-2000x600mm
SC-B27S-2700x600mm
Work platform/+Aluminum alloy honeycomb platform and conveying carpet
Max material processing height/≤10mm(/Dependingon differentmaterial)
Beam height/30mm
Materialfixation method/Vacuum adsorbtion
Max processing speed/72M/Min.
Positioning method/Projection positioning
Repeatable cutting accuracy/±0.2mmguide and Synchronous belt drive
Drive system/Servo motor, Linear
Number of motor/9 Axis
Format of supported files/AI,EPS,DXF,PLT,PDF,JPG,TIF,TPS
Equipment power/4.5Kw
Vacuum pump power/7.8Kw
Capacity/380V/50Hz(3 PHASE)
Net Weight/2200KG
Intelligent typesetting
Designers can set QR code and barcode for cutting file and edit cutting patterns withELS software program, get the reasonable typesetting with intelligent typesetting. Softwarecan lay material automatically according to the size of finished typesetting.
Automatic laying material
As requirement of typesetting, multi-lay and feed material automatically, 10 layersmax., which saves labor time of manual feeding and laying material and improves theproduction efficiency.
Auto cutting
Oscillating knife cuts material of leather and fabric with features of high cuttingspeed, high precision, smooth cutting edge, no yellowing or charring, no dust, no smokeno peculiar smell, more green. Supporting multi-layer cutting for various kinds ofmaterials, self-developed ELS pneumatic oscillating tool has characteristics of highfrequency, high strength and long amplitude stroke and it can cut small marks rapidlyand perfectly. Max. cutting thickness is 10mm, The production efficiency is 4-6 timeshigherthan that of manuallabor.
Auto punching
Die punching technique controlled by servo motor realizes precise positioning andpunching in different size and shapes through replacing the punching molds.
Four punch heads as standard
*Conventionalaperture selection: 2.0/2.5\3.0\3.54.0\4.5mm (used for materials ofaperture within 10mm):2.0/2.513.0\3.5\4.0\4.5mm( 10mm )Unconventionalaperture selection: 1.5/1.8mm(used for materials of aperture within 4mm):1.5/1.8mm(4mm)Customized aperture selection: 1.0/1.2mm (used for materials of aperture within 2mm):1.0/1.2mm(2mm)
Configurations of the equipment
High performance motion control system and TpsCutCAD cutting software support not only asynchronouscutting,punching and heads with high speed and accuracy.but also function of intelligent typeset, automatic materialfeeding,perfect seamless paging cutting.

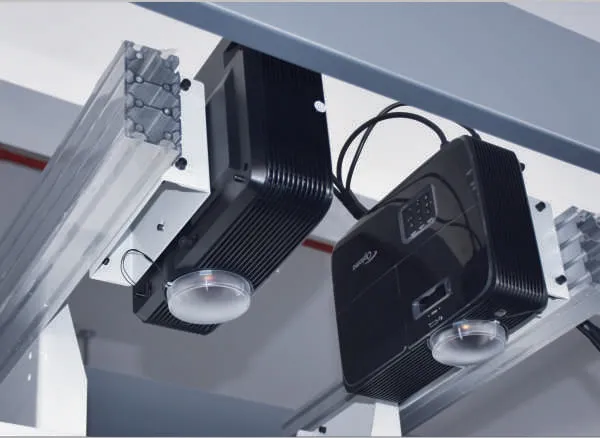

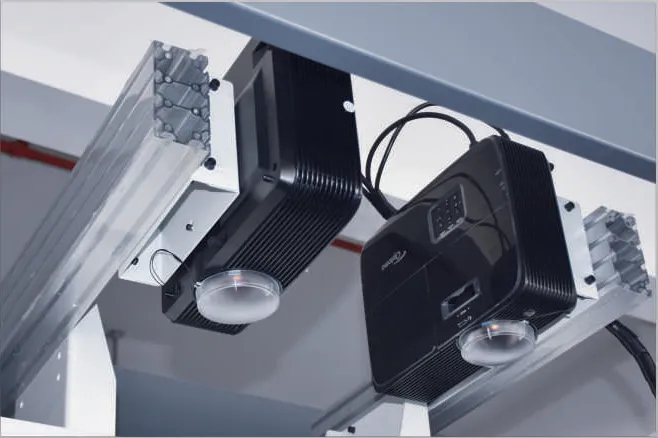

Work with double protectors to get projecting imagesmore clear.The workpieces of different specificationscan be distinguished with different colors in order tomake it easy for users to position cutting and sort outfinished workpieces.
Aluminum alloy cutting head has structure of doublecrossbeam,adopts servo motors control and screw drivewith high precision to realize light load operation, highspeed and low noise.
Curved materialpressure tray realizes cutting materialmore flatly and precisely,lower resistance, without indentation and nicer workpieces.

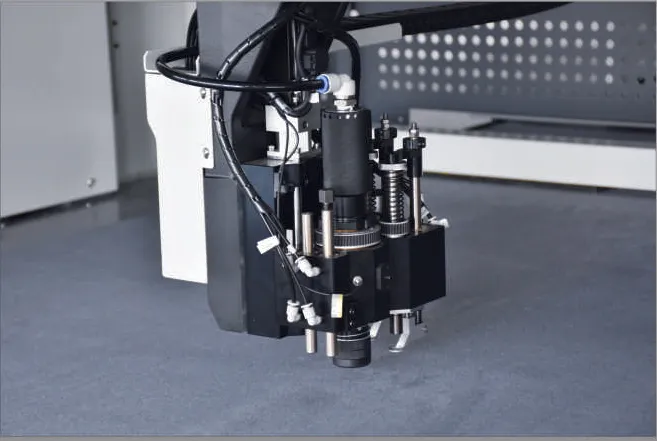

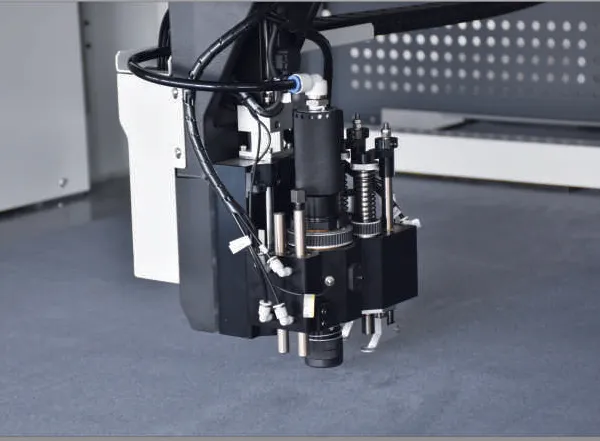

Controlled with double crossbeams and double headsintegrated multi-function cutting head can cut.
Set with light curtain safety sensor in the front of tablewhich is to prevent hurting personnelwhen the equipmentis running
Wide range of models and configurations
