Help CenterProfessional BIA Body Composition Scanner With 8-Electrode Segmental Analysis, 500kHz Multifrequency, 480x272 TFT Display
Product Spotlights
Related Products
-
Full Body Composition Analyzer, 4-Wire BIA, Multifrequency 5-500kHz, 0.1kg Resolution, LED Indicator, CE CompliantUS$ 850 - 1000MOQ: 1 Unit -
Medical Body Composition Analyzer for Nursing Homes & Clinics, Segmental Analysis, Portable, Touch Screen InterfaceUS$ 850 - 1000MOQ: 1 Unit
-
IP65 Waterproof Body Composition Scanner, Stainless Steel Electrodes, 8 Tactile Sensors, Auto Recognition, 1200μAUS$ 850 - 1000MOQ: 1 Unit
-
High-Density Gel Fat Freeze Pads With Protective Membrane for Consistent CoolingUS$ 1MOQ: 1 Unit
-
Anti-freeze Membranes for Cryotherapy Cryolipolysis Fat Freeze TreatmentUS$ 1MOQ: 1 Unit
At Solana (Guangzhou) Beauty Technology Co., Ltd., we take pride in offering cutting-edge health assessment solutions. Our Professional BIA Body Composition Scanner with 8-Electrode Segmental Analysis, 500kHz Multifrequency, 480x272 TFT Display is engineered to deliver precise and comprehensive body composition data. Whether you manage a fitness center, a medical clinic, or a research institution, this device provides the accuracy and detail needed to monitor health progress effectively.
The scanner utilizes 8 strategically placed electrodes to perform segmental analysis, measuring fat, muscle, and water distribution across the arms, legs, and trunk independently. Combined with 500kHz multifrequency bioelectrical impedance analysis (BIA), it ensures deep tissue penetration and minimal error from hydration variations. The 480x272 TFT display offers a clear, vibrant interface for real-time results and easy navigation.
Key Features

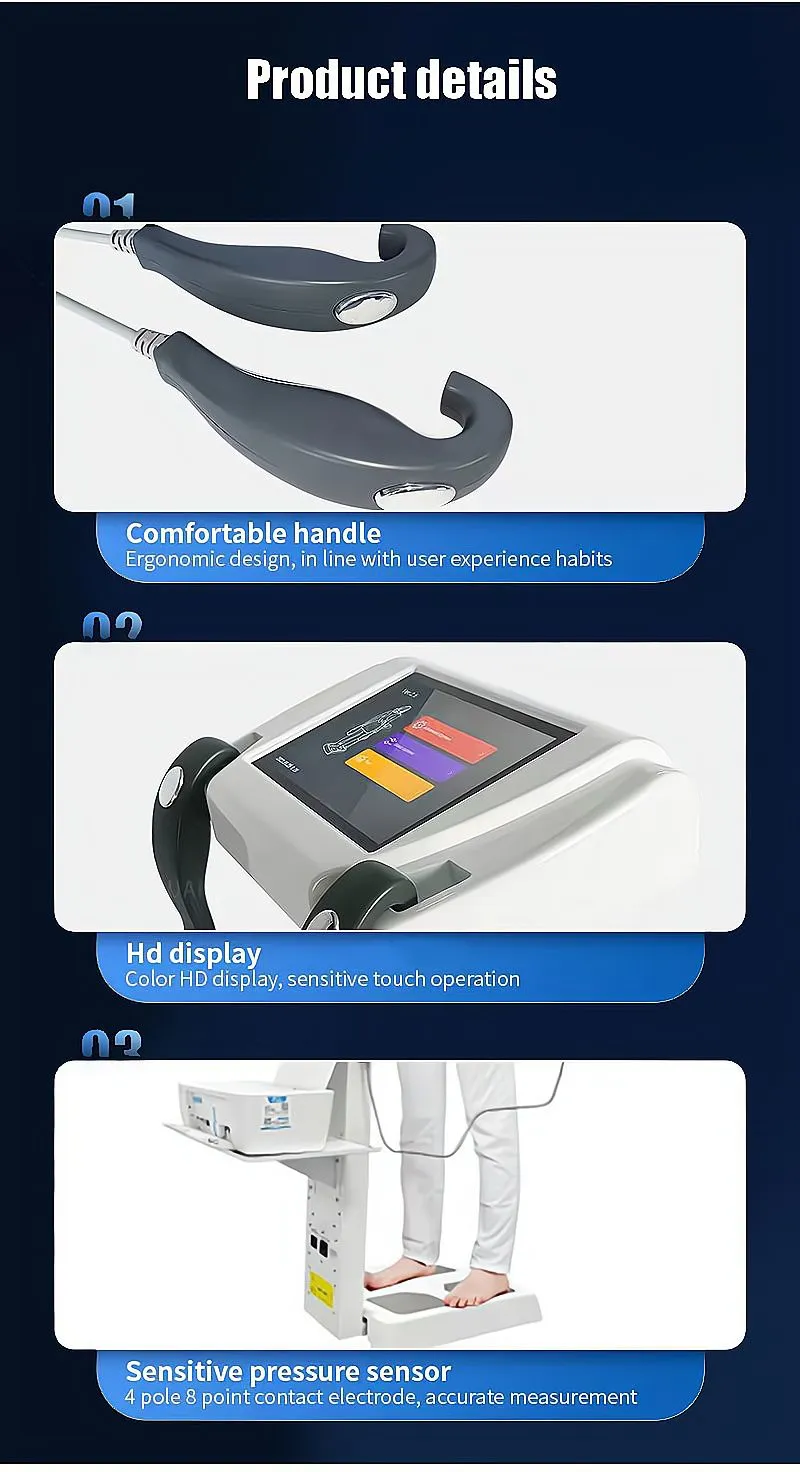

- 8-Electrode Segmental Measurement: Isolates body segments to identify specific imbalances.
- Multifrequency BIA (up to 500kHz): Enhances accuracy by differentiating intracellular and extracellular fluids.
- Large 480x272 TFT Display: Shows detailed charts, graphs, and numeric data.
- Comprehensive Output Parameters: Body fat percentage, muscle mass, bone mass, BMI, visceral fat level, basal metabolic rate, etc.
- User-Friendly Interface: Touchscreen or button control with multi-language support.
- Data Storage & Export: Stores up to 10,000 records; USB/Bluetooth export for PC or mobile apps.
- Durable Construction: ABS body with tempered glass platform for long service life.
Technical Specifications
| Parameter | Detail |
| Measurement Method | Biompedance (BIA) with 8 electrodes |
| Frequency Range | 1 kHz – 500 kHz (multifrequency) |
| Display | 480 x 272 TFT color LCD |
| Weight Capacity | 5 – 250 kg, 2 – 550 lb |
| Age Range | 10 – 99 years |
| Data Memory | Up to 10,000 records |
| Connectivity | USB 2.0, Bluetooth 4.0 (optional) |
| Power | AC 100-240V, 50/60Hz, 15W |
| Dimensions | 300 x 300 x 50 mm (platform) |
| Certification | ISO9001 |
Why Choose Our Body Composition Scanner?
- Clinical-Grade Accuracy: Multifrequency technology reduces interference from body water fluctuations.

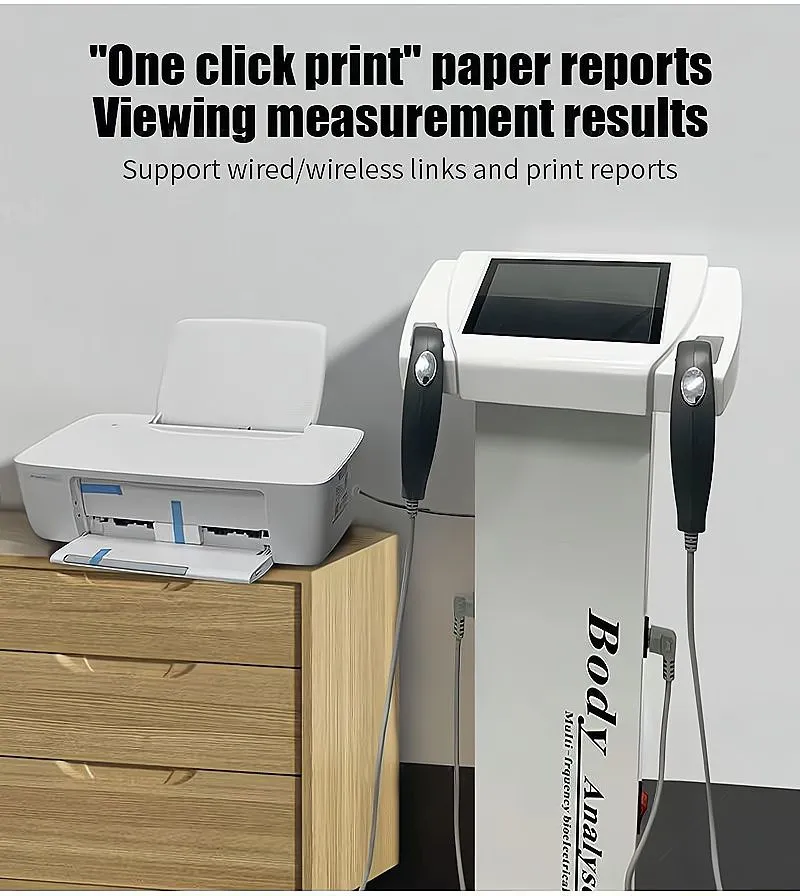

- Efficient Workflow: Fast measurement (under 30 seconds) and immediate printout via optional thermal printer.
- Versatile Application: Ideal for gyms, health clubs, weight loss centers, hospitals, and sports science labs.
- Data Management: Software integration allows long-term trend analysis and patient monitoring.
- Customizable Options: OEM/ODM services available for branding and special requirements.
- Global Compatibility: Multi-language display and voltage adaptability for worldwide use.
With an annual export value of US$50 million to US$100 million, Solana has established a strong presence across North America, South America, Europe, and Asia. Our ISO9001 certified facility ensures consistent quality control, from material sourcing to final assembly. Each scanner undergoes rigorous testing before shipment.
Backed by our experienced team of 5-10 professionals and a factory specialized in health technology, we respond quickly to inquiries and offer competitive pricing without compromising performance. Whether you need a standard model or a tailored solution, we are committed to delivering products that elevate your business.
Frequently Asked Questions (FAQ)
-
How does BIA work to measure body composition?
BIA sends a low-level electrical current through the body via electrodes. The resistance (impedance) encountered varies between fat, muscle, and water. Our multifrequency scanner uses multiple frequencies to differentiate intracellular and extracellular fluids, producing accurate fat and muscle percentages. -
Do users need to remove shoes and socks for the test?
Yes, for optimal electrode contact, users should stand barefoot on the platform and grip the hand electrodes firmly. -
How long does a complete measurement take?
A full scan typically takes 20-30 seconds. Results are displayed instantly on the TFT screen. -
Can the scanner store data for multiple users?

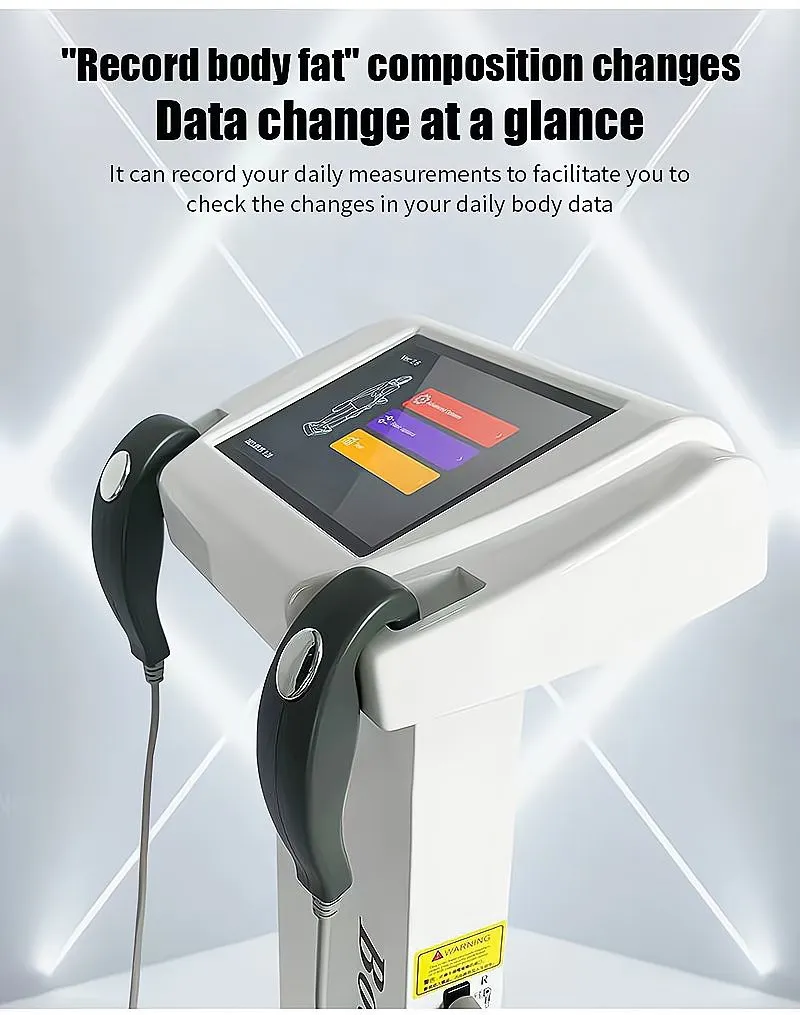

Yes, it can store up to 10,000 records, allowing individual user profiles with historical tracking. -
Is the device suitable for pregnant women or people with pacemakers?
BIA devices are generally not recommended for pregnant women or individuals with implanted electronic devices. Please consult a physician before use. -
What kind of maintenance does the scanner require?
Regular cleaning of the electrode surfaces with a soft cloth and mild disinfectant. Avoid submerging in water. Annual calibration is recommended for clinical settings. -
Do you offer OEM/ODM services?
Yes, we provide OEM/ODM options including custom logo, packaging, and software language. Contact us for minimum order quantities and lead times. -
What is the warranty period?
Our standard warranty is 1 year, covering manufacturing defects. Extended warranty plans are available upon request.
Join thousands of satisfied clients who trust Solana for their body composition assessment needs. Contact us today for a quote or to request a sample.
