What Is Stainless Steel Channel Bar？
Product Definition：

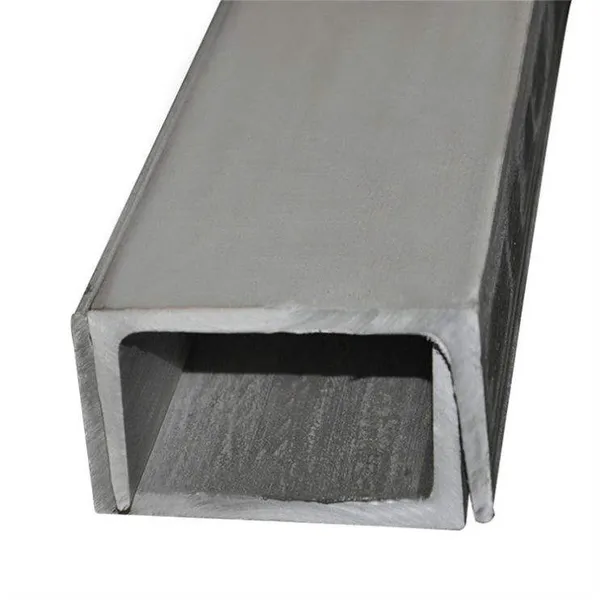

Stainless steel channel bars are long structural products with a U-shaped (or C-shaped) cross-section, consisting of a vertical web and two horizontal flanges-25. This design provides excellent strength-to-weight ratio and structural rigidity, making channel bars the preferred choice for structural framing, guides, tracks, supports, and reinforcement in construction, industrial, and mechanical applications-.
Specification Notation：
Stainless channel bars are specified by（h）×（b）×（d） in millimeters-3.
Example: 120×53×5 = channel bar with 120mm height, 53mm flange width, and 5mm web thickness
Type designation: 12#Types of Stainless Steel Channel Bar：
| Type | Description | Key Characteristics | Typical Applications |
|---|---|---|---|
| Standard / Ordinary Channel | Hot rolled, standard dimensions | Higher strength, thicker sections | Building structures, vehicle manufacturing, industrial equipment-25 |
| Light Channel | Thinner flanges and web | Better economic efficiency, lighter weight-25 | Lightweight steel structures, architectural frameworks-25 |
Key Characteristics：
| Feature | Description |
|---|---|
| Structural Efficiency | U-shape maximizes load-bearing capacity while minimizing weight |
| Corrosion Resistance | Excellent resistance to atmospheric, chemical, and chloride exposure – grade dependent- |
| Versatility | Available in standard and light channel configurations to suit various design requirements |
| Excellent Weldability | Austenitic grades (304, 316) offer superior weldability for fabrication |
| Multiple Manufacturing Methods | Hot rolled or cold drawn – choose based on tolerance and surface requirements |
| Long Service Life | Low maintenance costs compared to carbon steel in corrosive environments- |
| 100% Recyclable | Environmentally friendly with no loss of properties |
Channel Bar vs Other Structural Sections：
| Feature | Channel Bar | Angle Bar | I-Beam |
|---|---|---|---|
| Cross-section | U-shape | L-shape | I-shape |
| Best For | Guides, tracks, framing, supports | Bracing, brackets, corners | Heavy beams, columns |
| Strength-to-Weight | Good | Good | Excellent |
| Typical Use | Medium structures, guides | Light to medium structures | Heavy structures |
Key Specifications – Stainless Steel Channel Bar
| Parameter | Specification / Range | Remarks |
|---|---|---|
| Standards | ASTM A276, A484, A479, JIS G4303, GB/T 1220, DIN | ASTM A276 covers hot-finished or cold-finished shapes including channels- |
| Austenitic Grades | 201, 202, 301, 304, 304L, 304H, 309S, 310S, 316, 316L, 316Ti, 317L, 321, 347 | Most common for structural use-1 |
| Ferritic Grades | 409, 410, 430, 439, 441 | Cost-effective, magnetic |
| Duplex Grades | 2205 (S31803/S32205), 2507 | High strength, excellent SCC resistance |
| Super Austenitic | 904L, 254SMO | Extreme corrosion resistance |
| Precipitation Hardening | 17-4PH (630) | High strength, heat treatable |
| Height (h) – Standard | 50 mm – 400 mm (5# – 40#)-25 | Custom on request |
| Flange Width (b) | 20 mm – 120 mm | – |
| Web Thickness (d) | 3 mm – 16 mm-1 | – |
| Length | 3 m, 4 m, 6 m, 12 m, or custom | Up to 12m standard; longer on request |
| Surface Finish | Black, pickled, 2B, BA, No.4, HL, sandblasted | See Screen 7 for details |
| Condition | HRAP (Hot Rolled Annealed & Pickled)-9 | – |
| Density | 7.70 – 8.00 g/cm³ | Grade dependent |
| Testing | PMI, tensile, hardness, dimensional inspection | Mill cert EN 10204 3.1 |
| Packaging | Steel strapped bundles, wooden pallet | Seaworthy, ISPM 15 |
