Product features:
The principle of efficient mechanical evaporation is to use the mechanical force of special pressure nozzles and super fans to atomize water into micron water droplets and spray them onto the target area; at this time, the relative surface area of fog droplets increases sharply, resulting in rapid evaporation of sewage under natural conditions.According to the evaporation demand of users and the conditions of local temperature, humidity, wind speed, water quality and site, the size, moving speed and direction of water droplets can be controlled, and the influence of many factors such as scaling, suspended solids and salt crystallization on evaporation can be solved. and avoid the spread of salt, so as to ensure that on the one hand, water can be evaporated on a large scale, on the other hand, it can prevent pollution to the environment.
The device forms a diffusive spray by using the reaction force of high pressure water to rotate the fan, which has the advantages of long range, large dust area, fine particles, good uniformity, simple structure, light use, easy installation, low cost and outstanding effect.
Introduction and parameters of evaporation equipment.
The remote spray evaporator can greatly increase the evaporation rate, which is more than 10-14 times that of the ordinary evaporation pond. The equipment has the advantages of compact structure, efficient and stable operation, and can be easily installed and transported. Remote spray evaporator is a low-cost and efficient evaporation method based on evaporation pond, which is the most effective evaporation method for high concentration sewage evaporation treatment at present, with low equipment cost and operation cost, and can greatly reduce the area of evaporation pond.
The main contents are as follows: 1. The whole system of remote spray evaporator is mainly composed of transmission system, filtration system, atomization system, air conveying system and control system.
2. Principle.
After the initial filtration, the high concentration sewage enters the self-cleaning filtration device through the pump, and it is atomized into fine mist droplets by booster pump and atomization nozzle, which is thrown into the air by high-pressure and high-speed air, coupled with the swing in a certain range, the micro-mist droplets can not be evenly divided into the air in the shape of a fan to evaporate. Incomplete evaporation and crystalline particles fall into the evaporation pond because of their own weight.
3. Applicable occasions.
The product is suitable for situations where the site is large and the content of suspended matter in water is low.
4. Model.

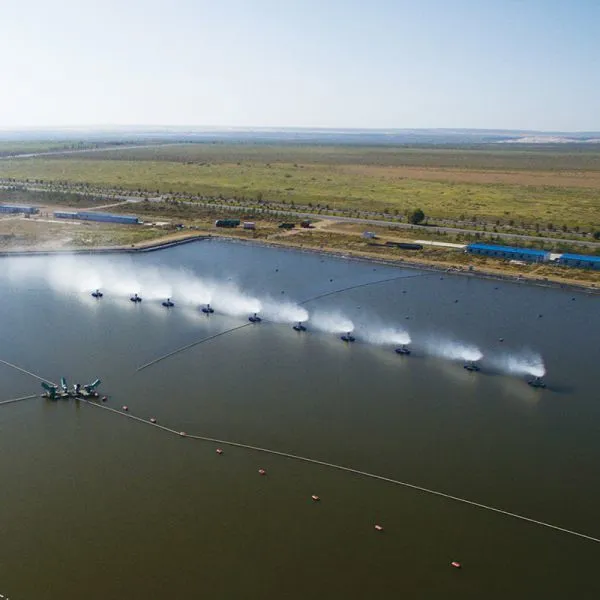

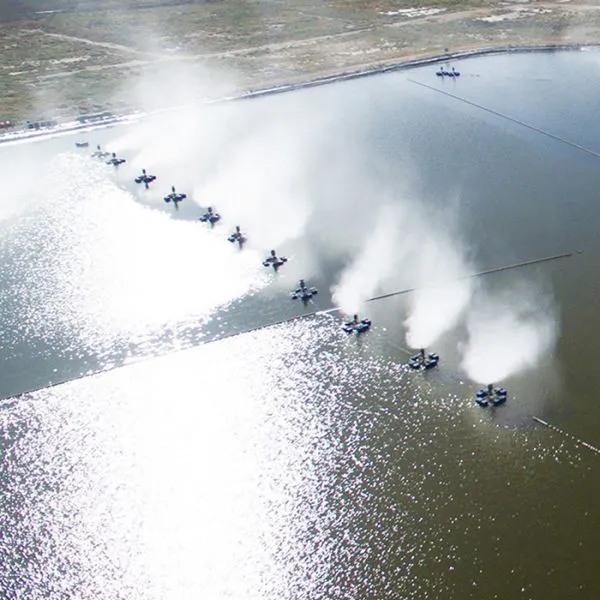

The models are divided into mobile type, fixed type and floating type.
