PRODUCtT PARAMATERS

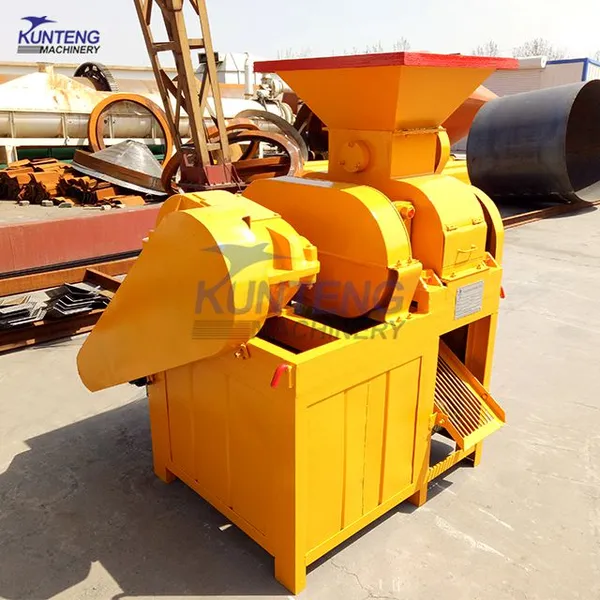

CHARCOAL BRIQUETTE BALL PRESS MACHINE
A ball press is a machine that compresses and shapes materials such as coal powder, charcoal, and mineral powder into shapes that are generally not elliptical or spherical. The two roll extrusion speed is fast, so the output is very high. The final product can be used for barbecue, household, industrial boilers, heating, or other fuels. The finished product specifications generally range from 35mm to 60mm. The equipment can also be used as a hydraulic system, with higher pressure, higher density and firmness of the finished product, and longer combustion time.
MODEL |
ROLLER DIAMETER (mm) |
CAPACITY (T/H) |
POWER (KW) |
REDUCER |
290 |
290 |
1-2 |
5.5-7.5 |
350 |
360 |
360 |
2-3 |
7.5-11 |
350 |
450 |
450 |
4-5 |
18.5-22 |
400 |
550 |
550 |
5-8 |
22-30 |
500 |
650 |
650 |
8-10 |
30-45 |
650 |
850 |
850 |
15-20 |
90 |
850 |
1000 |
1000 |
25-30 |
110 |
1000 |
PRODUCT DETAiLS
In order to make the material into a ball at high pressure, the pre-compression screw of the charcoal ball briquette machine is used to force the material to be formed into the middle of the roller. Due to the constant speed and reverse rotation, the material is compressed and formed. The unit pressure is from small to large until the center line of the roller is "0-0". At this point, the molding unit pressure reaches the maximum value. As the counter roller continues to rotate, the molding pressure continues to decrease, and it enters the ball-off state until the ball is off.
MOD SHAPE
As the final products of the charcoal ball briquette machine, the briquettes ball can be designed of oval shape, egg shape, pillow shape, star shape, square shape etc. In short, that can be any shape that you'd like.
We can control the combustion effect of the charcoal ball briquette machine by adjusting the formula of the binder. In other words, on the one hand, we can keep the burnt briquette in its original shape without spreading, on the other hand, we can also make it burned into ashes.
COMPLETE PRODUCTION LiINE
PROCESSING
The charcoal ball briquette machine making process could follow these steps: Feeding-- crushing---- mixing------ ball pressing------ drying------final product.
COMPaANY INTRODUCTION
The charcoal ball briquette machine will be packed with plastic film or wooden case before shipping in company. Or loaded directly into the container if there is a full production line.
FAQ
Q1： Are you a factory or a trading company?
A1： We are a professional manufacturer in China
Q2： May I know more about the briquette making machine?
A2： Your requirements in details will help us a lot for the information of the briquette making machine. Such as the raw material, the input capacity, the power supply, etc.
Q3： What is the binders used in the briquetting process?
A3： It depends on the properties of the raw material, and also the usage of briquettes. We will provide you with guidance and help.
Q4： How long is the warranty period?
A4： Normally 12 months. Except for wearing parts.
Q5： What’s your delivery time??
A5： We will arrange for shipping in factory within 10 working days after receiving the advance payment. When there are briquette machines in stock, it will be shorter.
