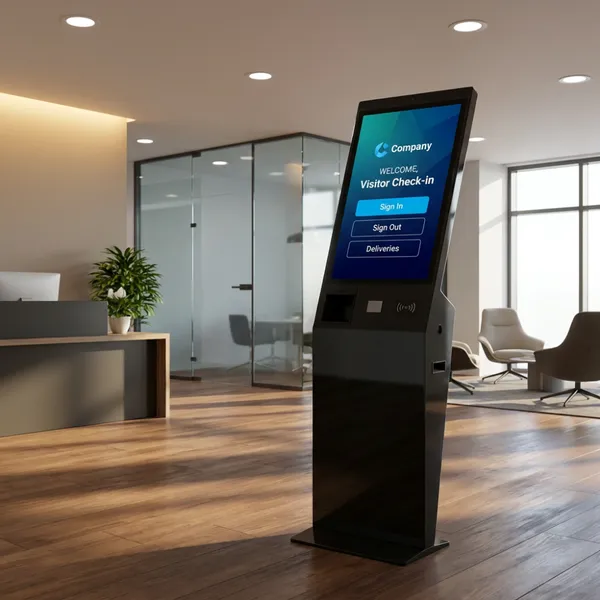

Help CenterAonpos APK838 21.5 Inch Touchscreen Kiosk Intel Core I3 Payment Kiosk All In One Touchscreen Kiosk Parking Lot Self-service Terminal
Product Spotlights
Related Products
-
Aonpos APK01 Touch Touchscreen Kiosk High Performance Self-service Kiosk Cinema Self-checkout MachineUS$ 357 - 377MOQ: 1 Carton -
Aonpos APK02 Touchscreen Kiosk With Thermal Printer Premium Cashless Payment Kiosk Fast Food Self-service TerminalUS$ 332 - 352MOQ: 1 Carton
-
Aonpos APK03 Capacitive Touch Self-payment Kiosk Highly Reliable Touchscreen Kiosk Subway Terminal Ordering TerminalUS$ 425 - 445MOQ: 1 Carton
-
Aonpos AP02 All In One POS Terminal 4GB RAM POS Terminal Windows 11 POS Machine Restaurant POS SystemUS$ 150 - 170MOQ: 1 Carton
-
Aonpos AP03 Smart Pos Capacitive Touch Screen Pos Terminal Cash Register With 58mm Thermal PrinterUS$ 153 - 173MOQ: 1 Carton
1. Screen Parameters
Parameter |
Technical Specifications |
Panel type |
IPS (BOE, Huaxing Optoelectronics, Huike) A grade |
Panel size |
21.5 inches |
Display area |
477.20*268.70mm |
Resolution ratio |
1920(RGB)×1080, FHD |
Viewable Angle |
89/89/89/89 (Typ.) (CR≥10) |
Display the percentage |
16:9 |
Backlight type |
WLED |
Display brightness |
300 cd/m² (Typ.) |
Frame rate |
60Hz |
Support color |
16.7M, 72% NTSC |
Contrast ratio |
1000:1 (Typ.) (transmission / |
Default color temp |
6500K |
Display mode |
IPS, often black, transmissive ( |
Curvature |
Plane |
2. Touch Parameters
Parameter |
Technical Specifications |
Touch technology |
Projective capacitance technology |
Touch solutions |
G+G (Glass + Glass double tempered physical glass |
Touch points |
10 valid touch points |
Touch media |
Finger, gloved hand or capacitive stylus |
Touch precision |
≤2mm |
Response time |
≤6ms |
Driving modes |
Drive-free, auto-calibration and configuration |
Touch interface |
USB (Type-A standard protocol) |
Plate treatment |
AG (Anti-Glare) + AF (Anti-Fingerprint) nano coatings |
Surface hardness |
≥6H |
Working voltage |
5V |
Output mode |
Coordinate output |
3. Motherboard Configurations
Spec Group |

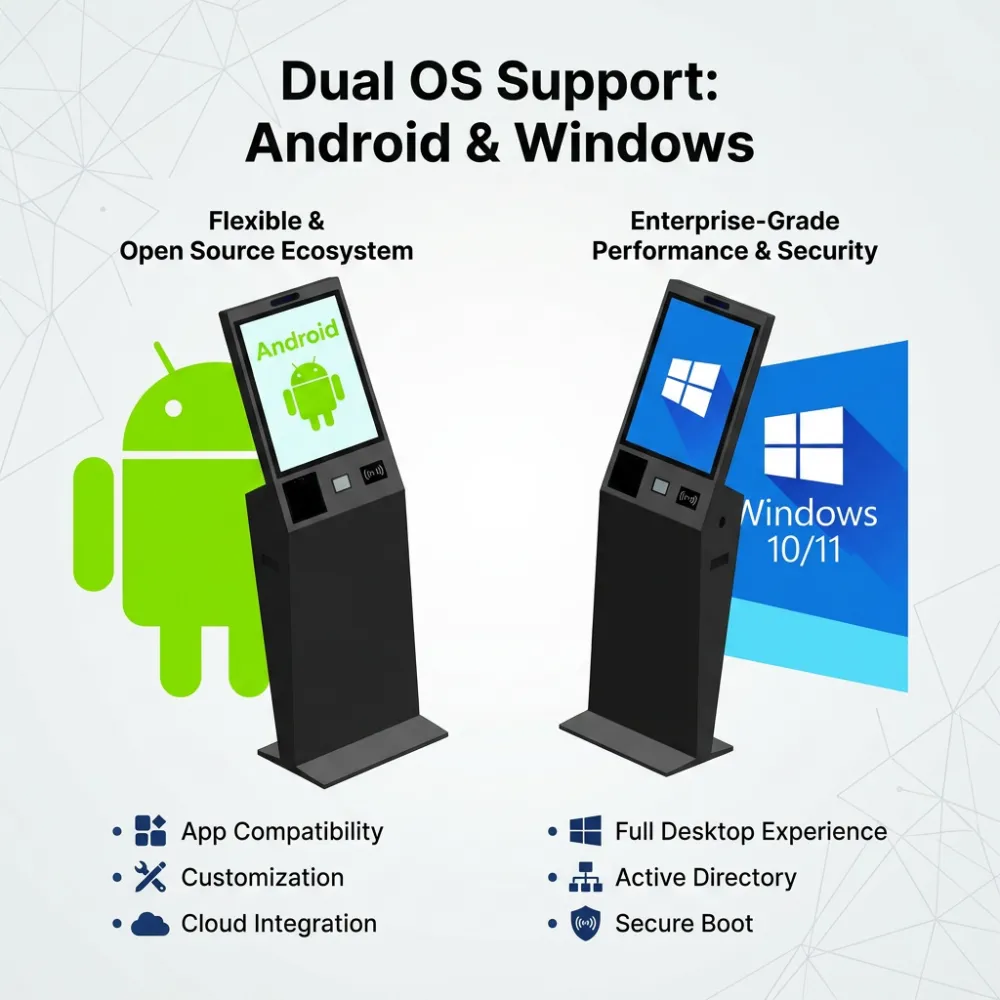

Android |
Windows |
Operating system |
Android |
Windows |
System version |
Android11 stable system |
Windows 10 / Windows 11 |
Mode of operation |
Capacitive touch |
Capacitive touch |
CPU |
Four-core ARM Cortex-A55 |
Intel Core i5 (High Concurrency Dual Core) |
Internal storage RAM |
DDR 4GB |
DDR 8GB |
Memory ROM |
SSD 32G |
128G / 256G (Customizable) |
Network support |
WIFI-2.4G/5G, RJ45 physical port, 4G cellular global support |
|
HDMI |
1 HDMI interface output group |
|
USB |
1 * USB-3.0, 1 * USB-2.0, multi-OTG expansion |
1 * USB-3.0, 2 * USB-2.0, high-speed output lines |
Network interface |
RJ45 10/100M/1000M network adaptive port |

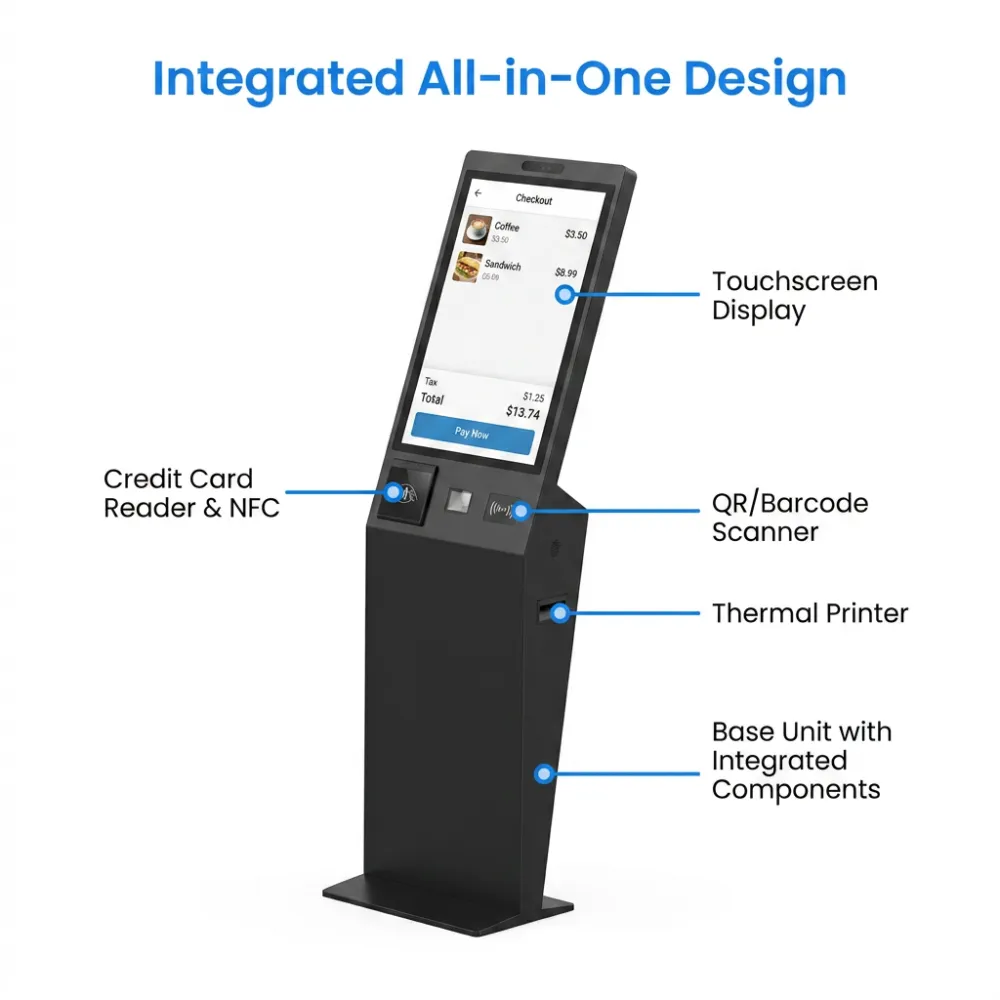

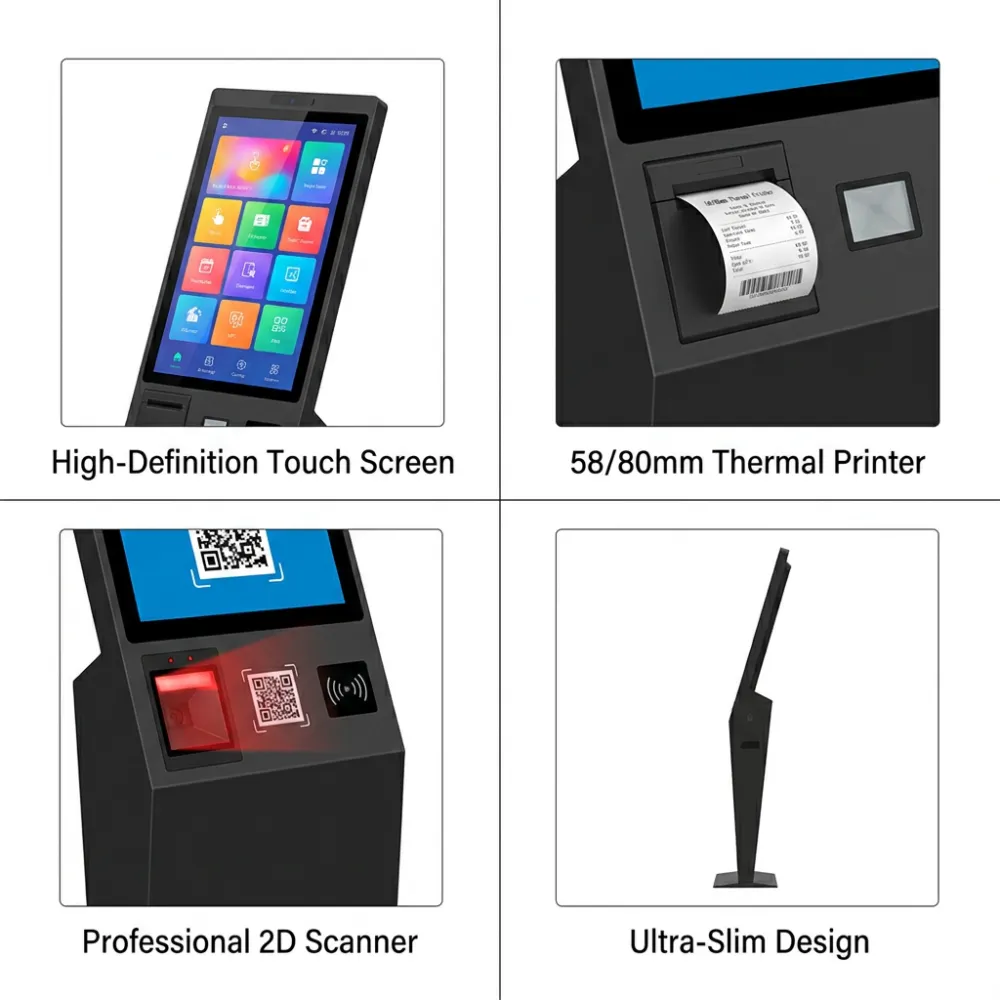

4. Selecting Modules
Module |
Property |
Specifications Details |
Camera |
Optical dimensions |
1/2.7" inch CMOS progressive scan sensor |
Sensor resolution |
1920 (H) x 1080 (V) |
|
Maximum frame rate |
30fps@1080P |
|
Printer |
Printing method |
Thermal direct line point printing |
Print out rate |
Max: 180mm/s high-speed printing |
|
Resolution ratio |
203dpi (8 dots/mm) |
|
Print span |
72mm |
|
Slicer |
Full cut and half cut supported with anti-jam sensor |
|
canner |
Imaging sensor |
640 (horizontal) x 480 (vertical) CMOS shutter |
Illuminant |
White light fill-in LED with red laser scan frame |
|
Code reading system |
QR Code, PDF417, DataMatrix (ECC200), UPC, EAN13, Code128, Code39 |
|
Reading angles |
Rotate 360°, tilt ±60°, deflection ±60° |
|
Know depth of field |
EAN-13: 2 ~ 11.0cm (13mil), Code-128: 2.5 ~ 13.0cm (15mil) |
|
Recognition accuracy |
One-dimensional code: ≥5mil, QR code: ≥10mil |
|
Card reader |
Product model |
XELC-STD335TI, XELC-STD335RI |
External interface |
Serial port (TTL level/RS232 level optional, direct connection) |
|
Support cards |
Non-contact cards: Mifare One S50/S70, Mifare UltraLight NTAG213/215/216 |
|
Sensing distance |
0 ~ 5.0cm under standard size card 85.6mm×54mm conditions |
|
Motorized EMV Card |
EMV L1 & L2 certified motorized reader/writer |
EMV |
PCI EPP Keypad |
PCI certified encrypted pin pad, stainless steel |
PCI |
Cheque Scanner |
High-performance MICR code scanning validation (Optional) |
5. Body Parameters
Parameter |
Specifications Details |
Body color |
White & black (or fully customized powder coating) |
Border material |
Aluminum alloy structure |
Machine physique |
Sheet metal (heavy-duty zinc-coated physical casing |
Surface material |
AG/AF physical tempered glass with Mohs 6H hardness |
Speaker (Suona) |
Integrated high-fidelity Dual-Chamber Speakers (4Ω 5W * 2) |
LCD screen size |
21.5 inches |
Body dimensions |
1750 * 600 * 520mm |
Net/moist weight |
80.12/98.35KG |
Packaging material |
Neutral heavy-duty 7-layer carton with thick pearl cushion |
Service environment |
Temperature -15℃ ~ 55℃ / Humidity 10%RH ~ 90%RH |
Storage environment |
Temperature -20℃ ~ 60℃ / Humidity 10%RH ~ 90%RH |

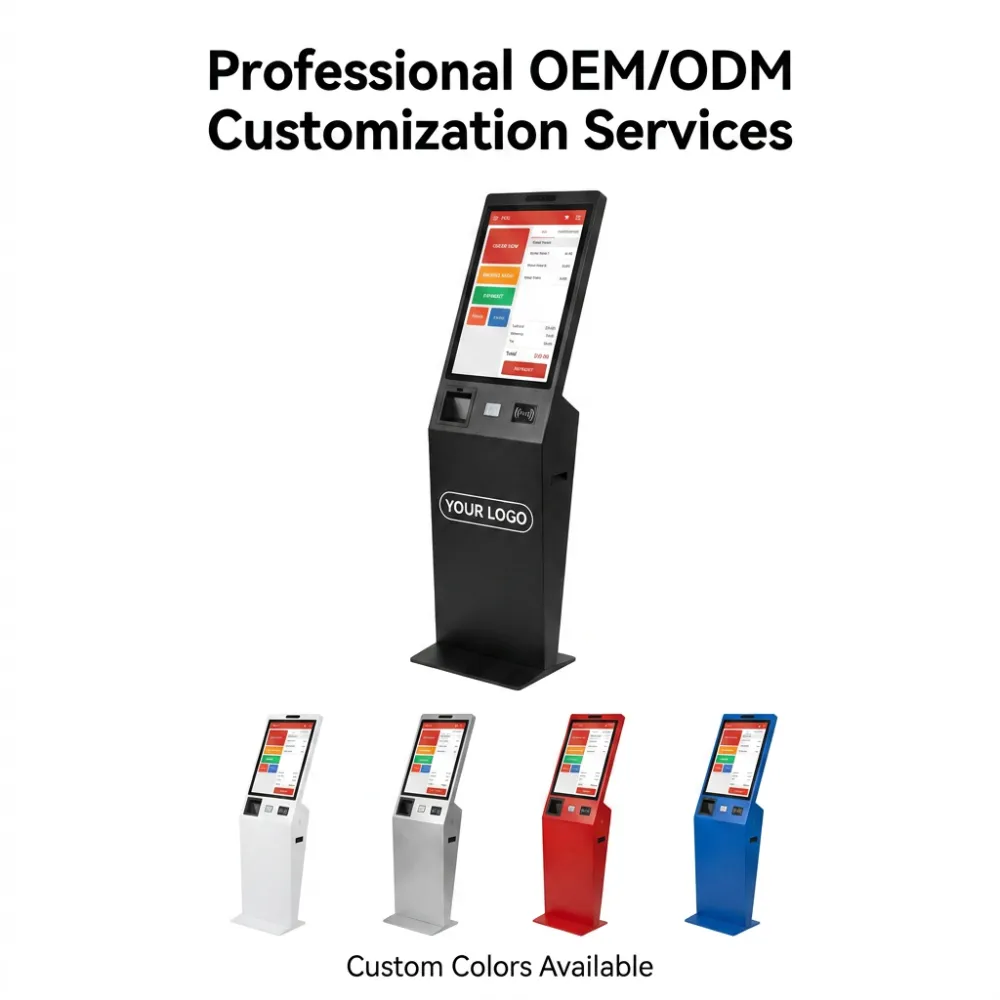

1.Deep Customization Services (OEM / ODM Customization)
We offer highly flexible customization solutions for international buyers, empowering clients to build distinctive brand moats in their local markets:
—Logo Printing
Support screen-printed logos on device bodies, custom boot-up logo screens, and personalized packaging boxes.
—Optional Hardware Modules
Thermal Printer: Support Upgrade to an 80mm wide-format auto-cutter thermal printer
Wireless Communication: Support Pre-install built-in 4G LTE module with SIM card slot
Security Verification: Support Integrate high-precision facial recognition camera, NFC or RFID card readers
Audio Interaction: Support Equip with built-in dual-channel high-fidelity stereo speakers

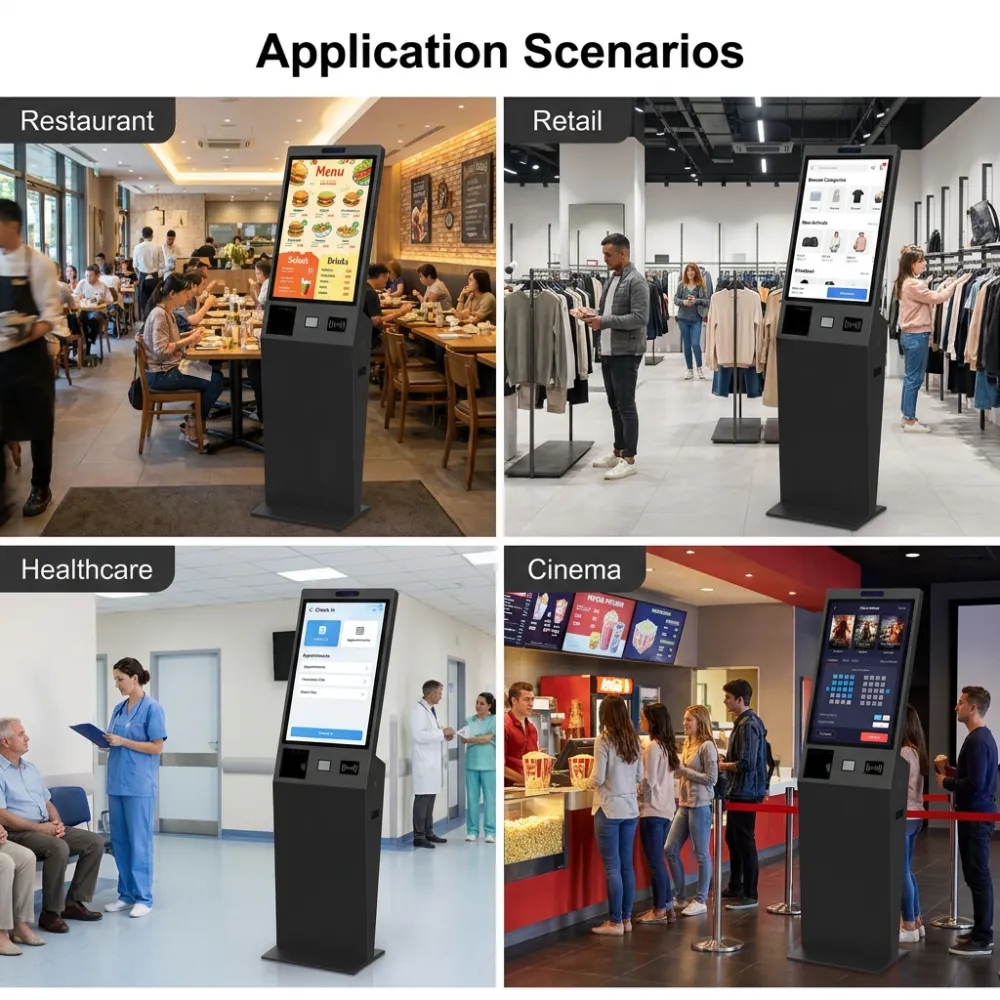

2.Extensive Commercial Application Scenarios
Boasting outstanding stability, this self-checkout kiosk is well-suited for nearly all offline retail and food service scenarios:

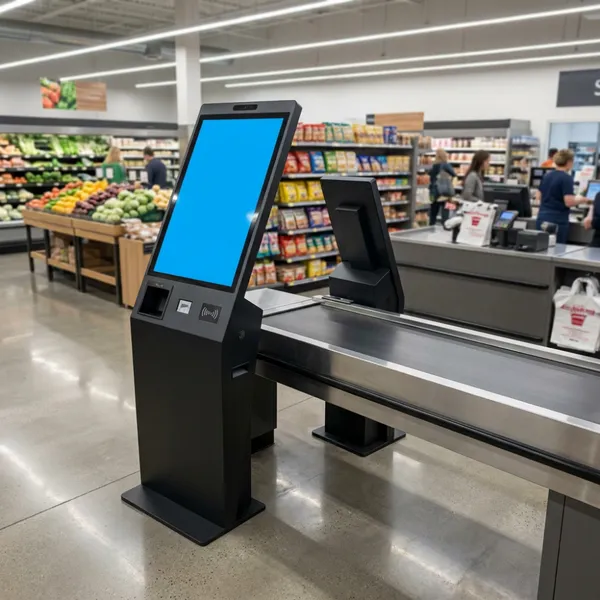

New retail stores, convenience stores & boutique apparel shops: Barcode scanning and payment settlement for merchandise
Smart restaurants, Chinese & Western fast food outlets, tea and coffee shops: Self-service menu browsing, order storage, QR code payment

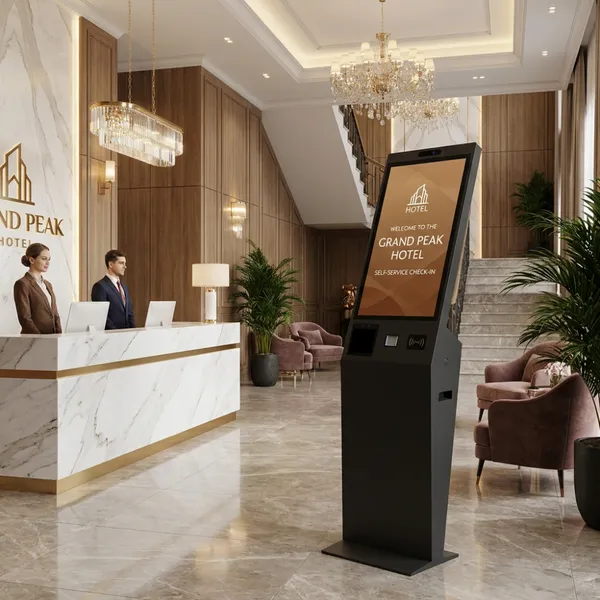

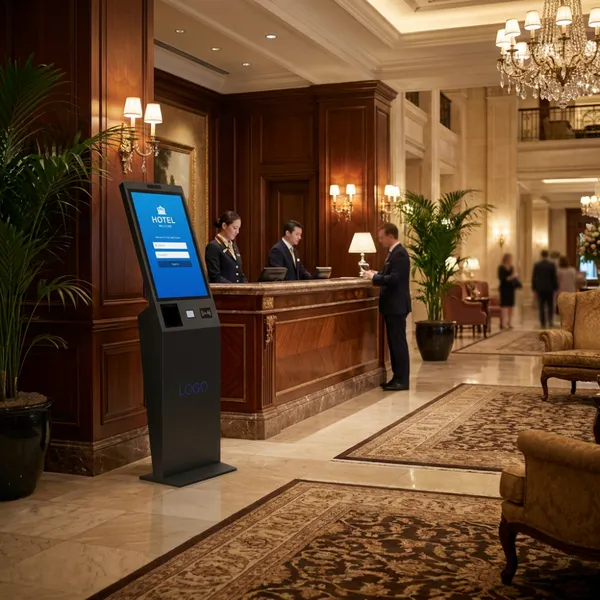

Hotels, government service halls & ticketing centers: Self-registration, queue number collection, ticket printing, verification and receipt issuance
3.Certifications
CE/FCC/ROHS/3C/RoHS Certification
4.Our Markets
1. European Market – High Penetration & Strictly Regulated Compliant Market
Covered Countries
Western & Central Europe: Germany, France, the United Kingdom, the Netherlands, Belgium, Switzerland, Austria, Luxembourg
Southern & Eastern Europe: Italy, Spain, Portugal, Greece, Poland, Czech Republic, Hungary
Northern Europe: Sweden, Norway, Denmark, Finland (Nordic countries feature an extremely high cashless adoption rate, driving robust demand for self-service terminals)
Foundational Compatibility
---Certification & Compliance
The complete machine holds CE certification and complies with RoHS environmental standards, fully meeting mandatory customs clearance and market access requirements across Europe.
---Power Grid Adaptation
Compatible with European standard 220V–240V voltage and 50Hz frequency; perfectly fits EU and UK standard power plugs.
---Payment Integration
Windows and Android operating systems support deep integration with Europe’s dominant payment methods, including Visa/Mastercard credit cards, plus mobile wallets such as Apple Pay and Google Pay.
2.North American Market – High-Demand Market for Commercial Chains & Self-Checkout Solutions
Covered Countries
United States, Canada, Mexico
Core Qualifications
Certification & Compliance
The whole unit is FCC certified, complying with wireless communication and electromagnetic compatibility standards set by the US Federal Communications Commission.
Power Grid Adaptation
The power adapter supports North America’s 110V–120V voltage standard, with US-style plugs available as an option.
Application Scenarios
Perfectly caters to strong market demand in regions with high labor costs, including convenience stores, big supermarkets and Quick Service Restaurants (QSRs) across the United States.
3.Southeast Asian Market – Booming Market for Smart Retail & QR Code Payments
Covered Countries
Singapore, Malaysia, Thailand, the Philippines, Vietnam, Indonesia
Core Adaptations
Power Grid Compatibility
Most countries across the region operate on 220V voltage. We supply UK standard plugs for Singapore and Malaysia, alongside dual-round, dual-flat and other region-matching plugs.
High Compatibility with QR Payments
This kiosk is equipped with a high-performance built-in 2D barcode scanner, fully compatible with the rapidly expanding mobile QR payment systems prevalent across Southeast Asia, including Singapore’s PayNow, Malaysia’s DuitNow, Thailand’s PromptPay and Indonesia’s QRIS.
4.Developed Asia-Pacific & Oceania Markets – Market with High Demand for Convenience and Self-Service
Covered Countries
Japan, South Korea, Australia, New Zealand
Core Advantages
High Market Acceptance
Japan, South Korea, Australia and New Zealand face extremely high labor costs. Consumers here rank among the world’s most receptive and proficient users of self-checkout services.
Hardware Compatibility
The equipment adapts to Japan’s power grid (100V, 50/60Hz) and the 230V standard for Australia and New Zealand. It achieves seamless integration with various local POS and catering software systems.
5.Emerging Markets in the Middle East & Latin America – Markets for Smart City Upgrading and New Retail Chain Expansion
Covered Countries
Middle East: UAE (Dubai/Abu Dhabi), Saudi Arabia, Qatar, Kuwait
Latin America: Brazil, Chile, Colombia, Peru
Core Adaptations
Wide voltage support: The 110V–240V wide voltage design effectively resolves pain points including unstable power supply and dual voltage standards across parts of Latin America (e.g., some regions in Brazil use 110V while others adopt 220V).
