As a professional manufacturer with nearly a decade of experience, Anping Wanglai Wire Mesh Products Co., Ltd. specializes in providing reliable and efficient fastening solutions for the global construction and industrial sectors. Our Multi-Purpose Metal Insulation Nails are engineered to deliver superior performance in securing various insulation materials, from fiberglass and rock wool to foam boards and reflective barriers. With a factory spanning 5,000-10,000 square meters and a dedicated team, we ensure consistent quality and timely delivery for projects of any scale, serving diverse markets worldwide.
These nails are not just simple fasteners; they are critical components that ensure the long-term integrity and energy efficiency of insulation systems. A failed fastener can lead to insulation sagging, thermal bridging, and significant energy loss. Our product is designed to prevent these issues, offering a robust and corrosion-resistant solution that withstands harsh environmental conditions and maintains its holding power over time.
Core Product Features & Technical Advantages:
Versatile Material Options: Available in electro-galvanized steel for standard applications and AISI 304/316 stainless steel for highly corrosive environments (e.g., coastal areas, chemical plants). This choice allows for cost-effective solutions without compromising on durability.
Optimized Head Design: The large, flat washer head provides an excellent bearing surface, distributing pressure evenly to prevent insulation material tear-through. The dome head variant is ideal for applications requiring a lower profile.
Enhanced Grip Shank: We offer both smooth shanks for quick installation into pre-drilled substrates and fully or partially threaded shanks for superior pull-out resistance in concrete, masonry, and metal substrates.
Precision Engineering: Manufactured from high-tensile wire, our nails are straight, with consistent diameter and sharp, self-piercing points that facilitate easier and faster installation, reducing labor time and cost.
Corrosion Protection: The galvanized coating is applied uniformly to provide a sacrificial layer, significantly extending the service life of the nail and, by extension, the insulation system it secures.
The primary benefit for contractors and project managers is system reliability. By using a nail specifically designed for insulation, you minimize the risk of callbacks, repair work, and performance degradation of the building envelope. This translates directly into lower lifetime costs for the building owner and enhanced reputation for the installer.
Common Technical Specifications & Configurations:
Product Name |

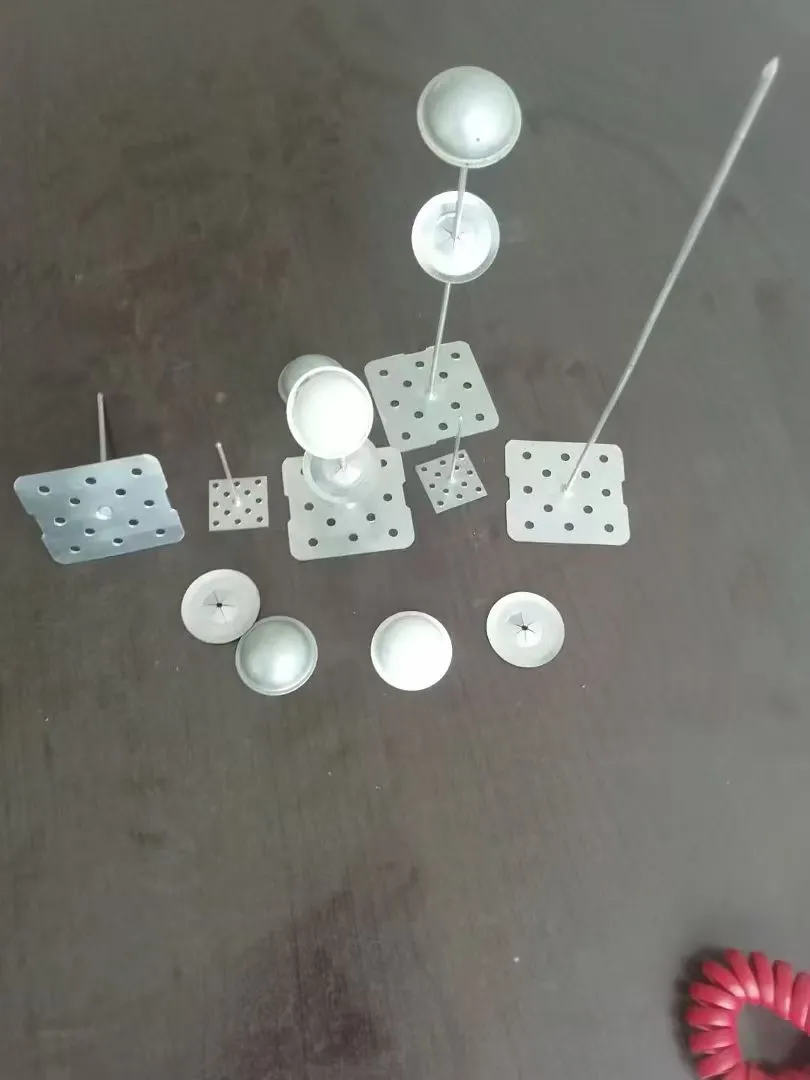

Insulation Pins With Perforated Base Plate |
Texture |
Baseplate: Tinned iron sheet, Low Carbon Steel |
Square size |
25*25mm,30*30mm,50*50mm |
Length |
20mm~300mm |
Washers |
Self - locking washers are available in a variety of sizes, Shapes. and materials |
Application-Specific Guidance:
Exterior Wall Insulation (ETICS): Use longer, galvanized nails with washer heads. The length must penetrate through the insulation and adhesive layer into the structural substrate by a minimum specified depth (e.g., 25mm into concrete).
Industrial Pipe & Duct Insulation: Shorter nails with dome heads are often preferred. Stainless steel is recommended for high-temperature or outdoor piping to resist thermal cycling and moisture.
Roof Insulation: Critical for wind uplift resistance. A combination of proper length, diameter, and installation pattern is essential. Consultation for specific project requirements is available.
-
Acoustic Insulation Panels: Smooth shank nails can be used for temporary or removable installations, while threaded shanks provide permanent, vibration-resistant fixing.
Choosing our Multi-Purpose Metal Insulation Nails means partnering with a supplier that understands the intricacies of global construction standards. Our ISO9001 certification is a testament to our commitment to a managed quality process, ensuring every batch meets consistent performance criteria. With an annual export value reflecting our international reach and a logistical network capable of shipping via the Port of Tianjin to markets across North America, Europe, Asia, and beyond, we are positioned to be your reliable, long-term sourcing partner. Let our expertise in wire and fastening products bring durability and efficiency to your next building or industrial insulation project. Contact us today to discuss your specifications, request samples, or obtain a competitive quotation.
Frequently Asked Questions (FAQ):
Q: How do I determine the correct nail length for my insulation?
A: The nail length should equal the thickness of your insulation material plus the required embedment depth into the base substrate (typically 25-30mm for solid substrates like concrete). For example, for 80mm thick insulation on a concrete wall, a 110mm nail is commonly used.Q: What is the difference between electro-galvanized and hot-dipped galvanized nails for insulation?
A: Electro-galvanizing provides a thinner, smoother zinc coating suitable for standard indoor or protected outdoor applications. Hot-dipped galvanizing applies a thicker, more robust coating, offering enhanced corrosion resistance for long-term outdoor exposure or in humid environments.Q: Can these nails be used with a pneumatic nail gun?
A: Yes, many of our nails are compatible with specific insulation nail guns. It is crucial to match the nail shank diameter and head type to the tool's specifications. We can provide guidance on tool compatibility for our product range.Q: Do you offer custom lengths or head configurations?
A: Absolutely. As a manufacturer, we have the flexibility to produce nails in non-standard lengths, unique head designs, or with special markings. Minimum order quantities apply for custom specifications.Q: What packaging options are available for large construction projects?
A> We offer various packaging to suit project needs: standard 25kg cartons for easy palletizing, bulk 500kg or 1000kg sacks for major sites to reduce packaging waste, and even custom-labeled boxes for specific contractor requirements.Q: How does the pull-out resistance of your threaded nails compare to smooth shank nails?
A: Threaded shank nails generally exhibit significantly higher pull-out resistance, as the threads mechanically lock into the substrate material. This makes them the preferred choice for applications subject to vibration, wind loads, or where the insulation may bear slight weight.Q: Are these nails suitable for securing insulation to metal decks or profiled sheets?
A: Yes, they are commonly used for this purpose. The key is to ensure the nail length is sufficient to penetrate the metal deck and achieve proper anchorage, and the point is sharp enough to pierce the metal. Stainless steel is often recommended to prevent bimetallic corrosion.
