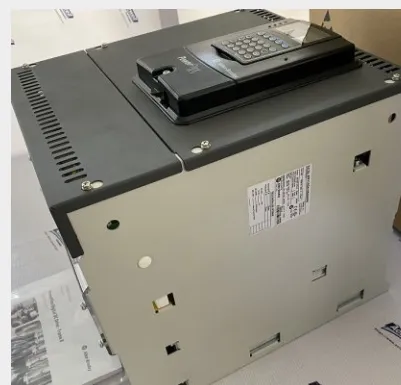

As a reliable supplier with over a decade of industry experience, Rossonix Co., Limited is proud to offer the Allen-Bradley PowerFlex 400 inverter, model 22C-D260A103. This robust 132kW drive is engineered to deliver precise motor control, enhance energy efficiency, and ensure reliable operation in demanding industrial environments. Our commitment to quality, backed by ISO9001 certified processes, ensures you receive a product that meets high standards for performance and durability. We understand the critical need for dependable automation components, and the PowerFlex 400 series stands as a proven solution trusted by professionals worldwide.
The AB PowerFlex 400 22C-D260A103 inverter is a versatile and powerful component designed for controlling three-phase AC motors. Its core value lies in optimizing motor performance, which translates into significant operational benefits for your business.
- Enhanced Process Control: Advanced algorithms provide smooth starting, stopping, and speed regulation, reducing mechanical stress on motors and driven equipment.
- Substantial Energy Savings: By matching motor speed to the actual load requirements, especially in variable torque applications like fans and pumps, this inverter can dramatically cut energy consumption.
- Reduced Maintenance Costs: Features like controlled acceleration/deceleration minimize wear on belts, gears, and bearings, extending the lifespan of your entire mechanical system.
- Improved System Protection: Built-in safeguards protect against overloads, short circuits, and phase loss, helping to prevent costly downtime and equipment damage.
Technical Specifications & Key Features:
The following table outlines the primary technical parameters of the 22C-D260A103 model:
| Parameter | Specification |
| Product Series | PowerFlex 400 |
| Full Model Code | 22C-D260A103 |
| Rated Power | 132 kW / 177 HP |
| Output Current | 260 A |
| Input Voltage | 3-Phase, 480 VAC (±10%) |
| Output Voltage | 0 to Input Voltage, 3-Phase |
| Control Modes | Volts per Hertz (V/F), Sensorless Vector Control |
| Enclosure | IP20 (Chassis Type, typical) |
| Key Programming Features | Multiple preset speeds, programmable acceleration/deceleration ramps, current limit, slip compensation |
| Communication Capability | Optional communication modules (e.g., for integration into Allen-Bradley networks) |
Beyond the base specifications, this drive offers several operational advantages. The Sensorless Vector Control mode provides improved low-speed torque and better speed regulation compared to standard V/F control, making it suitable for applications requiring higher performance. Its user-friendly interface, often via a removable keypad, simplifies setup, monitoring, and troubleshooting. The design also emphasizes reliability with robust construction to withstand typical industrial electrical noise and environmental conditions.
Frequently Asked Questions (FAQ)
-
Q: What is the primary application for this specific PowerFlex 400 model?
A: This 132kW, 260A model is ideally suited for controlling large three-phase motors in industrial settings such as water treatment plants (high-power pumps), HVAC systems (large fans), mining conveyors, and industrial processing machinery. -
Q: Does this inverter come with a built-in display or keypad for programming?
A: The PowerFlex 400 chassis units typically require an optional Human Interface Module (HIM) for local programming and display. This HIM can be purchased separately and is often plug-and-play, allowing for flexible mounting. -
Q: Can I integrate this drive into my existing Allen-Bradley PLC control system?
A: Yes, integration is a key strength. By adding optional communication adapter modules (like DeviceNet, EtherNet/IP, or serial), this PowerFlex 400 drive can seamlessly communicate with Allen-Bradley Logix controllers and other compatible devices for centralized control and monitoring. -
Q: What are the mounting and enclosure considerations?
A: The 22C-D260A103 is supplied as a chassis (IP20 rating). It must be installed in a suitable industrial enclosure (like a NEMA/UL Type 1 or 12 cabinet) to provide protection against dust, moisture, and accidental contact, per local electrical codes. -
Q: Are braking resistors or filters included?
A: Standard units do not include braking resistors or line/load reactors. These are often optional accessories required for specific applications, such as rapid deceleration or mitigating harmonic distortion, and can be sourced separately based on your system needs. -
Q: What kind of warranty or technical support is available?
A: As an authorized trading company, Rossonix provides the manufacturer's standard warranty. We also offer pre-sales technical consultation and can connect you with regional support resources for installation and troubleshooting guidance. -
Q: Is this model suitable for use on a 50Hz or 60Hz power supply?
A: The PowerFlex 400 is designed for a wide input frequency range, typically accommodating both 50Hz and 60Hz systems, which is confirmed by its 480VAC input specification. Always verify the exact nameplate data for your specific unit. -
Q: Do you provide custom firmware or parameter pre-configuration?
A: While we supply standard catalog items, basic parameter pre-configuration based on your motor nameplate data and application requirements may be available upon request. Please inquire with your specific needs.
Choosing Rossonix as your partner for the AB PowerFlex 400 inverter means aligning with a supplier that has a solid track record. Established in 2011 and serving a global clientele across North America, Europe, Asia, and Oceania, we have built our reputation on consistent quality and reliable service. Our annual export value reflects the trust placed in us by businesses worldwide. With ISO9001 certified quality management, we ensure that every product, including this high-performance inverter, is handled with professional care. Supported by strategic shipping points in Shenzhen, Hong Kong, and Europe, we facilitate efficient logistics to get your critical components on site without delay. Invest in the proven reliability of Allen-Bradley automation and the dependable supply chain of Rossonix to power your operational success.
