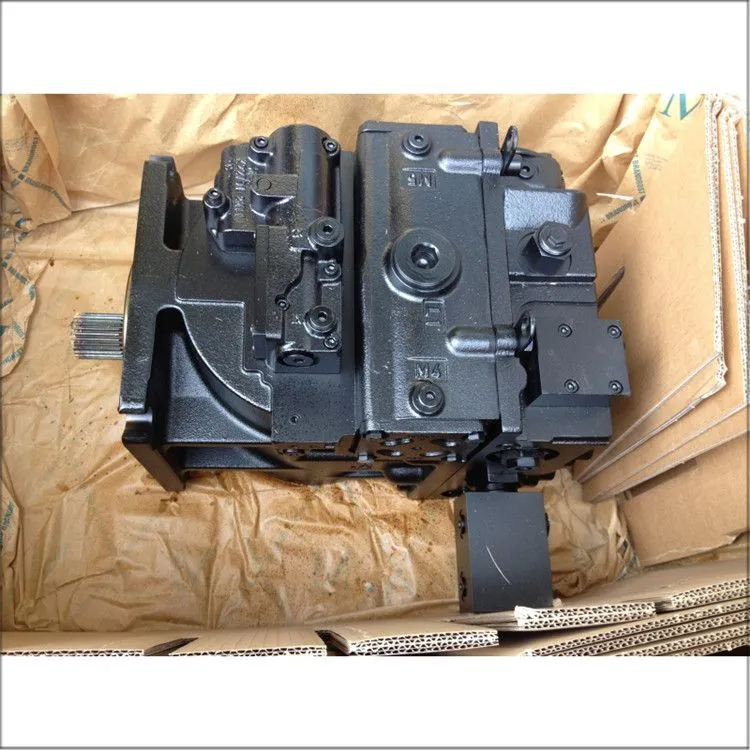

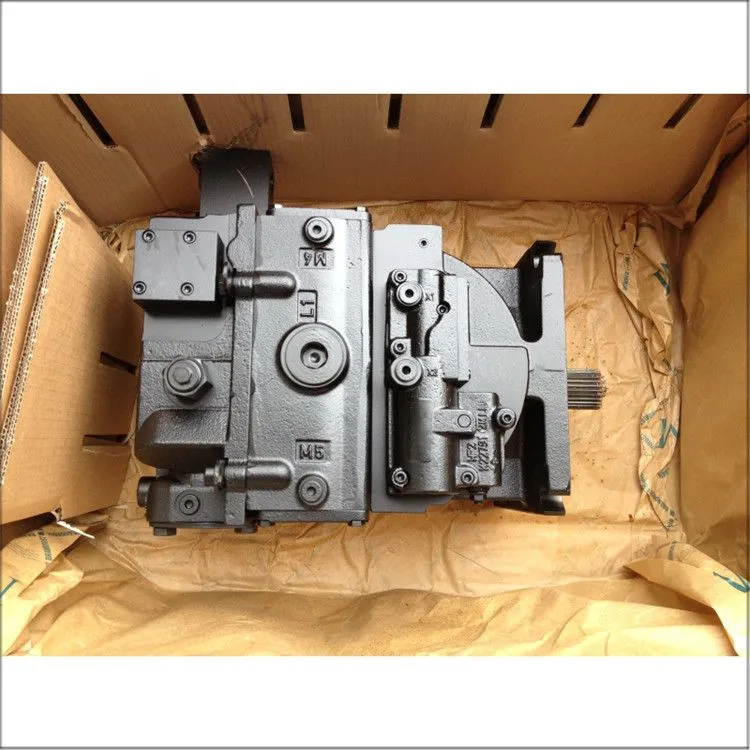

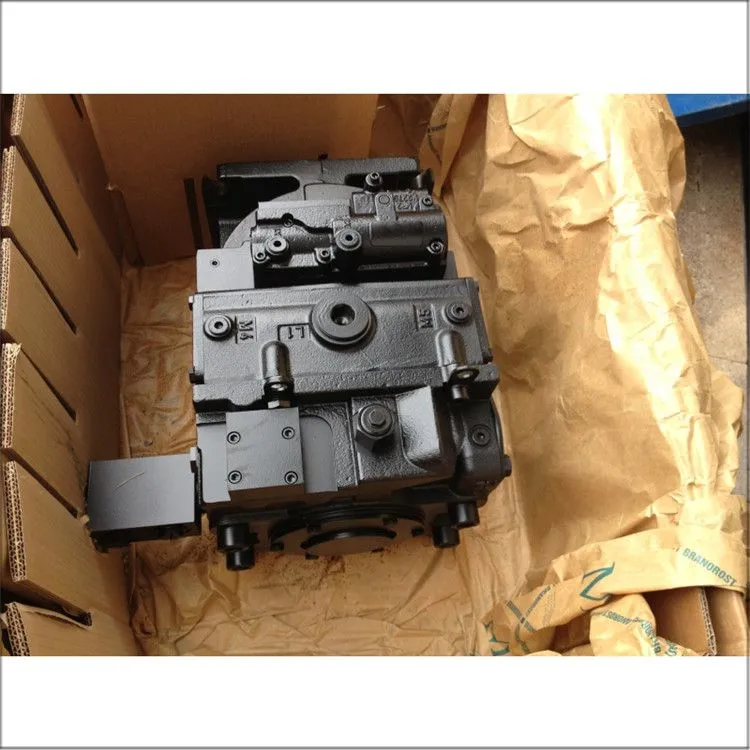

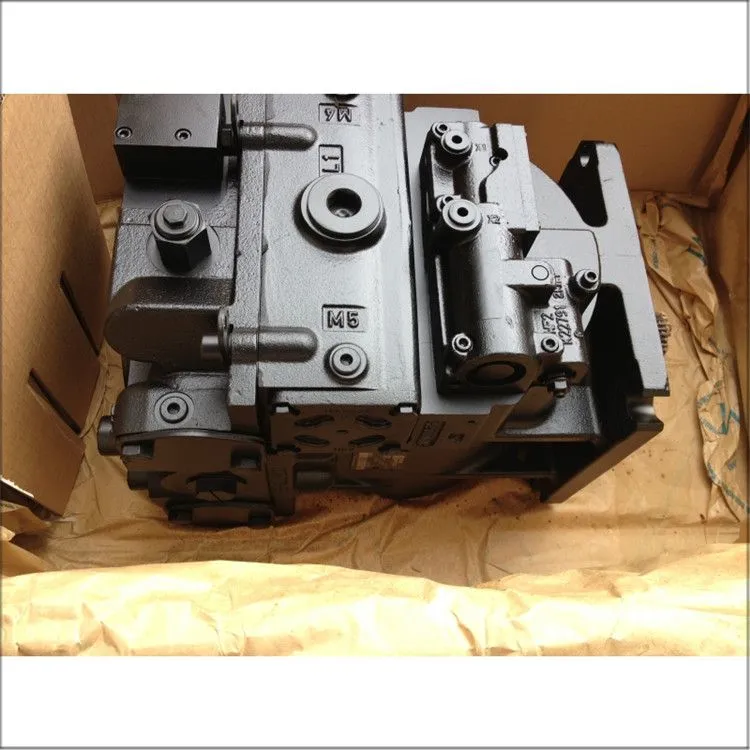

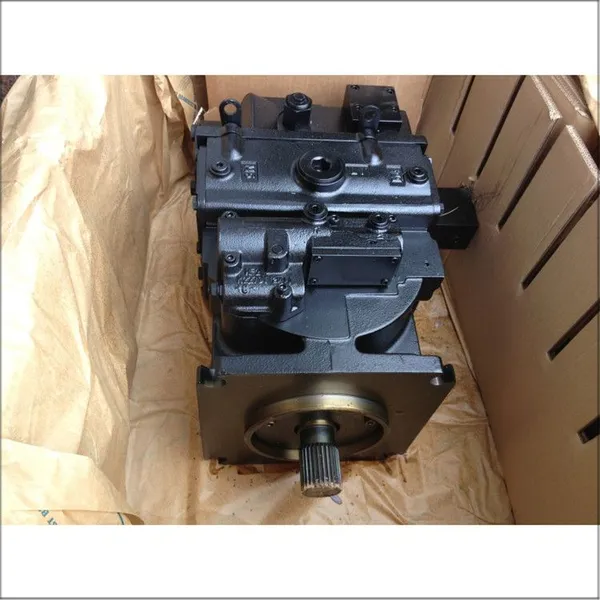

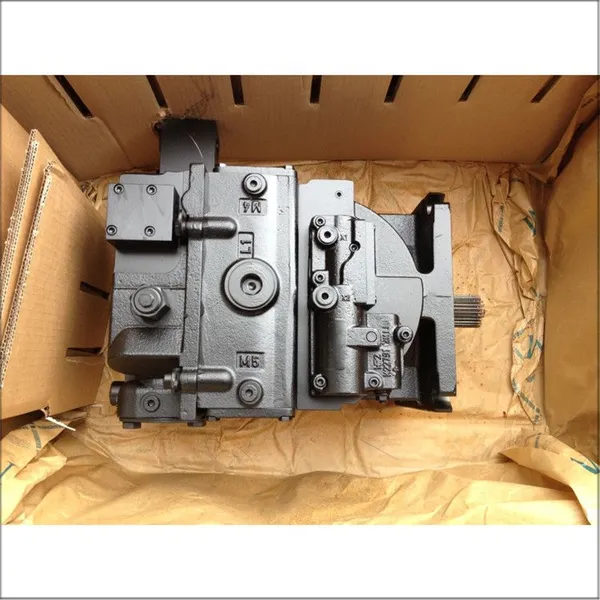

Danfoss 90R180 HS5NN80TCC8 H03 NNN323224 Hydraulic Axial Piston Pump
Overview
The Danfoss 90R180 HS5NN80TCC8 H03 NNN323224 is a high-performance axial piston variable displacement pump from Danfoss‘s renowned Series 90 family (90R Series)--1. Designed for closed-circuit hydrostatic transmissions, this pump features a cradle swashplate design that enables variable displacement control, making it a versatile and powerful solution for demanding mobile and industrial hydraulic systems-. With a maximum displacement of 180 cc/rev and a pressure rating of up to 400 bar (5,800 psi), the 90R180 delivers exceptional power density and reliability for heavy-duty applications--1.
Technical Features
Axial Piston, Variable Displacement Design – The pump utilizes a parallel axial piston/slipper concept with a tiltable swashplate (cradle design) to vary displacement steplessly-. This design enables precise flow control and high overall efficiency.
High Pressure Capability – The pump is rated for a maximum operating pressure of up to 400 bar (5,800 psi), with some specifications indicating a maximum pressure of 450 bar (6,525 psi) for the S90R180 variant--1. This high pressure capability makes it suitable for the most demanding hydraulic systems.
Large Displacement – The pump has a maximum displacement of 180 cc/rev (180 cm³ per revolution), providing substantial flow for high-power applications--1-6.
High Speed Capability – The pump can operate at speeds up to 4,000 rpm, enabling high flow output and fast system response-1-6.
Clockwise Rotation – The pump is designed for clockwise rotation when viewed from the shaft end, ensuring proper integration into hydraulic systems-1-6.
Robust Construction – Built with a ductile iron housing and a high-strength steel shaft, the pump is engineered for long service life and reliable operation in harsh environments-1-6. Heavy-duty bearings provide high load capacity-1-6.
NPT Ports – The pump is equipped with NPT (National Pipe Thread) ports for easy integration with standard hydraulic fittings in North American and other markets-1-6.
Flange Mounting – The pump features a flange mounting type, providing a secure and stable installation-1-6.
Standard Nitrile Seals – The pump uses standard nitrile seals for compatibility with a wide range of hydraulic fluids-1-6.
Compact and Lightweight Design – The pump offers high power density in a compact package, making it easy to integrate into space-constrained systems-1-6.
High Efficiency – The 90R series pumps are designed for high volumetric and mechanical efficiency, providing excellent performance and energy savings--1.
Smooth and Quiet Operation – The pump provides smooth and quiet operation, reducing noise and vibration in the hydraulic system-1-6.
Core Functionalities
Variable Displacement Flow Control – The pump’s displacement can be infinitely varied by adjusting the swashplate angle, providing precise, stepless control over hydraulic flow output-. This allows the pump to match flow precisely to system demand, improving efficiency and reducing energy waste.
Closed-Circuit Hydrostatic Transmission – The pump is specifically designed for closed-circuit (hydrostatic) applications, where fluid is continuously recirculated between the pump and motor in a sealed loop-. This configuration minimizes losses and provides precise power delivery.
High Power Density – The combination of 180 cc/rev displacement and up to 400 bar pressure capability delivers exceptional power output in a relatively compact package-.
Energy Efficient Operation – The variable displacement capability ensures that the pump delivers only the flow required by the system, reducing hydro-mechanical losses, minimizing heat generation, and lowering overall power consumption-1.
Overload Protection – The pump incorporates internal pressure compensation features to protect the system from excess pressure, ensuring safe operation under varying load conditions-1.
High Reliability and Long Service Life – With its robust ductile iron construction, high-strength steel shaft, heavy-duty bearings, and precision engineering, the pump ensures long-term operational stability with minimal maintenance requirements-1-6.
Versatile System Integration – The pump can be configured with various control options (manual, hydraulic, electric) to suit different application requirements-.
Application Sectors
The Danfoss 90R180 HS5NN80TCC8 H03 NNN323224 axial piston pump is designed for heavy-duty mobile and industrial applications requiring high-pressure, high-flow hydraulic power with variable displacement control. The Series 90 pumps are widely used across a broad spectrum of industries--1:
| Industry Sector | Typical Applications |
|---|---|
| Construction Machinery | Excavators, wheel loaders, bulldozers, cranes, pavers, road rollers, compactors, trenchers, and concrete pump trucks- |
| Agricultural Equipment | Combine harvesters, forage harvesters, tractors, self-propelled sprayers, and other heavy agricultural machinery requiring hydrostatic drives--1 |
| Material Handling Systems | Forklifts, conveyor systems, stackers, reclaimers, port machinery, and container handling equipment--1 |
| Industrial Automation | Hydraulic presses, injection molding machines, test rigs, and industrial production lines--1 |
| Mining Equipment | Mining excavators, crushers, material handling systems, and drilling equipment- |
| Marine & Offshore | Ship hydraulic systems, deck machinery, steering gear, and offshore platform equipment- |
| Petroleum & Petrochemical | Oil field machinery, drilling equipment, and petrochemical processing- |
Performance Specifications (Model-Specific)
| Specification | Value |
|---|---|
| Manufacturer | Danfoss (Sauer-Danfoss) |
| Series | 90R Series |

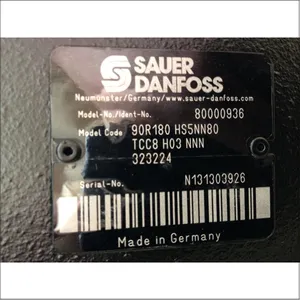

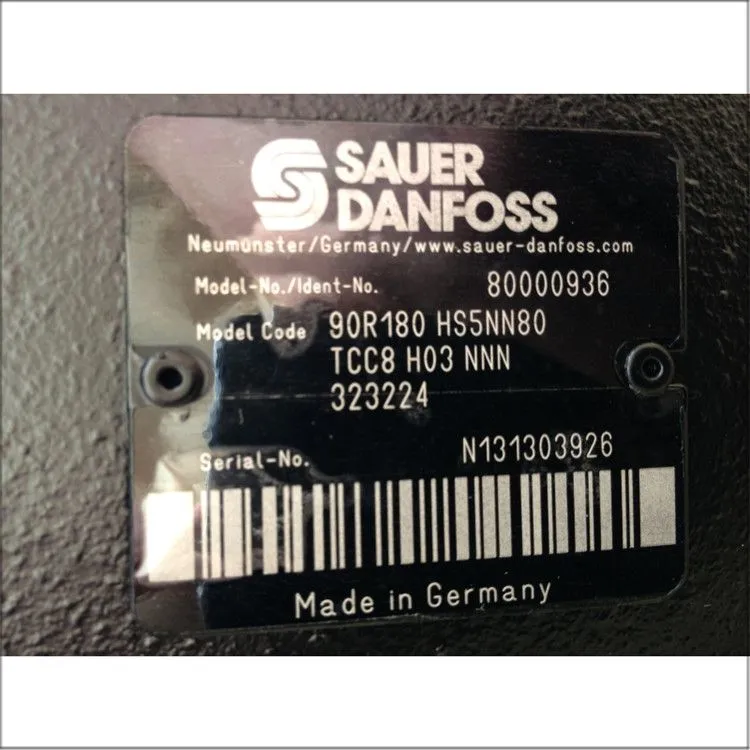

| Model Code | 90R180 HS5NN80TCC8 H03 NNN323224 |
| Pump Type | Axial piston variable displacement pump (cradle swashplate design) |
| Circuit Type | Closed circuit (hydrostatic) |
| Maximum Displacement | 180 cc/rev--1 |
| Maximum Operating Pressure | Up to 400 bar (5,800 psi)-1 |
| Maximum Pressure (S90R180 variant) | 450 bar (6,525 psi)- |
| Maximum Speed | 4,000 rpm-1-6 |
| Maximum Flow (S90R180) | 468 L/min- |
| Rotation Direction | Clockwise (viewed from shaft end)-1 |
| Mounting Type | Flange mounting-1 |
| Shaft Type | Cylindrical shaft-1 |
| Port Type | NPT ports-1 |
| Seals | Standard nitrile seals-1 |
| Housing Material | Ductile iron-1 |
| Shaft Material | High-strength steel-1 |
| Weight (S90R180) | 136 kg- |
Conclusion
The Danfoss 90R180 HS5NN80TCC8 H03 NNN323224 is a high-performance, variable displacement axial piston pump that exemplifies Danfoss‘s decades of expertise in hydraulic drive technology. With its 180 cc/rev displacement, pressure rating up to 400 bar (5,800 psi), and closed-circuit design, it delivers exceptional power density, precise flow control, and reliable operation for demanding hydrostatic transmission applications.
The pump‘s defining features include its cradle swashplate design for stepless variable displacement control, high pressure capability, robust ductile iron construction, NPT ports, flange mounting, and high efficiency (up to 4,000 rpm speed capability). These attributes make the 90R180 an ideal solution for a wide range of heavy-duty applications — from construction machinery, agricultural equipment, and material handling systems to mining machinery, marine systems, and industrial automation.
As a proven, reliable, and energy-efficient solution for closed-circuit hydrostatic drives worldwide, the Danfoss 90R180 HS5NN80TCC8 H03 NNN323224 delivers consistent high-pressure flow, precise control, and long-term dependability for machinery across numerous industries.
