Product Description

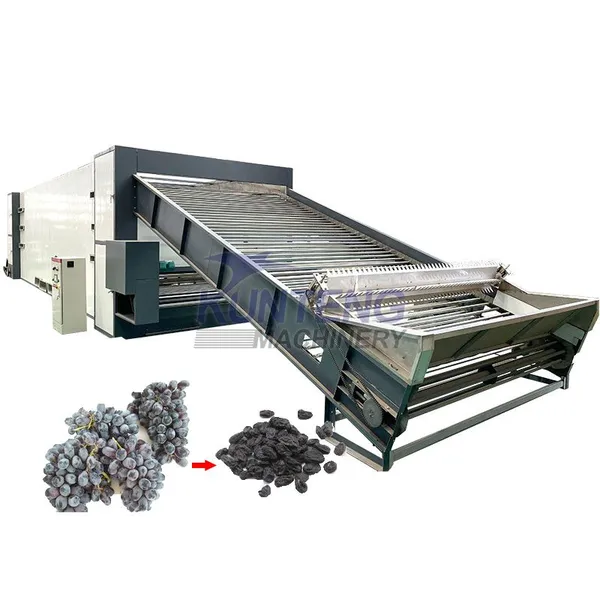

Brife Introduction of Multi Layer Continuous Mesh Belt Drying Machine Chilli Pepper Coconut Potato Drying Equipment
Multi Layer Continuous Mesh Belt Drying Machine Chilli Pepper Coconut Potato Drying Equipment is mainly used for continuous drying of materials with large capacity. It can dry most materials such as vegetables, grains, fruits, flowers and leaves, pastures, etc.
It has been applied to the drying of more than 300 materials, realizing multiple functions in one machine, and bringing huge economic benefits to our customers.
The working principle of Mesh belt dryer:
1.The draft fan, It will absorb the hot air from the heat exchange furnace and transport the air into bottom of drying machine start to dry.
2.The raw material is transported from feeding conveyor to the drying host.It goes with the mesh belt layer by layer.
3.At the same time,the hot air go across from the bottom layer to top layer,finally the humidity come out from top of the dryer and the dried material will be transported out by discharge conveyor
Product Feature
Advantages/Features of Food and Vegetables Processing Machinery Dryer
1.the machine is fully automatic and continuous drying system.the whole line only need 2-3 people to operate.
2.The temperature and speed of dryer is we can control the moisture and temperature as required.
3.For our drying machine not only according to heat to dry, but also according to strong air, the air volume can reach 50,000 cube meters per hour, so it can increase the drying effect.
4. The heat resource have muti purpose, we can use electricity,biomass pellet,wood,gas,coal as fuel. We are using heat exchange furnace to proving heat, the fuel and material not contact with each other, only clean hot air enter into the dryer.
5.We have more than 50 people after-sales team. If the working site have any problem, we can help you solve the problem as soon as possible to ensure the machine can continue work. Also We can dispatch engineer to your site to assist you assemble machine and test machine running.
Material application scope
This Continuous Conveyor Multi Layer Mesh Belt Drying Machine can dry vegetables,grains,fruits,flowers and leaves,and tand industry products.At present, it has been used in drying more than 300 kinds of materials.
And it can maximum keep the original color of raw materials.
Maine Technical Parameters for Mesh Belt Dryer
| Model | KT1.5-6-4 | KT2-8-4 | KF2-9-4 | KT2-10-4 |
| Layers | 4 | 4 | 4 | 4 |
| Drying area(m2) | 29 | 45 | 51 | 57 |
| Spread thickness of material(mm) | 50-200 | 50-200 | 50-200 | 50-200 |
| Working temperature | 0-120 | 0-120 | 0-120 | 0-120 |
| Capacity | 100-150kg/h | 200kg/h | 250 kg/h | 300 kg/h |
| Heat exchange furnace (m) | 3.2*1*2.7 | 3.9*1.26*3 | 3.9*1.26*3 | 4.7*1.5*3 |
| Working time | 24h | 24h | 24h | 24h |
| Place requirement(W*L*H)M | 4.5*14*2.7 | 5*19*2.8 | 4.5*20*2.8 | 5.5*21*2.8 |

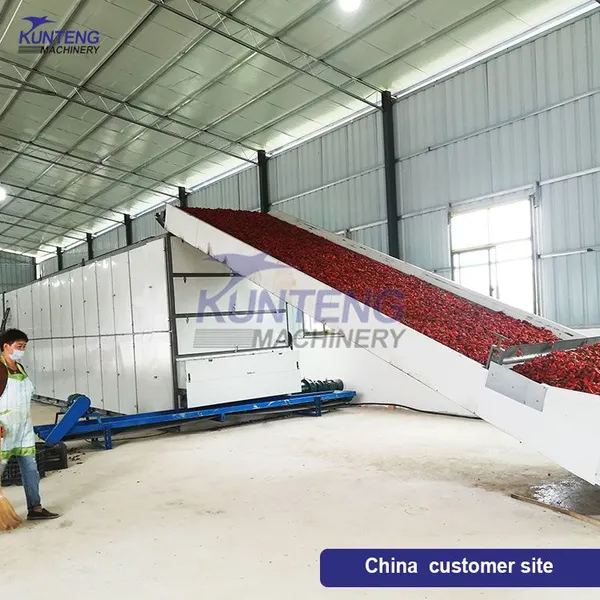

Customer Site
Continuous Conveyor Multi Layer Mesh Belt Dryer Machine is a very mature machine in our factory, and our products have many successful customer cases at home and abroad.
Production Line
Automatic Drying Production Line
We also provide the whole automatic fruit and vegetable drying production line,inculdes vegetable and fruits cleaning machine,cutting machine,steaming and bleaching machine,fixing machine ect.
Related Products
1. High efficiency fruit and vegetable washing.
2.Fruit and vegetabole slicer.
Customer Visit
Every year,many customers come from domestic and abroad visit our factory and test the drying machines and sign the contract,because our product variety, reliable quality, good after-sales service!
Packaging & Shipping
Strong packaging protects the product in transit.
Company Information
Henan Kunteng Machinery Co.,Ltd.was established in 1999.We are engaged in manufacturing drying equipment for more than 20 years.
Our mature equipment includes:drying equipment production line,freeze-drying equipment,cold storage refrigeration equipment,grabage sorting machines,coconut husk processing machines and other products.We can design the most reasonable solution for customers. Welcome to our factory to discuss cooperation
Our Services
We have professional and technical personnel, guide the installation and test of the product to the users, training technical operations personnel at the scene, to achieve independent operation, teaching various technical formulations, and implement equipment, technology ,process tracking service, one year warranty,life-long service, agent consignments.
FAQ
1. who are we?
We are a professional manufacturer in China
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.long is the warranty period? Normally 12 months. Except for wearing parts. 4.your delivery time?? We will arrange for shipping in factory within 15 working days after receiving the advance payment.
