As a specialized manufacturer with over a decade of experience in electrical equipment, Jinhua Dika Electrical Equipment Co., Ltd. is proud to present our Heavy-Duty Battery Disconnect Switch, engineered specifically for demanding marine applications. This robust switch is designed to provide a reliable and safe means of completely isolating your vessel's battery system, a critical safety and maintenance feature for any boat owner or marine operator. Our commitment to quality, evidenced by our comprehensive management system certifications including ISO 9001 and ISO 14000, ensures that every switch meets stringent performance and durability standards. We understand the harsh conditions of marine environments, which is why this disconnect switch is built to withstand corrosion, vibration, and moisture, offering peace of mind and operational reliability. Sourced directly from our factory in Jinhua, China, and shipped globally from major ports like Shanghai and Tianjin, we provide a dependable component that is essential for safe marine electrical system management.
This disconnect switch is more than just a simple on/off device; it is a vital safety component. Its primary function is to provide a fail-safe method to cut off all electrical power from the battery, preventing accidental shorts, electrical fires during maintenance, and parasitic battery drain during extended storage periods. The inclusion of a comprehensive installation guide makes professional-grade installation accessible, ensuring correct and safe setup for optimal performance and longevity.
Key Features and Technical Advantages:
- Marine-Grade Construction: Manufactured with high-quality, corrosion-resistant materials such as copper alloys and durable plastics to endure saltwater spray, humidity, and UV exposure common in marine settings.
- High Current Capacity: Engineered to handle the high inrush and continuous currents required by marine engines, bilge pumps, winches, and onboard electronics without voltage drop or overheating.

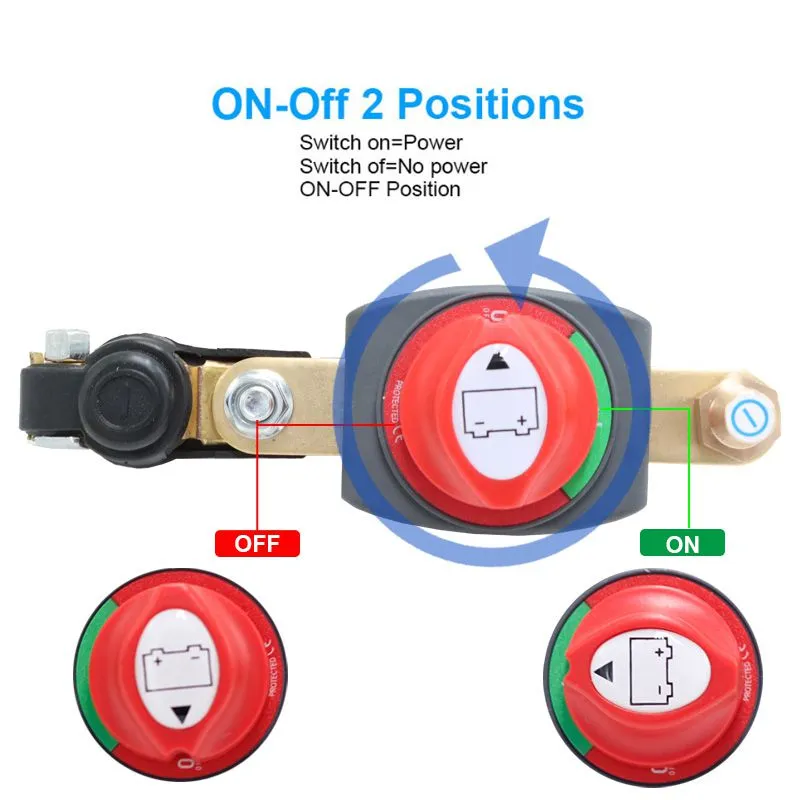

- Positive Disconnect Mechanism: Features a robust, rotary or lever-action mechanism that provides a definitive, audible "click" to confirm the circuit is fully open or closed, eliminating partial contact issues.
- Safety Lock-Out Capability: Many models include a provision for a padlock, allowing the switch to be locked in the "OFF" position. This is crucial for safety during work on the electrical system and to prevent unauthorized use.
- Easy Installation: Comes with a clear, step-by-step installation guide, large stud terminals for secure cable connections, and versatile mounting options to fit into various panel layouts or engine compartments.
- Compliance & Reliability: Designed and tested to comply with relevant marine electrical standards, ensuring compatibility and safety within marine electrical systems.
Technical Specifications Table:
| Parameter | Specification |
| Rated Continuous Current | Typically 300A to 1000A (specific model dependent) |
| Voltage Rating | 12V / 24V / 48V DC Systems |
| Terminal Size | M8 or M10 studs, accommodating large gauge cables |
| Operation Type | Rotary Knob or Lever Actuated |
| Enclosure Protection (IP Rating) | IP65 or higher available for splash and dust protection |
| Mounting | Panel mount (standard) or surface mount options |
| Material (Contacts) | Silver-plated copper for low resistance and corrosion resistance |
| Material (Housing) | Engineering plastic or metal with corrosion-resistant finish |
Benefits for Your Business:
- Enhanced Safety: Drastically reduces the risk of electrical fires, shorts, and accidental shocks during maintenance, protecting both personnel and valuable marine assets.
- Battery Preservation: Prevents parasitic drain from onboard systems when the vessel is not in use, extending battery life and ensuring reliable starting power.
- Regulatory Compliance: Using a switch designed for marine standards helps vessel operators meet safety inspection requirements and insurance stipulations.
- Reduced Maintenance Costs: By providing a reliable isolation point, troubleshooting electrical issues becomes simpler and safer, saving time and labor costs.
- Durability & Longevity: The heavy-duty construction ensures a long service life even in challenging conditions, providing excellent return on investment.
Backed by Jinhua Dika's established manufacturing expertise and a track record of supplying quality electrical components to global markets across North America, Europe, Southeast Asia, and Oceania, this Heavy-Duty Battery Disconnect Switch represents a reliable and professional choice. Our annual export value reflects consistent customer trust and satisfaction. We support our products with accessible shipping from major Chinese ports, ensuring timely delivery to your location. For a critical safety component that combines robust construction, marine-specific design, and straightforward installation, look no further. Contact us today to discuss your requirements, request detailed specifications for your specific amperage needs, or to place an order for this essential marine safety device.
Frequently Asked Questions (FAQ)
-
Q: Is this switch suitable for both 12V and 24V marine systems?
A: Yes, our heavy-duty disconnect switches are typically rated for common marine DC voltages including 12V, 24V, and sometimes 48V systems. Please check the specific model's voltage rating before purchase. -
Q: Can the switch be installed in the engine compartment where it may get wet?
A: Many of our models feature a high Ingress Protection (IP) rating, such as IP65 or higher, which makes them resistant to water jets and dust, suitable for installation in engine compartments or other exposed areas. Confirm the IP rating for your chosen model. -
Q: Does the installation guide include wiring diagrams?

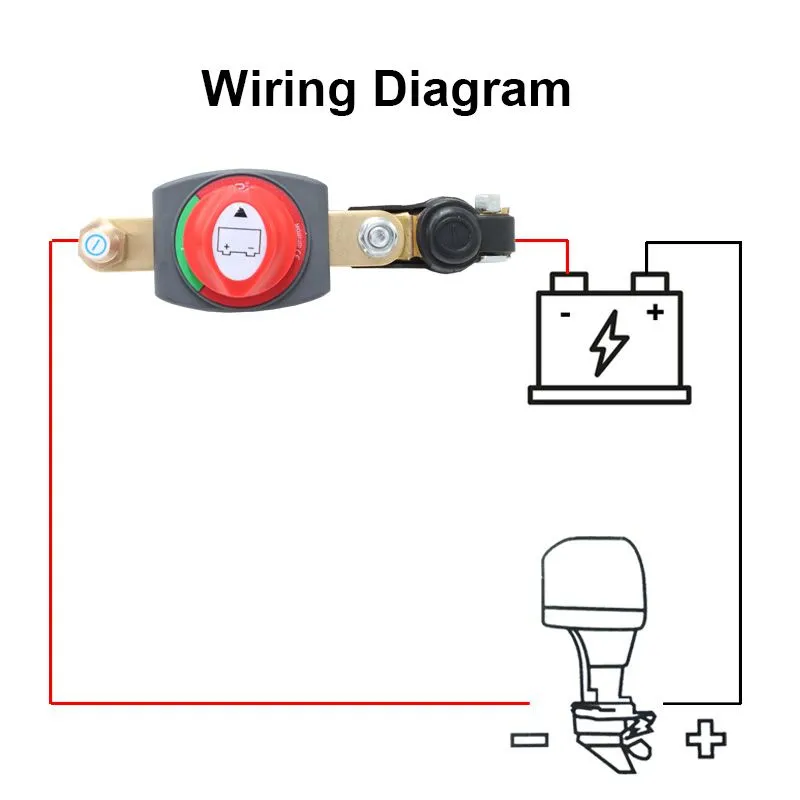

A: Absolutely. The provided installation guide includes clear wiring diagrams, step-by-step instructions, and torque specifications for terminal connections to ensure a safe and correct installation. -
Q: What is the maximum cable size the terminals can accommodate?
A: The heavy-duty stud terminals are designed to accommodate large gauge battery cables, typically up to 2/0 or 4/0 AWG, depending on the specific model. The product specifications will provide precise details. -
Q: How does this switch help with battery maintenance?
A: By completely disconnecting the battery from the vessel's electrical system, it prevents all parasitic loads (like clocks, alarms, or bilge pump controllers) from draining the battery during long periods of storage, thereby preserving battery charge and health. -
Q: Is a lockable version available for added safety?
A: Yes, most of our heavy-duty marine battery disconnect switches come with a built-in feature or an accessory option that allows you to secure the switch in the "OFF" position with a padlock, which is a critical safety feature for maintenance. -
Q: What certifications does this product hold?
A: While the product is designed to comply with marine standards, our manufacturing process is certified under ISO 9001 for quality management. Specific product certifications can be confirmed upon request for your target market. -
Q: What is the expected operational life of the switch?
A: Constructed with high-quality materials and robust contacts, these switches are designed for long-term reliability. They can typically withstand thousands of operational cycles, making them a durable component for your marine electrical system.
