Cone Crusher: Symons, Single Cylinder & Multi Cylinder for Hard Rock Crushing
A cone crusher is the key secondary & tertiary crushing machine designed exclusively for hard rock and high-hardness ore. It mainly includes three professional types: Symons Cone Crusher (Spring Type), Single Cylinder Hydraulic Cone Crusher, and Multi Cylinder Hydraulic Cone Crusher. These three models are widely used in quarrying, mining, aggregate production, road & railway construction, and form a complete crushing system with jaw crushers.
Our cone crushers feature high crushing efficiency, excellent grain shape, low operating cost, and strong overload protection. They are the best choice for crushing granite, basalt, river stone, iron ore, copper ore, and other hard materials.
1. Symons Cone Crusher (Spring Cone Crusher) – Cost-Effective Standard Type
What is Symons Cone Crusher?
Symons cone crusher, also called spring cone crusher, uses a spring safety protection system for simple structure, stable performance, and low investment cost. It is the most widely used standard cone crusher for medium crushing.
Core Advantages:
✅ Lowest initial investment
✅ Simple operation & easy maintenance
✅ Stable performance for long-term work
✅ Ideal for small & medium stone plants
Common Models: PYB600, PYB900, PYB1200, PYB1750, PYB2200
Capacity: 20–280 t/h | Feed Size: 60–210 mm

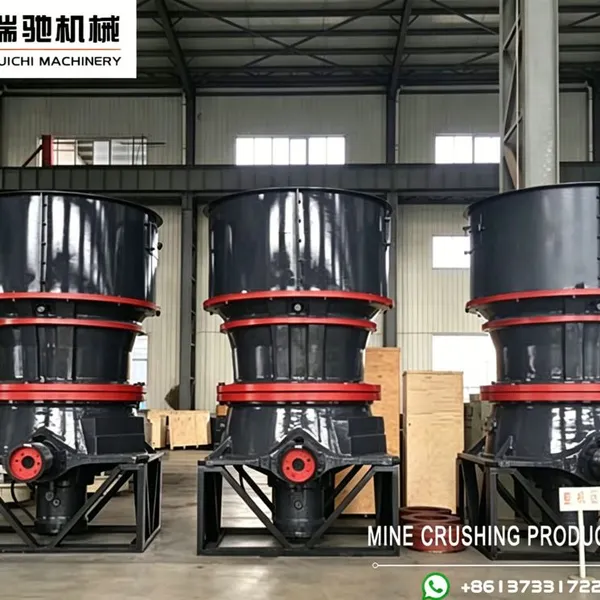

2. Single Cylinder Cone Crusher – Intelligent Fine Crushing Type
What is Single Cylinder Cone Crusher?
Single cylinder cone crusher uses one hydraulic cylinder to realize gap adjustment, overload protection, and cavity cleaning. It is professional for fine crushing and sand shaping.
Core Advantages:
✅ Compact structure & light weight
✅ Intelligent hydraulic control
✅ Uniform finished product size
✅ Perfect for tertiary fine crushing
Common Models: SC160, SC250, SC315, SC450, SC600
Capacity: 60–300 t/h | Feed Size: 150–280 mm
3. Multi Cylinder Cone Crusher – High-Efficiency Large Output Type
What is Multi Cylinder Cone Crusher?
Multi cylinder cone crusher is equipped with multiple hydraulic cylinders to provide stronger crushing force and higher output. It is the top choice for large mines and high-yield quarries.
Core Advantages:
✅ Maximum crushing force & output
✅ Long service life of wear parts
✅ Stable heavy-duty operation
✅ Best for high-hardness ore & large-scale production
Common Models: MC200, MC300, MC400, MC500, MC600
Capacity: 100–450 t/h | Feed Size: 180–320 mm
Comparison of 3 Types of Cone Crushers
| Item | Symons (Spring) | Single Cylinder | Multi Cylinder |
|---|---|---|---|
| Protection | Spring | Single Hydraulic | Multi Hydraulic |
| Application | Medium Crushing | Fine Crushing | Large Output |
| Cost | Low | Medium | High |
| Best For | Small Plants | Sand Making Line | Mines & Quarries |
Core Advantages of Our Cone Crushers
✅ Superior Hard Rock Crushing: All three types adopt laminated crushing for high-hardness rocks, with good cubic shape and less powder.
✅ Reliable Overload Protection: Spring or hydraulic protection system automatically avoids unbreakable materials and reduces failures.
✅ Complete Models: Full series of Symons, single cylinder, and multi cylinder cone crushers for any production requirement.
✅ Flexible Configuration: Can be used in fixed crushing plants or mobile crushing stations.
Application Scope
Mining: Iron ore, copper ore, gold ore, non-ferrous metal ore crushing
Quarry: Granite, basalt, river stone, hard rock aggregate production
Infrastructure: Highway, railway, high-speed rail construction aggregate
Construction Waste: Hard concrete recycling and reuse
Sand Making Plant: Fine crushing and shaping before sand making
Technical Parameters (3 Types)
| Type | Models | Capacity(t/h) | Feed Size(mm) |
|---|---|---|---|
| Symons Spring | PYB600-PYB2200 | 20-280 | 60-210 |
| Single Cylinder | SC160-SC600 | 60-300 | 150-280 |
| Multi Cylinder | MC200-MC600 | 100-450 | 180-320 |
Frequently Asked Questions
Which cone crusher should I choose?
Small budget → Symons spring cone crusher
Fine crushing & sand making → Single cylinder cone crusher
Large mine & high output → Multi cylinder cone crusher
What materials can a cone crusher crush?
It can crush all hard rocks and ores, including granite, basalt, river stone, iron ore, copper ore, etc.
Can you provide a complete production line?
Yes! We provide one-stop solutions including jaw crusher, cone crusher, vibrating screen, and layout design.
Our Service & Support
We are a professional cone crusher manufacturer with full models of Symons, single cylinder, and multi cylinder cone crushers.
✅ Free model selection & production line design
✅ Factory inspection & on-site installation
✅ Global after-sales & spare parts supply
Contact us now to get the latest price, model parameters, and customized crushing solution!
