Full Specification of Blank White Roll Self-Adhesive Cable Labels for Wires & Cables
1. Core Applications (Full-Scenario Identification for Wires & Cables)
Computer Room / Weak Current WiringSuitable for distinguishing network cables, optical fibers, monitoring cables, switch distribution wires and cabinet control wires. It can print loop numbers, port numbers and computer room position information. P-type flag labels can be wrapped around cable bodies to realize quick line identification during maintenance.
High & Low Voltage Power CablesIdeal for marking distribution cabinets, busbars, motor lead wires, outdoor cables and construction site wires. It supports printing wire gauge, voltage, phase sequence, loop number and project name, adapting to long-term indoor and outdoor working conditions.
Industrial Equipment WiringUsed for classifying internal harnesses and sensor wires of automated equipment, machine tools, charging piles and instruments, distinguishing power lines, signal lines and control lines to facilitate equipment commissioning, maintenance and quality inspection.
Home & Construction WiringApplied to marking power distribution box wires, pipeline branch lines and main incoming lines, recording room loop and power specifications to avoid line confusion during subsequent hydropower maintenance.
Finished Wire Product IdentificationSuitable for outer labeling of finished wire and cable rolls. It can print specifications, meterage, qualification barcodes, batch numbers and execution standards, and is compatible with barcode printers and thermal transfer printers for assembly line production.
Wire Harness Processing PlantsUsed for distinguishing semi-finished automotive and home appliance wires by printing part numbers, order numbers and customer codes, matching continuous roll printing of automatic labeling machines.
2. Main Base Material Classification (Special Materials for Wires & Cables)
2.1 PP Synthetic Paper (Universal for Computer Rooms & Weak Current)
Features: Soft texture, foldable and wrappable, waterproof and oil-proof, tear-resistant, no edge warping when fitted on curved surfaces, and no hardening at low temperatures.
Application: Indoor network cables, optical fibers and low-voltage weak current lines; compatible with thermal and thermal transfer printing with high cost performance.
Limitations: Average high temperature resistance, not suitable for outdoor exposure or high-temperature areas around motors.
2.2 PET Polyester (Industrial, Outdoor & High-Temperature Use)
Features: High temperature resistance from -20℃ to 120℃, UV resistance, oil and solvent resistance, insulation and flame retardancy, fade-proof and stable dimensional performance.
Application: Outdoor cables, distribution cabinets, motors, charging piles and long-term outdoor wiring projects.
Types: Matte white PET, glossy white PET, self-laminating PET (with transparent protective film after printing for scratch and water resistance).
2.3 PVC Flame-Retardant Type (Special for Power & Fire Protection)
Features: UL94-V0 flame retardant grade, non-propagating combustion, strong adhesion and wide temperature resistance, suitable for high-voltage electrical environments.
Application: Fire protection cables, switch cabinets, rail transit cables and high-temperature power equipment.
2.4 Coated Paper (Short-Term Finished Product Outer Packaging)
Features: Low cost and high printing clarity.
Application: Temporary labels for outer packaging of coiled wires. Not recommended for direct cable body attachment (non-waterproof, easy to tear and prone to edge warping under heat).
3. Label Structures & Styles (Common Blank Roll Types)

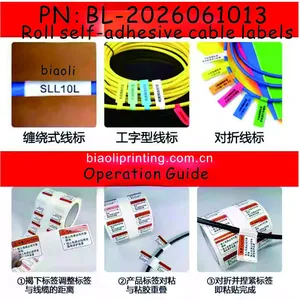

Wraparound Folded P-Type (Flag Type)Pre-die-cut roll labels with a middle printing area and transparent laminated tail. Folding around cables fully covers printed content for waterproof and wear resistance. It is the most widely used type for computer rooms. Common specifications: 25×38mm, 30×45mm, 70×26mm.
Long Flat Direct Paste TypeRectangular blank roll labels for direct attachment on cable surfaces, wire pipes and wire reel outer packaging for printing model numbers and barcodes.
Self-Laminating Integrated Roll LabelsCombined with a white printing area and transparent protective tail. Wrapping the label fully covers printed texts to resist oil stains and scratches, ideal for industrial oily environments.
4. Compatible Printing & Roll Specifications
Printing Compatibility
Thermal Transfer Rolls: Compatible with PET and PVC flame-retardant labels, offering permanent fade-proof texts, the first choice for long-term industrial identification.
Thermal Rolls: Matched with PP synthetic paper, no ribbon required, suitable for short-term identification of weak current lines in computer rooms.
Roll ParametersStandard core sizes: 25mm/40mm; quantity per roll: 500/1000/2000 pieces. Customizable width, die-cut size, single-row and double-row rolling structures are available.
5. Advantages of Special Cable Adhesive Layer
Professional high-tack rubber water adhesive for cables: Compatible with various cable outer skins including PVC, rubber, PE and metal, ensuring no edge warping or falling off in low-temperature and humid environments.
Removable adhesive optional: Suitable for temporary wiring marking with no residual glue after peeling; permanent high-tack adhesive for long-term industrial identification.
6. Labeling Method Compatibility (Manual & Machine Labeling)
Manual Labeling: Compatible with all series of roll cable labels with strong versatility. No special equipment required, featuring flexible and convenient operation. It is suitable for small-batch wiring, on-site construction, computer room maintenance and rectification, scattered wire marking and after-sales supplementary labeling. With precise die-cutting and easy peeling, the labels support single-person fast wrapping, folding and direct pasting for all styles including P-type flag labels, flat labels and self-laminating labels, with zero operation threshold for indoor and outdoor small-scale wiring labeling.
Machine Labeling: Designed for assembly line mass production, compatible with standard roll labels and integrated operation of automatic labeling machines and barcode printers. The rolls feature regular cores, uniform label arrangement and consistent spacing, enabling continuous automatic label output and precise positioning labeling without jamming, deviation or breakage. Ideal for mass labeling of finished and semi-finished wires in wire harness factories and cable manufacturers, it greatly improves labeling efficiency with high standardization, adapting to PP, PET, PVC and coated paper roll labels to meet industrial mass production requirements.
7. Environment Adaptation & Selection Guide
Indoor computer room network cables & optical fibers → White PP synthetic paper thermal rolls
Outdoor cables, charging piles & high-temperature motors → Matte white PET thermal transfer rolls
Fire protection systems, high-voltage distribution cabinets & rail transit → White flame-retardant PVC self-adhesive rolls
Temporary outer packaging labels for finished coiled wires → Coated paper roll labels
