Description

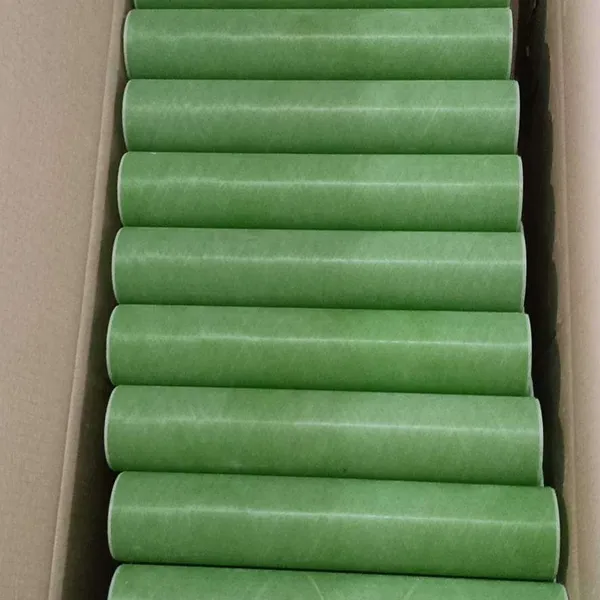

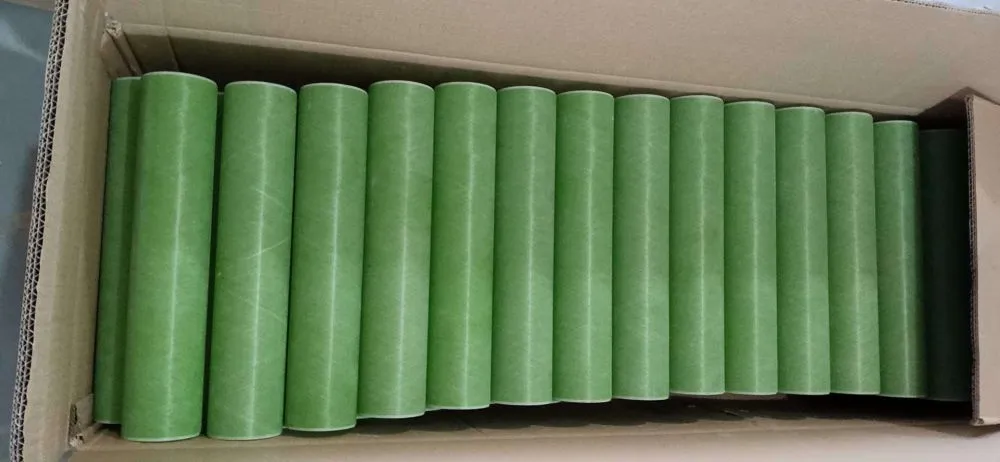

The FRP (Fiber Reinforced Plastic) Core Tube is designed for wrapping various plastic films and specialty papers with high precision. Unlike traditional plastic cores such as ABS, or metal cores, the FRP core maintains stable dimensions and surface accuracy under changing environmental conditions, including humidity. Its smooth, flat surface and high structural integrity prevent damage to the wrapped material, ensuring optimal film utilization. FRP cores are customizable in diameter and wall thickness and benefit from decades of proven manufacturing expertise.
Features
High Strength: Withstands high loads without deformation.
Straight & Circular: Ensures uniform winding without wrinkles.
Antistatic: Prevents static damage and hazards.
Reusable: Can be used multiple times without quality loss.
Durable: Resistant to moisture, corrosion, and impact.
Applications
Winding copper foil for secondary battery cathodes (6 µm, 8 µm, 10 µm, 20 µm)
Winding aluminum foil for secondary battery anodes (10 µm, 12 µm, 15 µm)
Winding separator membranes for secondary batteries (custom thickness)
Winding active material electrodes for secondary batteries (custom thickness)
Winding metal foils
Winding plastic films such as PET, PE, PI
Winding high-performance or functional films, including optical films
Winding processed films such as vapor-deposited films
Winding paper products, labels, and specialty papers
| FRP Core Tube For Copper Foil | ||
| NO. | Item | Standard Data |
| 1 | Length Tolerance | ±1mm |
| 2 | Inner Diameter Tolerance | ±0.2mm |
| 3 | Thickness Tolerance | ±0.1mm |
| 4 | Real Roundness | |
| 5 | Real Straightness | |
| 6 | Circle Anti-pressure Strength | ≥450Mpa |
| 7 | Axis Anti-pressure Strength | ≥145Mpa |
| 8 | Surface Hardness | Above 40 Barcol in average |
| Above 80 Shore in average | ||
| 9 | Surface Roughness | Ra≤0.4 |
| 10 | Surface Resistance Coefficient | Static Electricity Diffusion＜107Ω |
