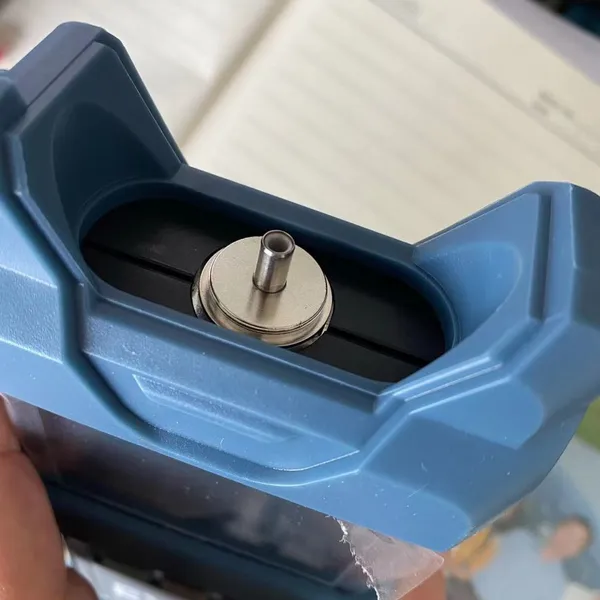

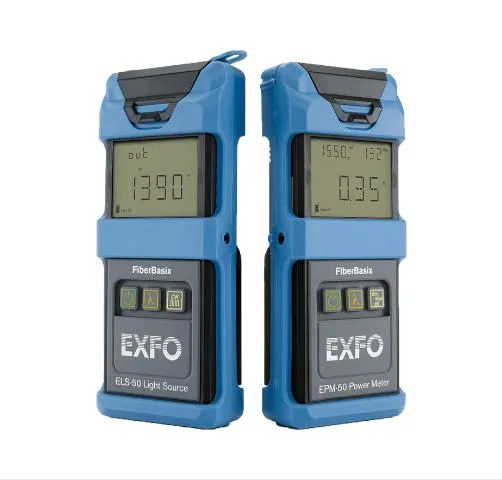

EXFO ELS-50 Light Source Product Features
Easy-to-use interface for error-free testing
Interchangeable connectors for best-in-class flexibility
Cost-effective, rugged and highly reliable
Ideal for premises network testing and troubleshooting
Can be used as a stand-alone device or as a multifunctional test set that
Includes all required accessories (adapters, carrying cases, etc.)
Five test kits designed for specific user/testing needs.
LAN, Outdoor, Contractor, FTTH and CATV
EXFO ELS-50 Light Source Product parameters
Center wavelength (nm):
1310 ± 20 \ 850 +10 \ 1550 ± 20 \ 1490 ± 10 \ 1300 +50 -10
Spectral width: (nm) single-mode ≤ 5, multimode 40/120
Output power (dBm): single-mode greater than -4, multimode greater than -24 (see technical data)
Power stability (dB) 8 hours : ± 0.10
Battery life (hours) : 60
Enable automatic wavelength recognition
Audio generation (Hz) : 270, 1 k, 2 k
Weight: 0.4 kg
