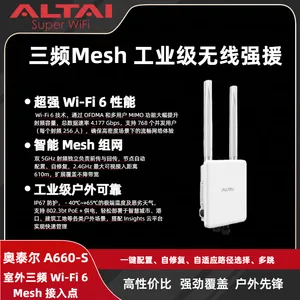

Help CenterAltai A660-S Outdoor Tri-Radio Wi-Fi 6 Mesh Access Point
Product Spotlights
Related Products
-
RUCKUS R350 Indoor Access PointNegotiableMOQ: 1 Unit -
RUCKUS R760 Indoor Access PointNegotiableMOQ: 1 Set
-
RUCKUS R850 Indoor Access PointNegotiableMOQ: 1 Pound
-
RUCKUS R650 Indoor Access Point Features Wireless Networking EquipmentNegotiableMOQ: 1 Ounce
-
RUCKUS R550 Indoor Access Point Features Wireless Networking EquipmentNegotiableMOQ: 1 Ounce
Enhanced Capacity with Wi-Fi 6 Support
Harnesses Wi-Fi 6 features such as OFDMA and bi-directional multi-user MIMO to significantly increase capacity on both 2.4 GHz and 5 GHz bands, ensuring superior performance.
Total Data Rate 4.177 Gbps
2.4 GHz: 574 Mbps
5 GHz Radio 1: 1201 Mbps
5 GHz Radio 2: 2402 Mbps
*Max. Concurrent Users 768 (256 for each radio)
Self-Organizing and Self-Healing Mesh Technology
Multiple A660-S units can form a mesh group instantly with auto configuration and data synchronization. The mesh nodes communicate with each other to select the most efficient path for data transmission, maintaining bandwidth performance. The system intelligently adapts to changes in the RF environment or node status, ensuring reliable connectivity.
Intra-Band Isolation and Self-Interference Mitigation
Equipped with high-quality BAW (Bulk Acoustic Wave) filters, the A660-S effectively isolates the 5 GHz radios 1 and 2, minimizing interference and ensuring optimal end-to-end mesh network performance.
Super Dual-Band Coverage
*Expected Line-of-Sight Distance between A660-S AP and Smartphone
2.4 GHz 5 GHz
Open Area 610 m 610 m
Rural 410 m 390 m
Suburban 230 m 200 m
Urban 120 m 100 m
Dual-Image Design
Supports dual-image and fail-safe boot to minimize the risk of system file corruption caused by power supply issues or improper operations.
Weatherproof and Dustproof Housing
Built to withstand outdoor environments, it is well-suited for various deployments from smart cities and ports to construction sites.
Robust Security Protection
Supports WPA3 for secure Wi-Fi access, offering advanced encryption protocols to safeguard data transmission.
Integrates with †Check Point’s Nano Agent to fend off sophisticated cyber-attacks, including shell injections, memory corruption and control flow hijacking.
Ease of Deployment
Compatible with either cloud or on-premises WLAN controllers, including AltaiGate, AltaiCare cloud/virtual appliance, enabling quick and efficient network rollout regardless of the network size.
* The distance values listed in the table are applicable for basic connectivity only. For high-bandwidth and time-sensitive applications, a stronger signal is required, which translates to shorter distances. Please note the actual number of concurrent users and performance can vary based on site conditions, distance, device configurations, and overall capabilities.
† The Check Point’s Nano Agent feature is supported via AltaiGate feature license upgrade.
