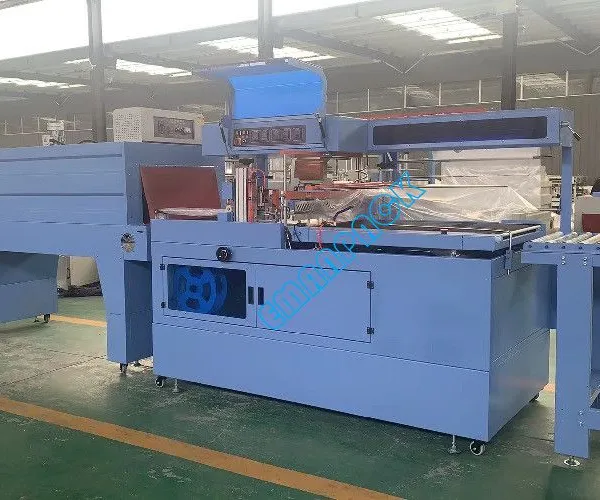

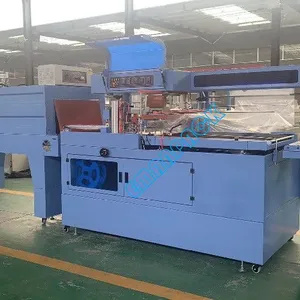

This SW-L450 machine has an imported PLC automatic program control, easy operation, safety protection and alarm function that effectively prevents incorrect packaging. It is equipped with an imported horizontal and vertical detection photoelectric, which makes it easy to switch selections. The machine can be connected directly with the production line, no need additional operators.
Main Features:
•Fully automatic side sealer machine with the function of automatic film feeding punching, coating, sealing cutting, waste film automatically rolling in one time which is widely used in mass production packaging line with high efficiency. •The sealing part is consist of transverse sealing and side sealing, both can be lifting controlled independently. We can guarantee sealing line in the middle of the product to achieve perfect sealing effect. •Manual adjustment film-guide system and feeding conveyor platform make the machine suitable for different width and height items. •Side sealing part can continuous pull film sealing and cutting, the product length is unlimited. •Feeding length controls through a combination of electric eye detection and time relay to control precise film length that makes it easier to control the contraction effect. •Waste film automatically rolling. Using independent motor control, rolling speed uniform and smooth will not too tight or too loose which can avoid break the waste film and the rewinding plate is easy disassembly. •Automatic mode and manual mode can be switched at any time which convenient to replace the shrink film. •Applies to photo frame, picture frame, flooring, aluminum profile, wood products and other products packaging.
Model |
SW-L450 |
SW-M600 |
Power |
220V/1P/50HZ, 1.25KW |
380V/3P/50HZ, 15KW |
Packing size |
L no limited, W+H≤380mm, H≤150mm |
W50-400*H20-250mm |
Sealing size |
L no limited*W470mm |
500*300mm |
Packing speed |
15-30bags/min |
15-30bags/min |
Air pressure |
0.4-0.6Mpa |
0.4-0.6Mpa |
Weight |
350kg |
300kg |
Machine size |
L1650*W900*H1470mm |
L1800*W1050*H1300mm |
