Help CenterScrap Copper Brass Chips Briquette Machine Metal Shavings Compacting Equipment
Product Spotlights
Related Products
-
Hydraulic Metal Dust Briquetting Press Cast Iron Scraps Block Forming MachineUS$ 18600MOQ: 1 Set -
Industrial Metal Scrap Briquetter for Steel Factory Metal Processing WasteUS$ 18600MOQ: 1 Set
-
Small Hydraulic Aluminum Scrap Briquetting Machine Workshop Metal Waste PressUS$ 18600MOQ: 1 Set
-
Large Capacity Steel Scrap Briquette Press Waste Iron Chip Recycling MachineUS$ 18600MOQ: 1 Set
-
Scrap Zinc Lead Powder Briquetting Hydraulic Press Non-ferrous Metal CompactorUS$ 18600MOQ: 1 Set
Basic Info.
Model NO.
WL-630T
Customized
Customized
Condition
New
After-sales Service
Engineers Available to Service Machinery Overseas
Design Press
31.5MPa
Working Press
25MPa
Working Circle
5-10s/Cake
Control System
PLC Digital
Screw Feed Type
Speed Adjustable
Application
Cast Iron Chips, Steel Chips, Copper Chips, Alumin
Transport Package
by Sea, in 20gp Container
Specification
WL-500T pressure
Trademark
WALLE INDUSTRY
Origin
China
HS Code
8479820090
Production Capacity
10 Sets / Month
Packaging & Delivery
Package Size
450.00cm * 220.00cm * 180.00cm
Package Gross Weight
13000.000kg
Product Description
Product Description

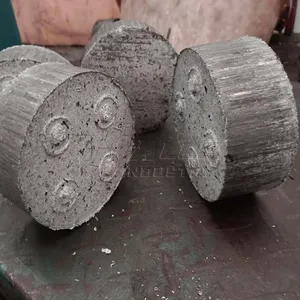

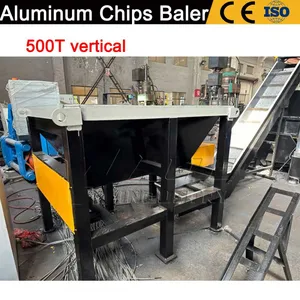

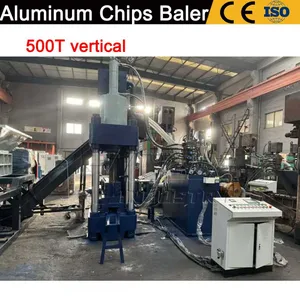

The metal chip recycling solution is mainly used for recycling all kinds of iron chips, aluminum chips, copper chips and other metal chips cut down by machine tools by pressing cake. The production line adopts fully automated disposal process, which is able to press the chips directly into cake forming, and separate the cutting oil from the cake at the same time, ensuring that the original material of the cake block is not polluted, and the cutting oil can be recycled and reused. The whole line is modularized design, the whole line of individual machines can work together efficiently and customers can plan the layout flexibly according to the production site and demand.
Detailed Photos
Application
】
| Aluminum chips | Lathe turning | Aluminum foil |
Product Parameters
| Type | Bale Size mm | Cake density (T/m3) | Cake Weight (Kg) | Shift capacity (T/8H) | Matching motor (KW) |
| Y83-150A | Φ80*(60-80) | ≥1.8 | 1.0-2.0 | 1.2-3.0 | 15 KW |
| Y83-150B | Φ80*(60-80) | ≥1.8 | 1.0-2.0 | 1.2-3.0 | 15 KW |
| Y83-200A | Φ80*(60-80) | ≥1.8 | 1.0-2.0 | 1.2-3.0 | 15 KW |
| Y83-200B | Φ80*(60-80) | ≥1.8 | 1.0-2.0 | 1.2-3.0 | 15 KW |
| Y83-250A | Φ80*(60-80) | ≥2.0 | 1.5-2.5 | 2.0-3.5 | 18.5 KW |
| Y83-250B | Φ90-110*(70-100) | ≥2.0 | 1.5-2.5 | 2.0-3.5 | 18.5 KW |
| Y83-250E | Φ90-110*(70-100) | ≥2.0 | 1.5-2.5 | 2.0-4.0 | 18.5 KW |
| Y83-315 | Φ90-110*(70-100) | ≥2.2 | 2.0-3.0 | 3.0-4.5 | 30 KW |
| Y83-360 | Φ100-140*(70-100) | ≥2.2 | 2.5-3.5 | 4.0-6.0 | 30 KW |
| Y83-500 | Φ120-150*(70-100) | ≥2.4 | 3.0-5.0 | 4.5-8.0 | 37 KW |
| Y83-630 | Φ130-160*(100-120) | ≥2.4 | 4.5-8.0 | 7.0-12.0 | 45 KW |
