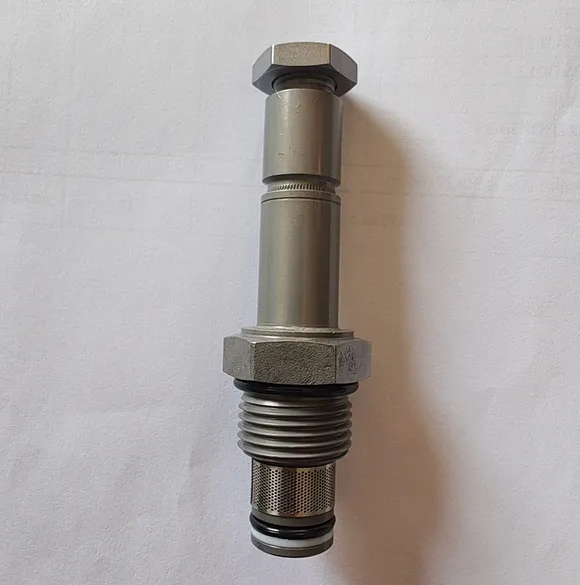

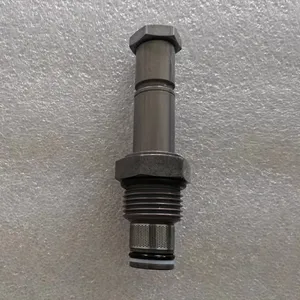

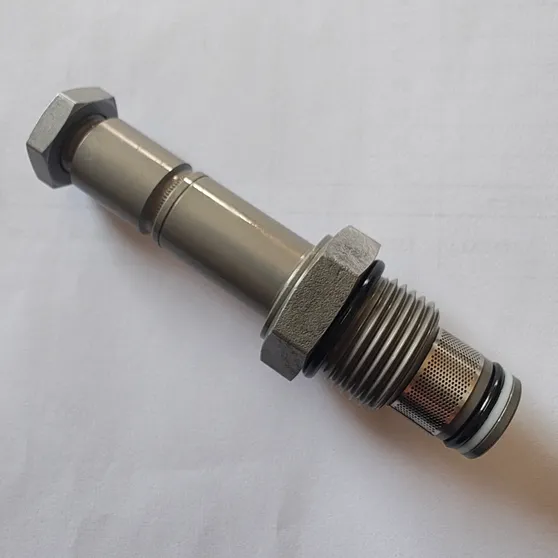

Electro-Proportational Solenoid Cartridge Flow Control Valve Normally-closed Poppet Type SP08-2NCP
Product Spotlights
Electro-Proportational cartridge flow control valve SP-08-2NCP
Electro-proportional hydraulic valve
Electro-hydraulic Flow control valve
Proportional flow control valve
Proportional pressure regulator
Cartridge flow control valve
SP-08-2NCP proportional valve
flow control electro-proportional valve
Electro-proportional hydraulic valve
Electro-hydraulic Flow control valve
Proportional flow control valve
Proportional pressure regulator
Cartridge flow control valve
SP-08-2NCP proportional valve
flow control electro-proportional valve
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2019
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CP558 Carbon Steel Hydraulic Cartridge Solenoid Valve 3 Way Proportional Flow Valve New 210bar Pressure 1 Year WarrantyNegotiableMOQ: 10 Combos -
Electro-Proportional Solenoid Cartridge Flow Control Valve Normally-closed Poppet Type 250 Bar Industrial SP10 ValveNegotiableMOQ: 10 Combos
-
Electro-Proportional Solenoid Cartridge Flow Control Valve Normally-closed Poppet Type 250 Bar Industrial PRV58 ValveNegotiableMOQ: 10 Combos
-
Electro-Proportational, Flow Control Valve PV70-30AM, Cartridge ValveNegotiableMOQ: 10 Pieces
-
2-Way, 2-Position,SV5-16-2NCSP, Hydraulic Cartrid Directional Control Valve Normally Closed ValveNegotiableMOQ: 10 Pieces
Electro-Proportional Pressure Control Cartridge Valve
Operation principle: When the coil de-energized, the valve acts a check valve, allowing flow from 1 to 2, while blocking flow from 2 to 1. When the coil energized, the 2 to 1 flow path is opened. Flow is proportional to current applied to the coil. Flow varies with manual override.
Specification
| item | SP-08-2NCP |
| Warranty | 1 Year |
| Valve type | Electro-Proportional Flow Control Cartridge valve |
| Showroom Location | none |
| Place of Origin | China |
| - | Zhejiang |
| Weight | 0.5 |
| Brand Name | hongshan |
| Maximum Pressure | 250 bar |
| Structure | cartridge type |
| Power | HYDRAULIC |
| Dimension(L*W*H) | 102*25*25mm |

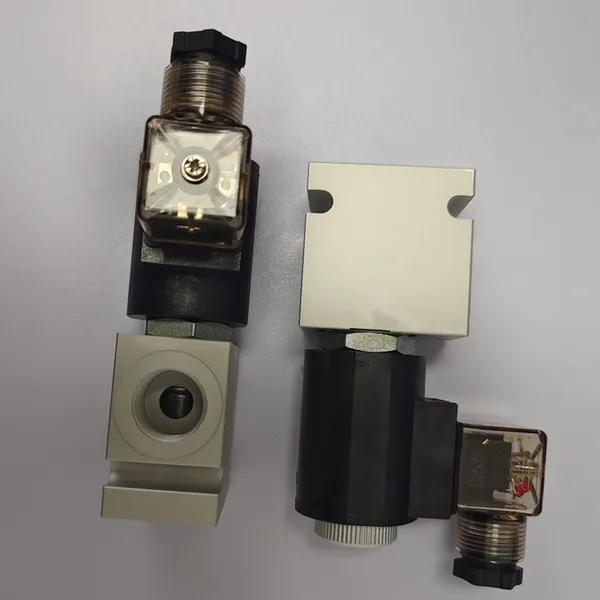

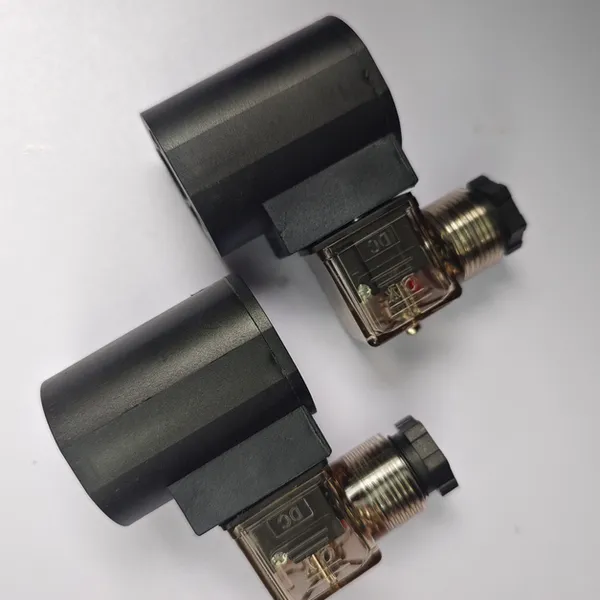

| Solenoid coil voltage | 12VDC, 24VDC, 110VAC,220VAC |
| Maximum Flow Rate | 20L/min |
