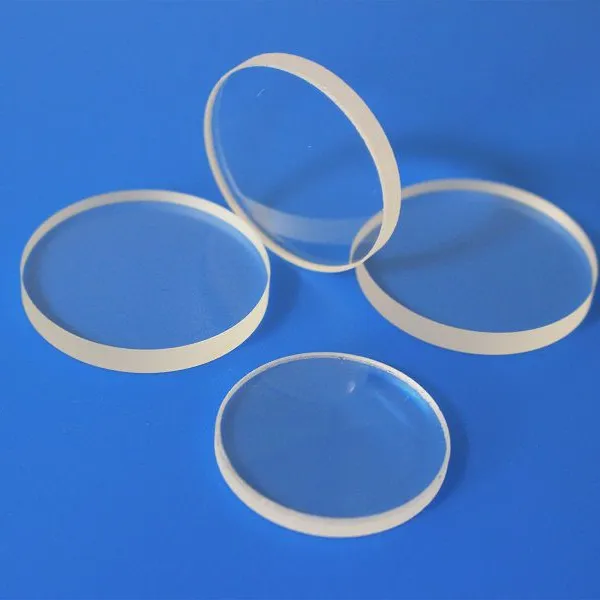

Help CenterN-BK7 Plano Convex Lens
Product Spotlights
Plano convex lenses have one plano surface and one convex surface, they have a positive focal length. Plano convex lenses are widely used for focusing and collecting light in optical instrument.
We produce plano convex lenses with crown glasses, flint glasses, UV grade fused silica glasses and infrared glasses, such as N-BK7, N-BAK4, N-SF11, JGS1, quartz, Silicon and sapphire.
US$ 2
5 - 9 Pieces
US$ 1
≥10 Pieces
Key Specifications
Get Latest Price
Material:
Optical Glass
Type:
Convex Lens
Certification:
ROHS, ISO9001
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
5 days
Related Products
Material
Optical Glass
Type
Convex Lens
Certification
ROHS, ISO9001
Shape
Single-lens
Warranty
1 year
Usage
Lighting, Medical, Optical, Photography
Lenses Color
Clear
Customized
Customized
Transmittance
>95%
Coating
Other
Trademark
SC
Origin
China
Substrate |
Optical glass N-BK7, N-BK4, UV fused silica, silicon, sapphire, etc. |
Diameter available |
1.5mm to 800mm |
Tolerance |
+/-0.02mm |
Thickness tolerance |
+0/-0.05mm |
Surface quality |
40-20 |
Irregularity |
Lambda/2 or better |
Centering |
1 arc min or better |
Chamfer |
Protective chamfer |
Coating |
Anti-reflective coating for visible, NIR, UV and infrared wavelengths or no coating |
