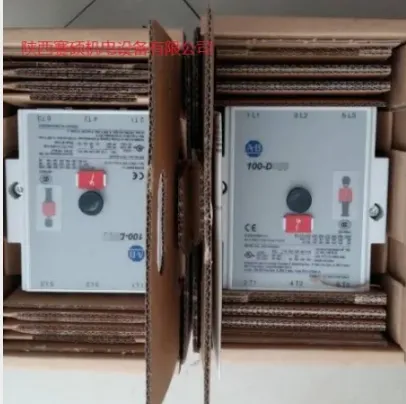

Allen-Bradley IEC 100 Contactors 100-D250ED00 100D250ED00

Product Spotlights

Genuine Allen-Bradley IEC contactor rated for 250A AC-3, built for high durability (10M+ mechanical operations) in demanding industrial motor control. Features customizable coil voltage, complies with IEC 60947-4-1, and offers flexible DIN rail or panel mounting. Ideal for reliable switching in AC-3 and AC-4 applications worldwide.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand:

Allen-Bradley

Model:

100-D250ED00 / 100D250ED00

Standard:

IEC 60947-4-1

Contact Supplier Request Quote Chat Now

Rossonix Co.,limited

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Allen-Bradley

Model 100-D250ED00 / 100D250ED00

Standard IEC 60947-4-1

Rated Operational Current (Ie) 250 A

Rated Operational Voltage (Ue) Up to 690 V AC

Utilization Category AC-3, AC-4

Coil Voltage Customizable

Number of Poles 3

Enclosure Protection (IP) IP00 (Open Type)

Mounting DIN Rail or Panel Mount

As a dedicated supplier with over a decade of experience in industrial automation components, Rossonix Co., Limited is proud to offer the genuine Allen-Bradley 100-D250ED00 IEC Contactor. We understand the critical role reliable motor control plays in your operations. This contactor is engineered for demanding industrial applications, providing robust switching performance and long-term durability. Our global logistics network ensures timely delivery to key markets worldwide, supporting your projects with quality components you can trust.

This contactor is a core component in motor starting and control circuits, designed to meet international IEC standards for performance and safety. It is built to handle the rigorous demands of industrial environments, from manufacturing plants to material handling systems.

Key Features and Technical Advantages:

High-Current Capacity: Rated for 250A at AC-3 duty, making it suitable for controlling large motors and high-power loads.
Robust Construction: Features a durable design with high-quality materials for reliable arc quenching and extended mechanical life, minimizing downtime.
Wide Voltage Compatibility: Operates effectively across a broad range of control voltages. The coil voltage is customizable to match your specific panel design requirements.
Versatile Application: Ideal for use in AC-3 (squirrel-cage motor starting and switching off) and AC-4 (inching, plugging, and rapid start/stop) duty cycles.
Global Compliance: Manufactured to the IEC 60947-4-1 standard, ensuring international recognition and compatibility in various markets.
Flexible Installation: Supports both DIN rail and direct panel mounting, offering flexibility for different cabinet layouts.

Detailed Technical Specifications:

Parameter	Specification
Product Series	Allen-Bradley 100-D
Rated Operational Current (Ie) at AC-3	250 A
Rated Operational Voltage (Ue)	Up to 690 V AC, 50/60 Hz
Rated Insulation Voltage (Ui)	1000 V
Rated Conditional Short-Circuit Current (Iq)	Data available upon request
Mechanical Durability	10 million operations (minimum)
Electrical Durability (AC-3)	Up to 1.5 million operations
Auxiliary Contacts	Configurable options available
Terminal Type	Screw clamp

Benefits for Your Business: Integrating the Allen-Bradley 100-D250ED00 into your systems translates into tangible operational benefits. Its high reliability reduces the risk of unexpected motor failures, protecting your production schedule. The long electrical and mechanical lifespan lowers total cost of ownership by reducing replacement frequency. Furthermore, its compliance with IEC standards simplifies integration into global projects and ensures a level of safety and performance recognized by engineers worldwide.

Rossonix Co., Limited, established in 2011 and holding ISO 9001 certification, has built a reputation for supplying genuine, high-performance components. With an annual export value ranging between US$5-10 Million and a strategic presence via ports in Shenzhen, Hong Kong, and Europe, we efficiently serve a diverse clientele across North America, South America, Europe, Asia, and Oceania. Our team of 11-50 professionals is dedicated to ensuring you receive not just a product, but a reliable solution backed by consistent quality and dependable supply chain support. Choose the Allen-Bradley 100-D250ED00 for your high-power control needs and experience the difference that proven reliability and expert support can make. Contact us today for pricing, stock availability, and technical specifications tailored to your project.

Frequently Asked Questions (FAQ):

Q: What is the main difference between AC-3 and AC-4 utilization categories?
A: AC-3 is for starting and stopping squirrel-cage motors during normal operation. AC-4 covers more severe duties like inching, plugging, and rapid start/stop cycles, which generate higher electrical stress. This contactor is rated for both.
Q: Can the coil voltage be specified for my order?
A: Yes. The 100-D250ED00 is available with various standard coil voltages (e.g., 24V AC/DC, 110V AC, 230V AC). Please specify your required control voltage when inquiring.
Q: Is this a direct replacement for other brand contactors of similar rating?
A: While it may be functionally similar, physical dimensions, mounting footprint, and terminal layouts differ. Always consult the technical datasheet and possibly a cross-reference guide or our technical support for confirmation before replacement.
Q: Does this unit include auxiliary contacts?
A: The base unit is typically a main contactor. Auxiliary contact blocks (normally open or normally closed) are available as add-on accessories to provide signaling or interlocking functions.
Q: What is the shipment lead time for this product?
A: Lead times vary based on stock levels and order quantity. We maintain inventory for fast-moving items and can provide an estimated delivery schedule upon receipt of your inquiry.
Q: What protection degree (IP rating) does this contactor have?
A: The 100-D250ED00 is an open-type (IP00) contactor designed for installation inside a protective enclosure or control panel to shield it from dust and moisture.
Q: Are thermal overload relays required to be used with this contactor?
A: For complete motor protection, a properly sized thermal overload relay or motor protection circuit breaker should be used in series with the contactor. This contactor is the switching component.
Q: Do you provide technical documentation and certificates?
A> Yes. Product datasheets, installation manuals, and certificates of conformity are available upon request to support your engineering and compliance needs.
