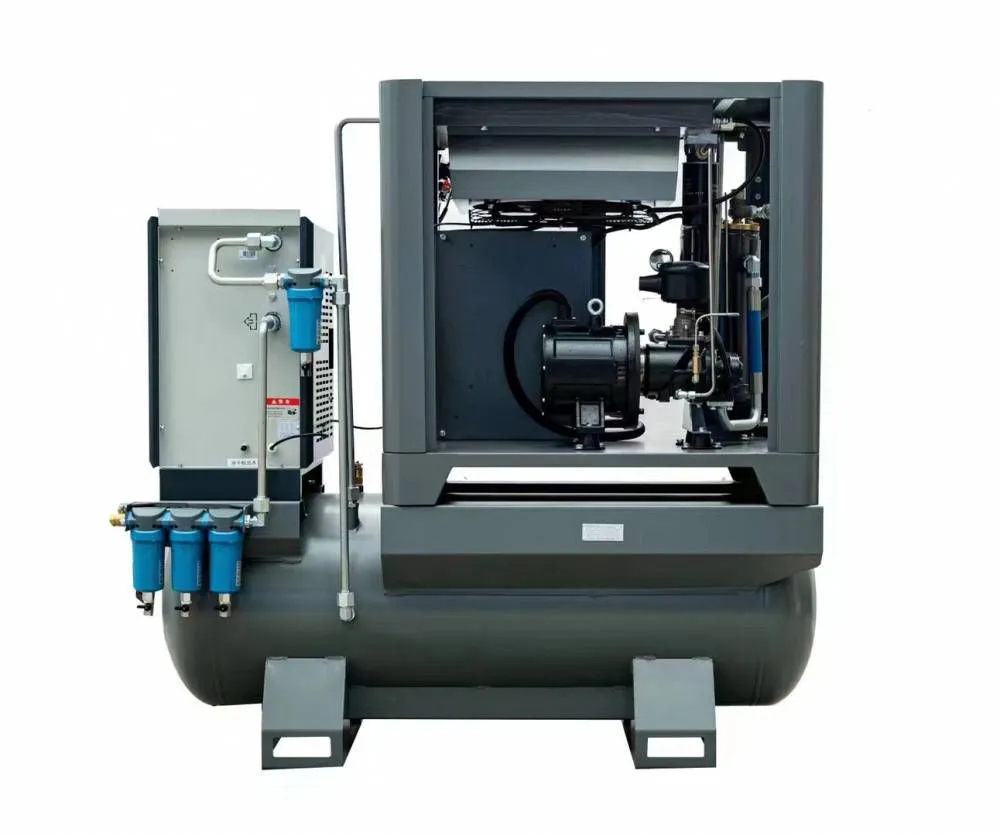

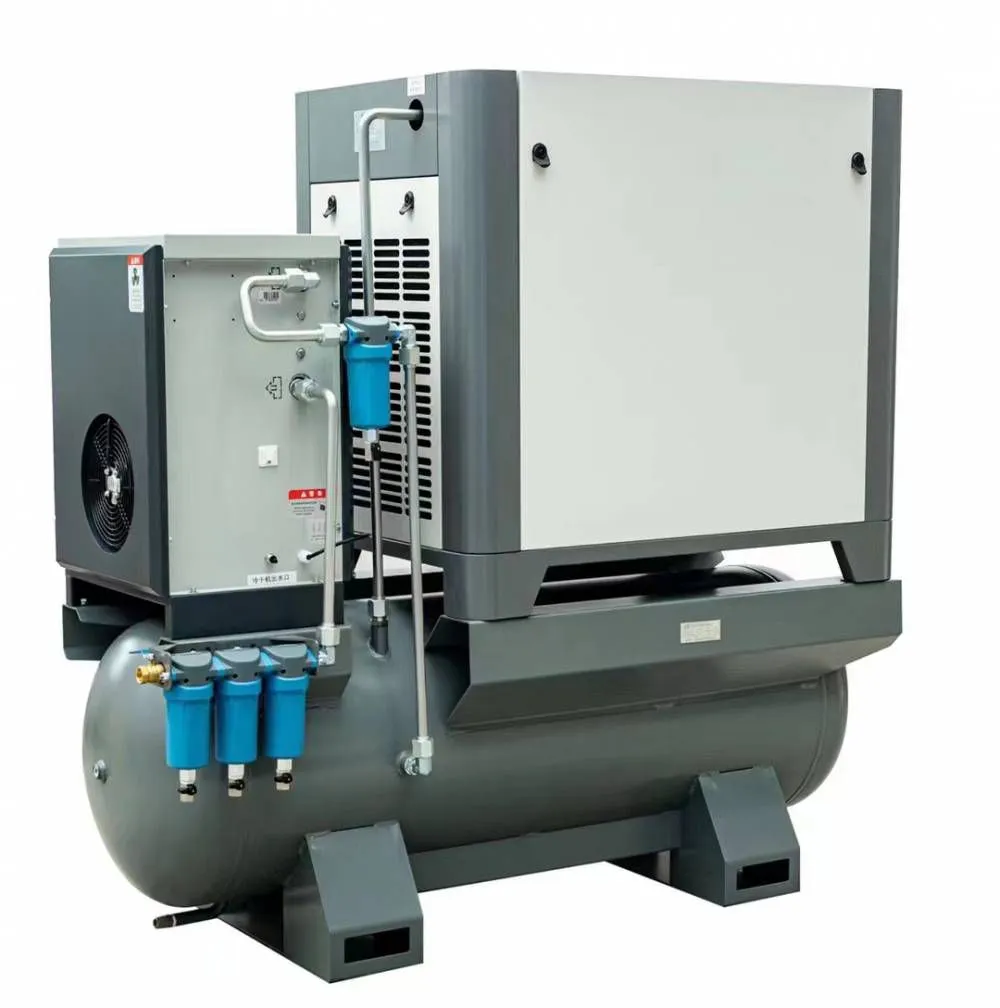

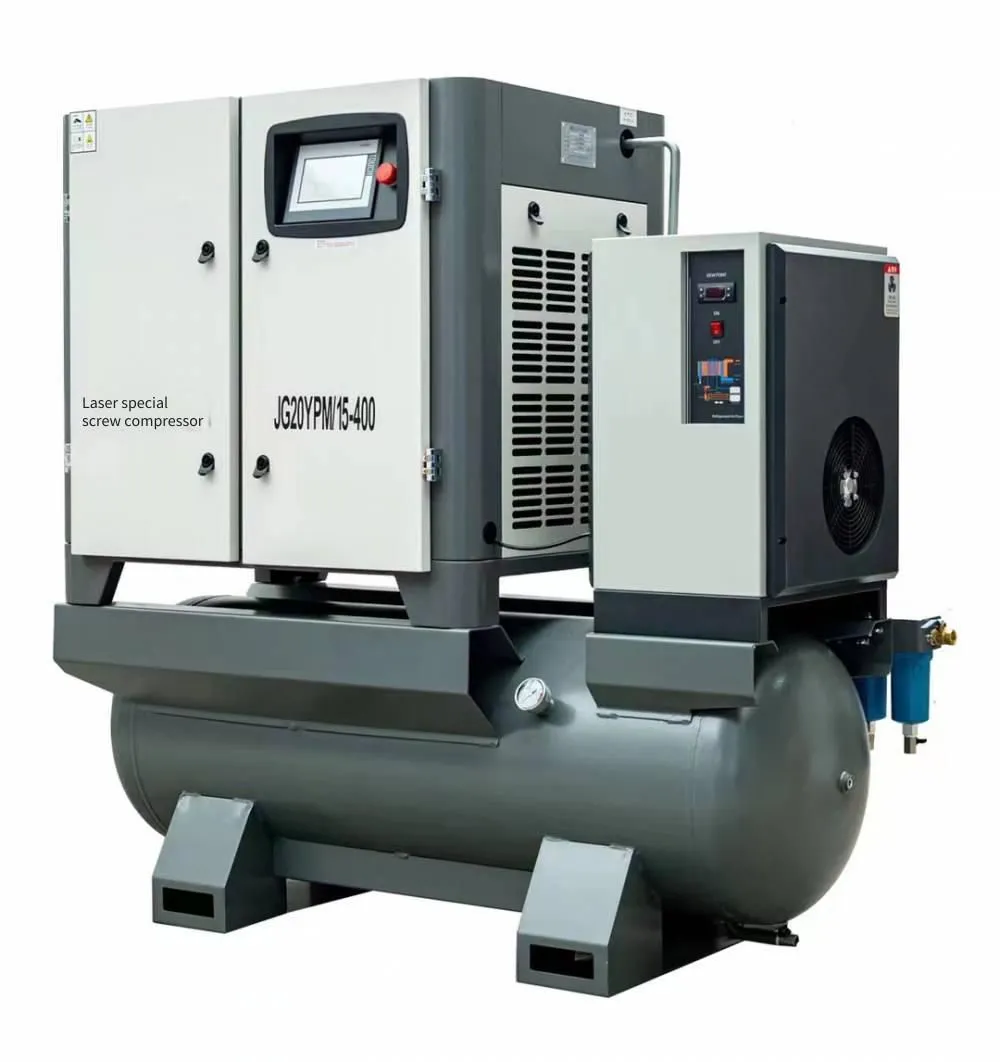

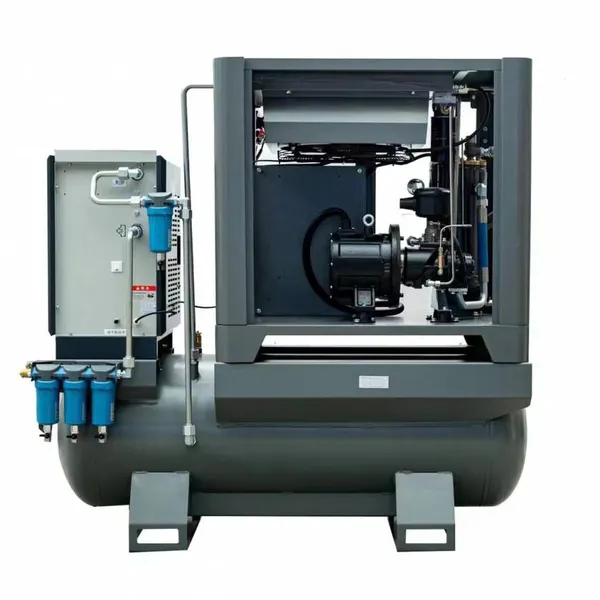

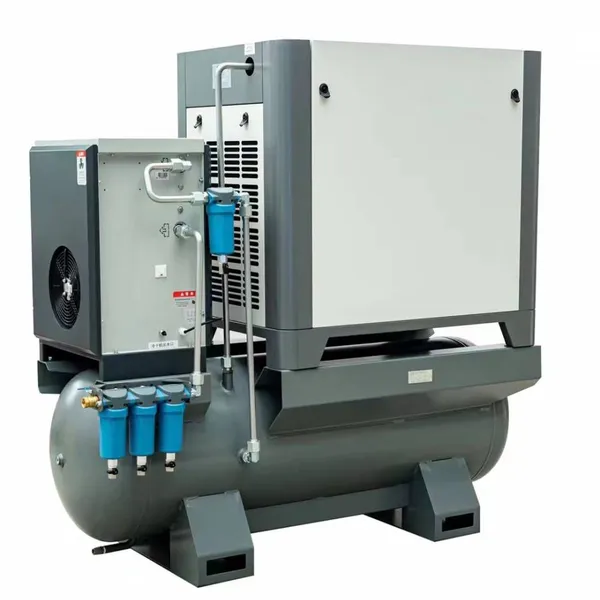

Help Center15kw/16kg Integrated Permanent Magnet Variable Frequency High-pressure Air Compressor for Laser Cutting Machines
Related Products
-
Price for Maintenance and Repair of 175 hp Air CompressorsNegotiableMOQ: 0 Unit -
Sales, Repair and Maintenance Services for Gantry Air CompressorsNegotiableMOQ: 0 Unit
-
Service Phone Number for Maintenance and After - Sales Service of Hanko Air CompressorsNegotiableMOQ: 0 Unit
-
Service Hotline for Maintenance and After - Sales Service of Southern Jucai Air CompressorsNegotiableMOQ: 0 Unit
-
Sales, Repair and Maintenance Services for Air Compressors in DayawanNegotiableMOQ: 0 Unit
The air compressor for the laser cutting machine is configured according to the processing requirements with air compressors of different air volumes and pressures. Most laser cutting machines require a pressure of 10 to 12 kilograms for processing. In some cases, the pressure needs to reach 15 kilograms. In terms of air volume, most are between 1 cubic meter and 2 cubic meters. The power of the selected air compressor is from 7.5KW to 15KW. The specific configuration size of the air compressor is determined by the air volume required per minute by the connected equipment.
The laser cutting machine needs a gas source as power during operation, and it is a gas source with pressure. The pressure generally needs to be 10 to 12 kilograms. A 500W laser cutting machine requires an air volume of about 1 cubic meter per minute. There are generally three types of gas sources: nitrogen, oxygen, and compressed air. In terms of the use of these three gases, buying a screw air compressor with a power of 7.5KW and a pressure of 13 kilograms can meet the processing requirements. Generally, the price of a barrel of liquid oxygen is about 500 yuan. If it is used for 8 hours a day, it will be used up in about 4 days. The electricity cost for the compressed air obtained by the screw air compressor is about 240 yuan (assuming the electricity price is 1 yuan per kilowatt - hour, the cost of a 7.5KW air compressor working 8 hours a day is about 60 yuan per day), which is about half less than using liquid oxygen.
A 500W laser cutting machine is generally equipped with a 7.5KW screw air compressor with a pressure of 10 to 12 kilograms. The specific pressure depends on the thickness of the cutting product. If high - quality air is required, a refrigerated dryer and a gas storage tank also need to be equipped, so that the qualification rate of the produced products will be higher.
For laser cutting machines above 500W, please call us for consultation. The specific size of the air compressor to be equipped depends on the cutting conditions.
