Help CenterHigh-Strength PA66 A3W2G10 Nylon Polymer for Automotive Components
Product Spotlights
Related Products
-
PA66 Injection Molding Grade A60X1 Material With Enhanced Thermal Stability for Electrical InsulationNegotiableMOQ: 1 Kilogram -
Nylon 66 14G15 High Rigidity Grade for Mechanical Structural ComponentsNegotiableMOQ: 1 Kilogram
-
PA66 Granules 13G15 High Gloss Grade for Consumer Electronics HousingNegotiableMOQ: 1 Kilogram
-
PA66 Granules 1402S Standard Grade for General Engineering ApplicationsNegotiableMOQ: 1 Kilogram
-
Nylon 66 14G25 Enhanced Wear Resistance Grade for Gears and BushingsNegotiableMOQ: 1 Kilogram
As a specialized manufacturer in advanced engineering plastics, Shanghai Wenqin Plastics Co., Ltd. is proud to introduce our High-Strength PA66 A3W2G10 Nylon Polymer, a premium material engineered specifically for demanding automotive applications. With our commitment to quality and technical expertise developed since our establishment in 2020, we provide material solutions that help automotive component manufacturers achieve superior performance, reliability, and efficiency in their products. This particular grade represents a significant advancement in nylon polymer technology, offering an optimal balance of mechanical strength, thermal resistance, and processing characteristics that are critical in today's automotive industry.
Our High-Strength PA66 A3W2G10 is formulated to meet the rigorous requirements of modern automotive engineering, where components must withstand extreme conditions while maintaining dimensional stability and longevity. The material's properties make it an excellent choice for both under-the-hood applications and structural components where failure is not an option. We understand that automotive manufacturers need materials that not only perform but also contribute to manufacturing efficiency and cost-effectiveness, which is why we've optimized this grade for excellent processability alongside its outstanding physical properties.
Core Technical Specifications and Properties:
This specialized nylon polymer offers a comprehensive set of properties that make it suitable for various automotive applications:
Enhanced Mechanical Strength: The A3W2G10 formulation provides significantly improved tensile strength and impact resistance compared to standard PA66 grades, ensuring components can withstand mechanical stresses encountered in automotive environments.
Superior Thermal Performance: With excellent heat deflection temperature and thermal aging resistance, this material maintains its properties across a wide temperature range, from sub-zero conditions to elevated under-hood temperatures.
Chemical Resistance: Demonstrates good resistance to automotive fluids including oils, greases, coolants, and mild cleaning agents, ensuring long-term performance in challenging environments.
Dimensional Stability: Low moisture absorption characteristics contribute to excellent dimensional stability, reducing warpage and ensuring consistent part dimensions throughout the product lifecycle.
Processing Advantages: Optimized flow characteristics facilitate easier molding of complex geometries and thin-walled components, potentially reducing cycle times and improving manufacturing efficiency.
Detailed Technical Parameters:
| Property | Test Method | Typical Value | Unit |
|---|---|---|---|
| Tensile Strength (Yield) | ASTM D638 | 85-95 | MPa |
| Flexural Modulus | ASTM D790 | 3200-3500 | MPa |
| Impact Strength (Notched Izod) | ASTM D256 | 5.5-7.0 | kJ/m² |
| Heat Deflection Temperature (1.8 MPa) | ASTM D648 | 220-235 | °C |
| Melting Temperature | DSC | 260-265 | °C |
| Density | ASTM D792 | 1.14-1.16 | g/cm³ |
| Moisture Absorption (Equilibrium, 23°C/50% RH) | ASTM D570 | 2.5-2.8 | % |
Application Advantages for Automotive Manufacturers:
The specific formulation of our PA66 A3W2G10 provides tangible benefits throughout the automotive component manufacturing and usage cycle:
Component Weight Reduction: The high strength-to-weight ratio allows for potential weight savings in components, contributing to overall vehicle efficiency improvements without compromising performance or safety.
Extended Component Lifespan: Enhanced resistance to thermal aging and environmental stress cracking means components made from this material can maintain their integrity and functionality over longer service periods.
Manufacturing Efficiency: The material's processing characteristics can lead to reduced cycle times, lower reject rates, and improved mold filling in complex geometries, contributing to overall production cost savings.
Design Flexibility: The combination of properties enables engineers to design components that might not be feasible with other materials, potentially consolidating multiple parts into single molded components.
Consistent Quality: Our manufacturing processes ensure batch-to-batch consistency, reducing variability in component production and contributing to more predictable assembly processes.
Target Automotive Applications:
This high-strength PA66 grade is particularly suitable for numerous automotive components where performance under stress is critical:
Under-Hood Components: Including connectors, housings, clips, and fasteners that must withstand elevated temperatures and exposure to automotive fluids.
Structural Components: Such as brackets, supports, and reinforcement elements that require both strength and dimensional stability.
Fuel System Parts: Components that come into contact with fuels and require specific chemical resistance properties.
Electrical/Electronic Applications: Connectors, sensor housings, and other components that benefit from the material's electrical insulation properties and thermal performance.
Interior Components: Structural interior parts that require both strength and the ability to meet automotive interior material standards.
Quality Assurance and Technical Support:

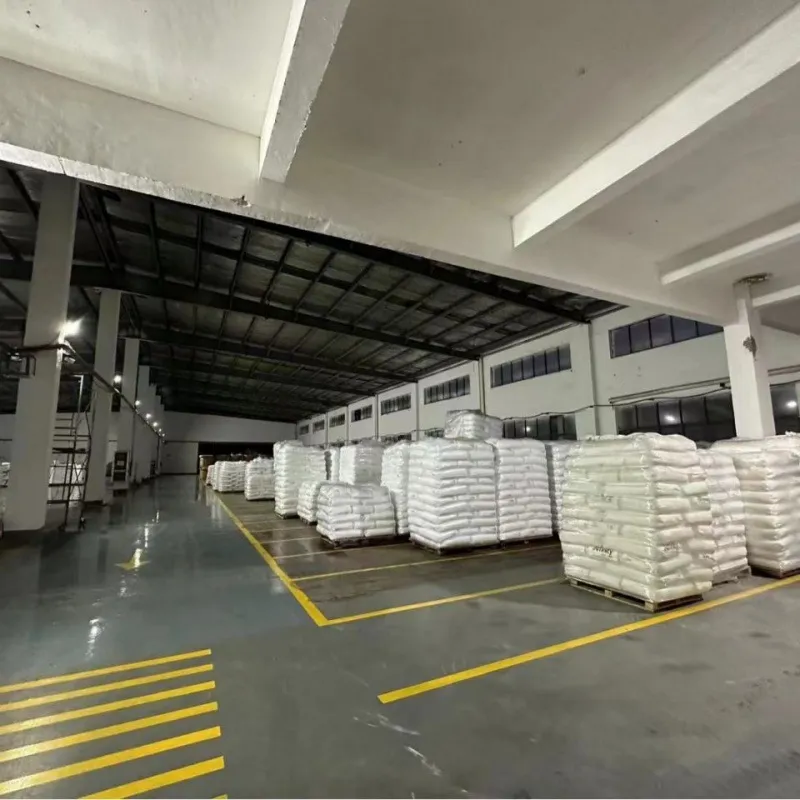

Our manufacturing facility, though compact at under 1,000 square meters, is equipped with advanced production and testing equipment to ensure consistent quality. We maintain rigorous quality control protocols throughout the production process, from raw material selection to final packaging. Technical support is available to assist customers with material selection, processing parameter optimization, and troubleshooting to ensure successful implementation in your manufacturing processes.
Frequently Asked Questions:
Q1: What distinguishes the A3W2G10 grade from standard PA66 materials?
A1: The A3W2G10 grade is specifically formulated with enhanced mechanical properties, particularly in terms of impact strength and thermal stability. This specialized formulation makes it more suitable for demanding automotive applications where standard PA66 might not provide sufficient performance margins.
Q2: How does this material perform in high-temperature automotive environments?
A2: With a heat deflection temperature typically between 220-235°C at 1.8 MPa, this material maintains its structural integrity well under typical under-hood temperatures. Its thermal aging resistance also ensures that properties remain stable over extended periods at elevated temperatures.
Q3: What processing considerations are important when using this material?
A3: Proper drying is essential, as with all nylon materials. We recommend drying at 80-90°C for 4-6 hours to achieve moisture content below 0.2%. Melt temperatures typically range from 270-290°C, with mold temperatures of 70-100°C recommended for optimal crystallization and properties.
Q4: Can this material be used in contact with automotive fuels and fluids?
A4: Yes, this grade demonstrates good resistance to many automotive fluids including engine oils, transmission fluids, brake fluids, and coolants. However, we recommend testing for specific applications involving prolonged contact with particular chemicals.
Q5: What are the typical lead times for this material?
A5: Standard grades are typically available from stock or with short lead times. For custom formulations or large volume orders, lead times can be discussed based on specific requirements and quantities.
Q6: Is this material suitable for metal replacement applications?
A6: Absolutely. The high strength-to-weight ratio and good fatigue resistance make this material an excellent candidate for replacing metal components in many applications, potentially reducing weight and eliminating corrosion concerns while maintaining necessary mechanical performance.
Q7: What packaging options are available?

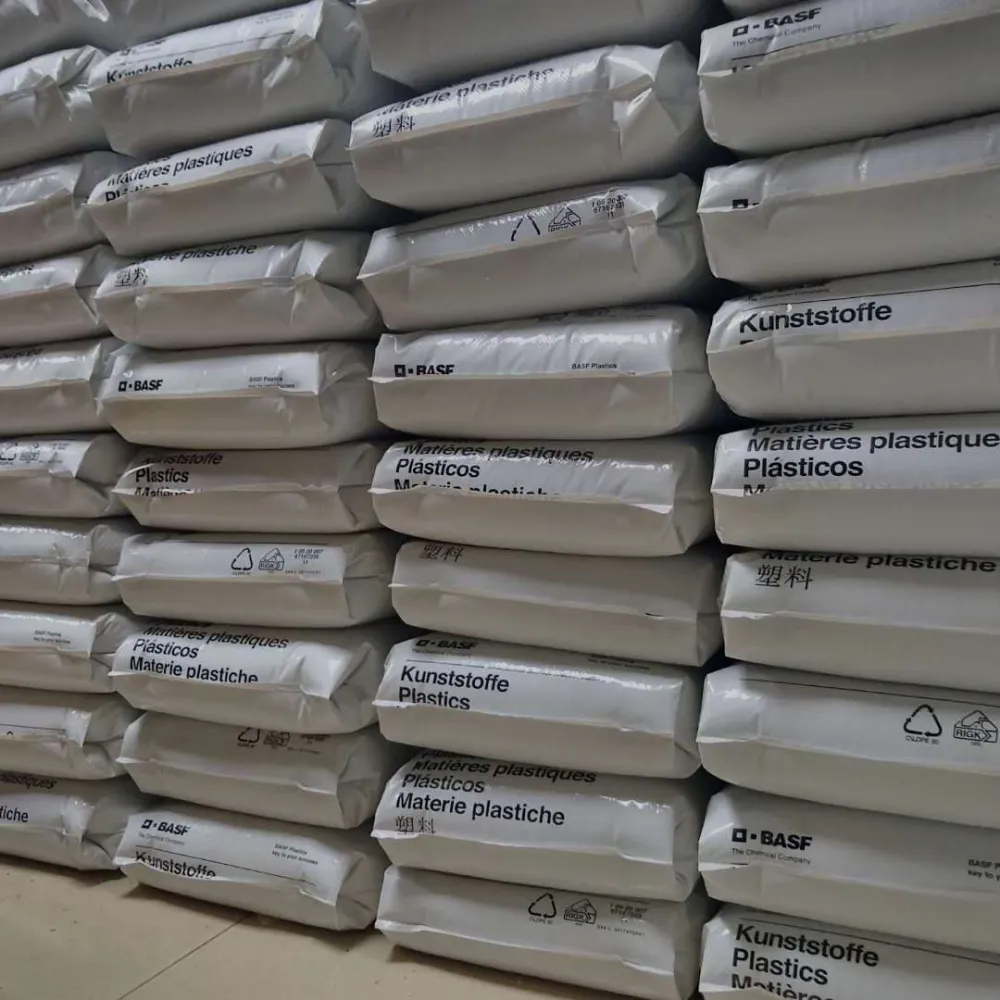

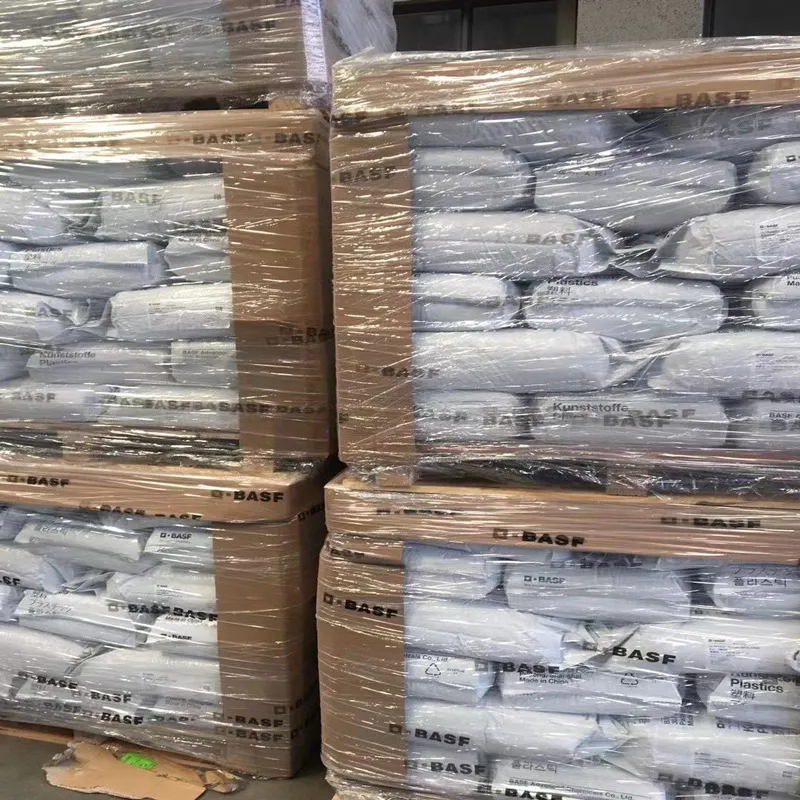

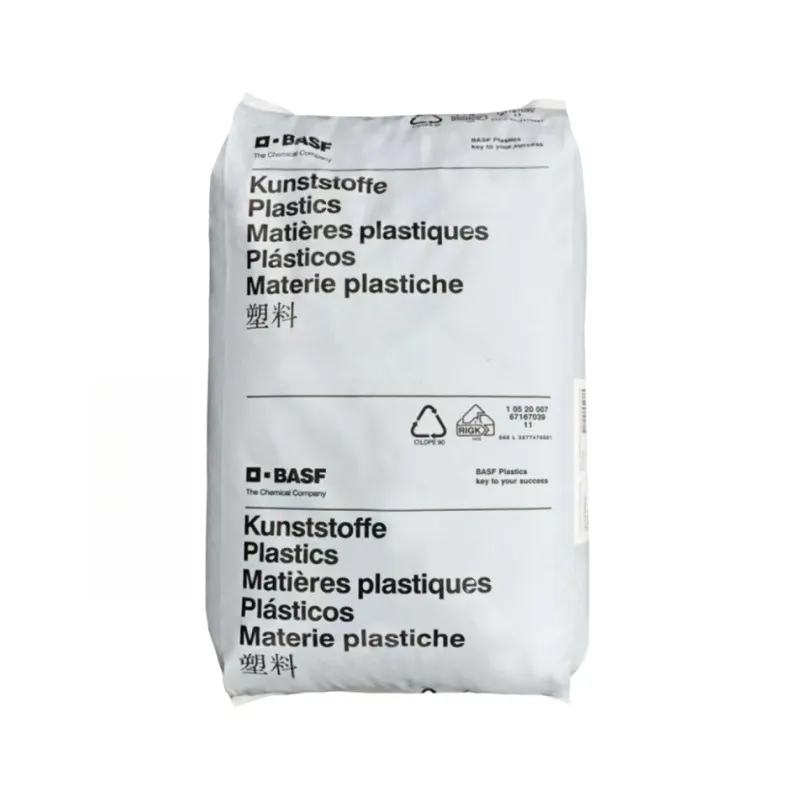

A7: Standard packaging is 25 kg polyethylene-lined bags on pallets. We can accommodate various packaging requirements including bulk bags or customer-specific packaging upon request.
Q8: Do you provide material data sheets and processing guidelines?
A8: Yes, comprehensive technical data sheets and detailed processing guidelines are available for all our materials. These documents include complete property data, processing recommendations, and safety information.
With our established presence in global markets including North America, Europe, and Asia, and our commitment to quality demonstrated through our management systems, Shanghai Wenqin Plastics has built a reputation for reliability in the engineering plastics sector. Our strategic location in Shanghai facilitates efficient logistics through major ports, ensuring timely delivery to customers worldwide. The specific formulation of our High-Strength PA66 A3W2G10 represents our understanding of automotive industry requirements and our capability to develop materials that address these needs effectively. We invite automotive component manufacturers to evaluate this material for their applications and experience the performance advantages it offers. Contact our technical team to discuss your specific requirements, request samples for testing, or learn more about how this material can enhance your automotive components.
