Appliance
Eddy current separator is mainly used to recycle copper, aluminum and other non-ferrous metals from domestic garbage, industrial waste, electric waste, glass waste, bottom ash of boiler, automobile scraps etc. It can be widely used in garbage processing, used electric equipment recycling and non-ferrous metals process fields, like:
1. Electronic waste disposal (electrical household appliances dismantling line, refrigerator dismantling line, computer dismantling line etc.)
2. Separation of aluminum cans and ferrous metals
3. Separate non-ferrous metals from the bottom ash of boiler
4. Separate aluminum or copper block from the sections of abandoned cars.
5. Separate non-ferrous metals from the glass scrap
6. Separate non-ferrous metal impurities in some production lines(such as plastic recycling production line)
7. Separate non-ferrous metals from recycled plastic doors and windows
8. Separate non-ferrous metals from the wood
High-Efficiency Sorting: Achieves a sorting efficiency of over 98%, capable of separating fine particles as small as 2mm; features high throughput and ensures continuous, stable operation.
Wide Applicability: Versatile enough to process a broad range of materials, including steel scrap tailings, electronic waste, automotive dismantling waste, waste plastics, crushed glass, slag, thermal-break aluminum, mixed metals, and more.
Stable and Durable: Built with a high-strength frame, a permanent magnetic system, and variable frequency speed control; features one-touch PLC operation, ensuring a low failure rate and simple maintenance.
Energy-Efficient and Eco-Friendly: Generates no secondary pollution and consumes minimal energy; serves as an automated alternative to manual sorting, significantly reducing operational costs while enhancing metal purity and added value.
Flexible Adaptability: Available in multiple models with belt widths ranging from 300mm to 1500mm; fully customizable to ensure seamless integration with both new and existing production lines.
Our Advantages
It has a good separating result for multiple non-ferrous metals, strong adaptability, reliable structure, strong repulsion (adjustable) with high separating efficiency
When the machine running, it will produce high frequency alternating magnetic field on magnetic roller; if conductive nonferrous metal go though the magnetic field, it will produce induced current and this induced current will produce magnetic field opposite with original magnetic field, then the nonferrous (for example, aluminum, copper etc.) metal will fly ahead according its transporting direction by repulsive force of the magnetic field, hence, nonferrous metal is separated from other non-metal material. Main standard: ratio of material's conductivity and material's density; material with high ratio is more easy to be separated than material with low ratio
Product Parameters
| Type | Belt width (mm) |
Gs |
Drum dia (mm) |
speed r/min |
frequency (mm) |
belt speed(mm) | capacity m³/h |
power (KW) |
Belt conveyor power (KW) |
Weight (t) |
| WL-300 | 300 | ≥3000 | 320 | 2880 | 0~60Hz | 0~2m/s | 2~3 | 4 | 1.1 | 1.1 |
| WL-400 | 400 | 3~4 | 4 | 1.1 | 1.2 | |||||
| WL-500 | 500 | 4~5 | 4 | 1.1 | 1.4 | |||||
| WL-600 | 600 | 5~6 | 4 | 1.1 | 1.5 | |||||
| WL-650 | 650 | 5~7 | 4 | 1.1 | 1.7 | |||||
| WL-700 | 700 | 6~8 | 5.5 | 1.1 | 1.9 | |||||
| WL-750 | 750 | 7~9 | 5.5 | 1.1 | 2.1 | |||||
| WL-800 | 800 | 8~10 | 7.5 | 1.1 | 2.5 | |||||
| WL-1000 | 1000 | 9~11 | 7.5 | 1.5 | 3.1 | |||||
| WL-1200 | 1200 | 10~12 | 11 | 2.2 | 3.5 | |||||
| WL-1400 | 1400 | 12~14 | 11 | 2.2 | 3.9 | |||||
| WL-1500 | 1500 | 13~15 | 11 | 2.2 | 4.3 | |||||
| WL-2000 | 2000 | 17~20 | 15 | 3 | 5.2 |

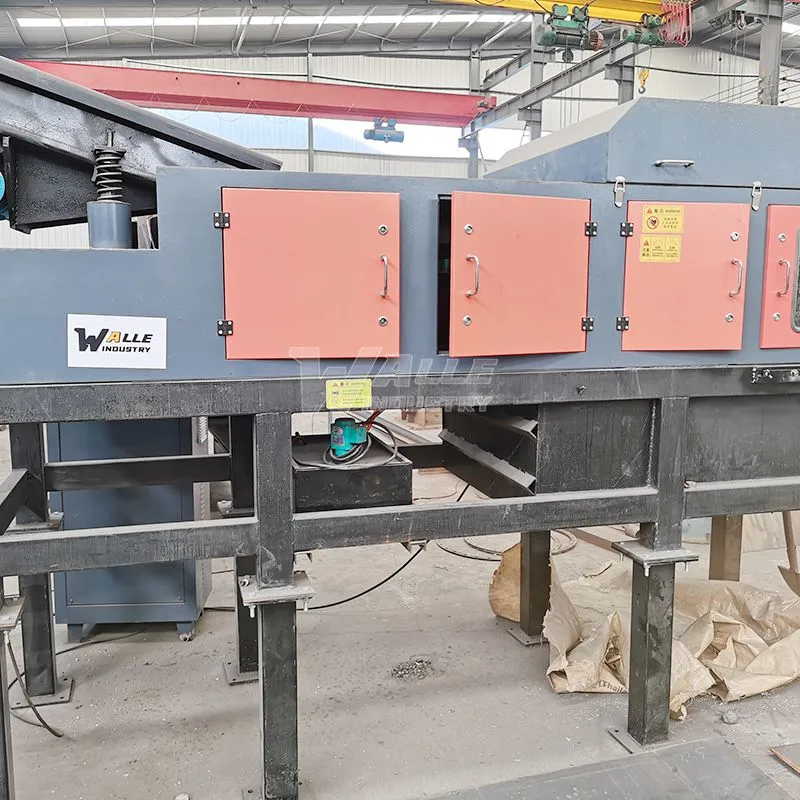

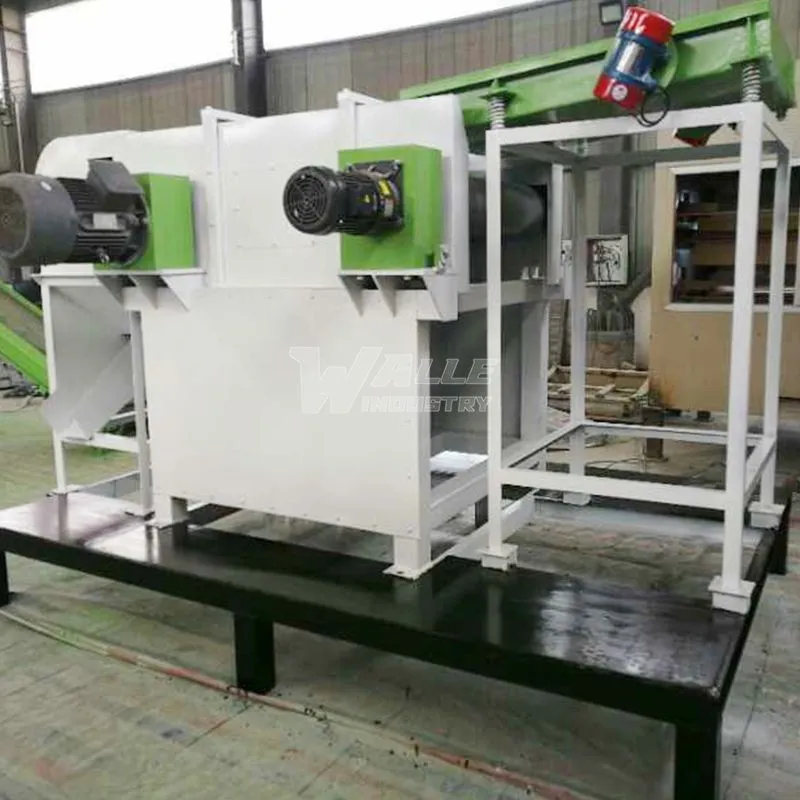

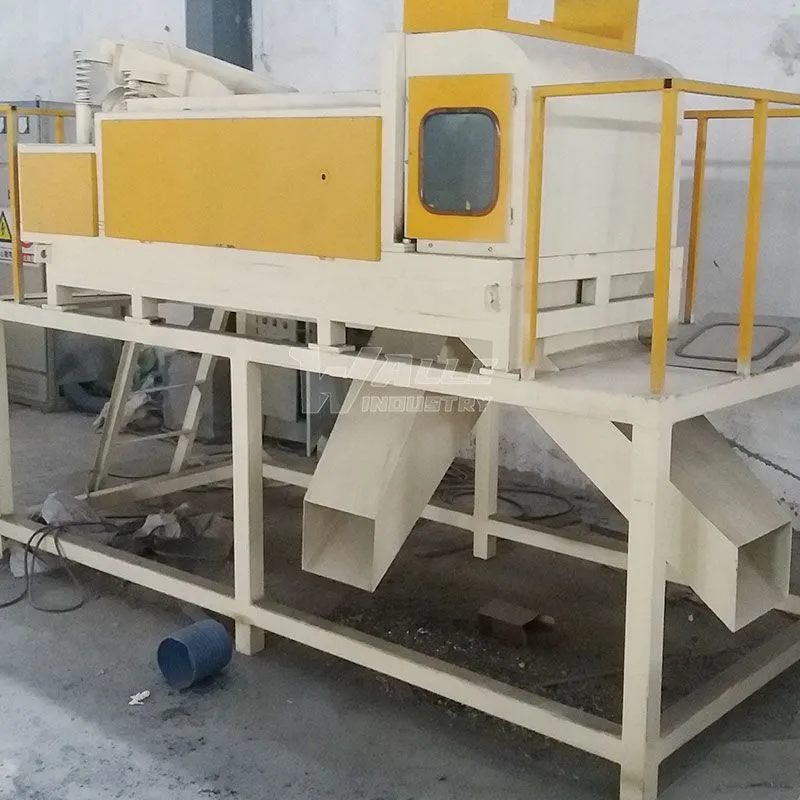

Detailed Photos
Scrap Metal Recycling: Purification of copper, aluminum, and zinc from shredded steel residues, dismantled automotive materials, and mixed metal scrap.
E-Waste Processing: Recovery of copper, aluminum, and precious metals from circuit boards, wires and cables, and discarded household appliances.
Plastics / Glass Industries: Removal of metal impurities from plastic flakes and shredded plastics; separation of aluminum caps and rings from cullet (crushed glass).
Municipal Waste / Incinerator Slag: Sorting of non-ferrous metals and resource recovery from urban waste and bottom ash.
Industrial Waste: Metal separation and purification from foundry sand, boiler ash, aluminum profile scrap, and thermal-break aluminum waste.
【Application Fields】
Scrap Metal Recycling: Purification and recovery of copper, aluminum, and zinc from shredded scrap metal tailings, automotive dismantling residues, and mixed metal scraps.
Electronic Waste Processing: Recovery of copper, aluminum, and precious metals from circuit boards, electrical wires and cables, and discarded household appliances.
Plastics & Glass Industries: Removal of metal impurities from plastic bottle flakes and shredded plastics; removal of aluminum caps and rings from cullet (crushed glass). Municipal Solid Waste / Incineration Slag: Separation of non-ferrous metals from urban waste and bottom ash for resource recovery.
Industrial Waste: Metal separation and purification from foundry sand, boiler ash, aluminum profile scrap, and thermal-break aluminum scrap.
