Product Overview

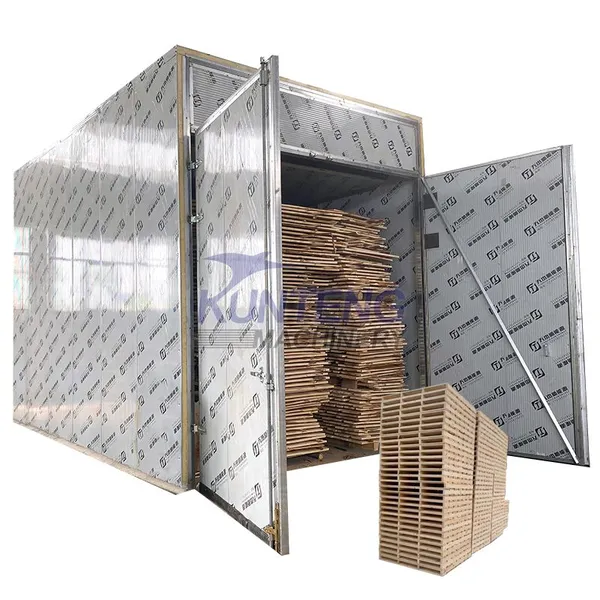

KUNTENG container wood klin dryer, hot air dried timber drying machine, oak timber dryer, wood pine sawn timber dryer, Through adjusts the environmental humidity and temperature inside the room to dry the wood. After 6-8 hours of high-temperature wood drying process, all parasitic moths and worm eggs inside the wood can be killed. and the dried wood moisture can reach less than 15%. This is a static drying process, and the operation is uniform and stable, avoiding problems such as internal cracking, end cracking and deformation of the wood in the drying process.It is an ideal timber dryer.
Timber dryer Advantages:
1. Electric heating, static uniform drying, compared to traditional boilers,no waste gas, no waste heat,no noise pollution, Safety and environmental protection. 2. Heat pump drying process recover steam condensation heat,saving heat energy,and the operating cost is equivalent to the cost of burning wood. 3. The temperature can reach 75-85 degrees Celsius, fully automatic adjustment, constant temperature and uniform drying. 4. Fully automatic, after adjust the temperature and time,No need for manual work,saving labor costs.
Timber dryer application:
Wood drying, plywood drying, timber drying, wooden plank drying, branches drying, walnut wood drying,wood board drying,square wood drying,wood veneer drying,wooden pallets drying,Bamboo drying,Bamboo pieces drying,pine wood drying,lumber drying,hardwood lumber drying,etc.
Our service:
1.According to your special requirements, design customized solution and manufacture timber dryer for you.
2.Our group has several experienced technicians with passports ready to go for installation, when installation service is needed, the client should pay for technicians' round way air tickets, food and lodging, most importantly to guarantee the technician's safety.
3.After installation, leaving 1-2 technical staff to help you on-site production, until achieve customer satisfaction.

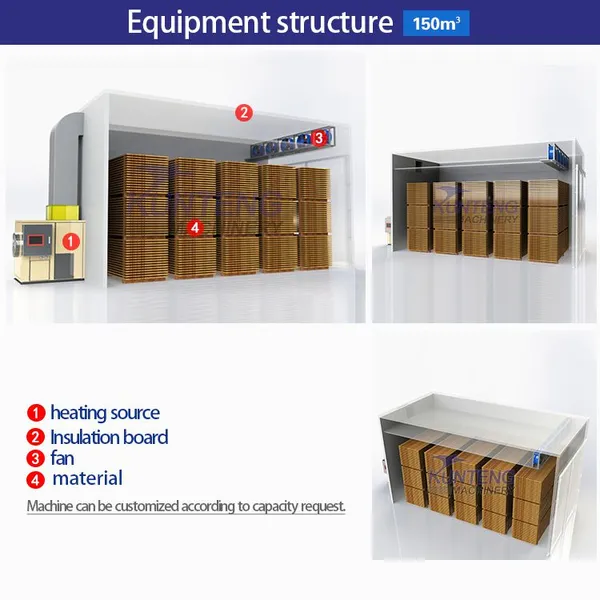

Main components of wood dryer
Heat pump
The timber dryer includes a Copeland compressor and a condenser,which have heating and dehumidifying functions. During the dehumidification process,only the moisture in the material will be discharged,the hot air in the timber dryer will not be discharged.
PLC system
Industrial PLC touch screen controller is adopted which is easy to operate,can be turned on and off regularly and stand by different drying temperature and time can be set to meet the drying requirements of different materials.
Fan
Container wood klin dryer, hot air dried timber drying machine, oak timber dryer, wood pine sawn timber dryer, has different quantity fans.It can ensure hot air recycling evenly in the timber dryer,make the materials contact hot air more evenly.
Drying board
Container wood klin dryer, hot air dried timber drying machine, oak timber dryer, wood pine sawn timber dryer,Inside and outside adopt color steel,middle 10CM polyurethane board,bottom with insulation board.This material is sturdy and durable, with excellent insulation function.
Product parameters
Container wood klin dryer, hot air dried timber drying machine, oak timber dryer, wood pine sawn timber dryer |
||||
Model |
Size |
Power |
Fan |
Weight |
KT-30 |
3*3*3.5 m |
10.1 kw |
0.37 kw*3 |
1200 kg |
KT-50 |
6*3*3 m |
13 kw |
0.58 kw*3 |
1500 kg |
KT-100 |
6*4*4.5 m |
17.9 kw |
0.58 kw*5 |
1900 kg |
KT-150 |
8*4*4.5 m |
25.4 kw |
0.58 kw*5 |
2200 kg |
KT-200 |
11*4*4.5 m |
34.64 kw |
0.58 kw*8 |
2800 kg |
KT-300 |
11*6*4.5 m |
50.8 kw |
0.58 kw*10 |
3300 kg |
KT-400 |
11*8*4.5 m |
74.46 kw |
0.58 kw*12 |
4500 kg |
KT-500 |
14*8*4.5 m |
98.12 kw |
0.58 kw*14 |
5300 kg |
RELATED PRODUCTS
Wood microwave dryer
Wood sawdust dryer
Wood carbonization furnace
Vegetable mesh belt dryer
COMPANY PROFILE
KUNTENG company was founded in 1999, located in Zhengzhou Henan province, China.We have been engaged in manufacturing all kinds of drying equipment such as container wood klin dryer, hot air dried timber drying machine, oak timber dryer, wood pine sawn timber dryer,Heat pump drying oven,Mesh belt dryer machine,Charcoal making machine,Coconut fiber extraction machine. We got more patented technologies and honor. Our machine has passed ISO9001:2000CCC,CE certification, We provide customers with a one-stop service of design solutions, complete equipment, on-site installation,and after-sales support. Welcome to cooperation.
Packing and shipping
FAQ
FAQ
Q: What is your Business Model? Trading company or factory?
A:We are a 25 years factory, all our machinery are manufactured by ourselves, factory direct sales, product quality and after-sales service can be guarantee.
Q: Can I visit your factory?
A: Yes.Many domestic and international customers visit our factory every month. Our company is located in Zhengzhou Henan province,China, you can come here by air or train. The nearest airport is Zhengzhou Xinzheng International Airport, and the Airport Code is CGO. We will pick you up at airport. Welcome to visit our factory.
Q: What is the Quality of your products?
A: KUNTENG Group products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, India, Italy ,Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q: What is the Installation of your products?
A: KUNTENG Group has several experienced technicians with passports ready to go for installation, when installation service is needed, the client should pay for technicians' round way air tickets, food and lodging, most importantly to guarantee the technician's safety.
