Home > Electrical & Electronics > Passive Components > Capacitor > ZT-MD1 Smart Mini Tweezer Bridge Component Tester, SMD ESR Capacitance Resistance Measuring Tool

ZT-MD1 Smart Mini Tweezer Bridge Component Tester, SMD ESR Capacitance Resistance Measuring Tool

ZT-MD1 Smart Mini Tweezer Bridge Component Tester, SMD ESR Capacitance Resistance Measuring Tool thumbnail-3

ZT-MD1 Smart Mini Tweezer Bridge Component Tester, SMD ESR Capacitance Resistance Measuring Tool thumbnail-4

ZT-MD1 Smart Mini Tweezer Bridge Component Tester, SMD ESR Capacitance Resistance Measuring Tool thumbnail-5

ZT-MD1 Smart Mini Tweezer Bridge Component Tester, SMD ESR Capacitance Resistance Measuring Tool photo-1

ZT-MD1 Smart Mini Tweezer Bridge Component Tester, SMD ESR Capacitance Resistance Measuring Tool photo-2

ZT-MD1 Smart Mini Tweezer Bridge Component Tester, SMD ESR Capacitance Resistance Measuring Tool photo-3

ZT-MD1 Smart Mini Tweezer Bridge Component Tester, SMD ESR Capacitance Resistance Measuring Tool photo-4

ZT-MD1 Smart Mini Tweezer Bridge Component Tester, SMD ESR Capacitance Resistance Measuring Tool photo-5

Product Spotlights

The ZT-MD1 Smart Mini Tweezer Tester enables fast, accurate in-circuit testing of SMD components, measuring ESR, capacitance, and resistance without desoldering. Its portable, user-friendly design with auto-ranging and a clear LCD display saves time, improves diagnostic accuracy for PCB repair and quality control, and is a durable tool for electronics professionals.

US$ 21 ≥10 Units

Key Specifications

Get Latest Price

Product Type:

Smart Mini Tweezer Bridge Component Tester

Primary Measurement Functions:

ESR, Capacitance, Resistance

Component Compatibility:

SMD (Surface Mount Device) components

Contact Supplier Request Quote Chat Now

Jinhua Dika Electrical Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Product Type Smart Mini Tweezer Bridge Component Tester

Primary Measurement Functions ESR, Capacitance, Resistance

Component Compatibility SMD (Surface Mount Device) components

Display Type Digital LCD display

Power Source Built-in rechargeable battery

Measurement Range (Capacitance) Wide range, customizable

Measurement Range (Resistance) Wide range, customizable

Tweezer Tip Material Durable alloy steel

Application Fields PCB repair, electronics manufacturing, quality control

As a professional manufacturer in the electronics testing equipment industry, Jinhua Dika Electrical Equipment Co., Ltd. proudly presents the ZT-MD1 Smart Mini Tweezer Bridge Component Tester. Designed for precision and efficiency, this tool is an essential companion for engineers and technicians working with SMD components. It directly addresses the need for quick, accurate, and non-destructive testing of capacitance, ESR (Equivalent Series Resistance), and resistance values on circuit boards, streamlining the debugging and repair process.

The ZT-MD1 stands out with its intuitive tweezer-style design, allowing for direct probing of components without desoldering. Its smart bridge technology ensures reliable measurements, making it a valuable asset for quality control in electronics manufacturing, field service, and R&D laboratories. We combine robust manufacturing capabilities with a commitment to providing practical solutions for the global electronics market.

Key Features and Technical Specifications:

Multi-Function Testing: Simultaneously measures ESR, capacitance, and resistance, providing a comprehensive component health check.

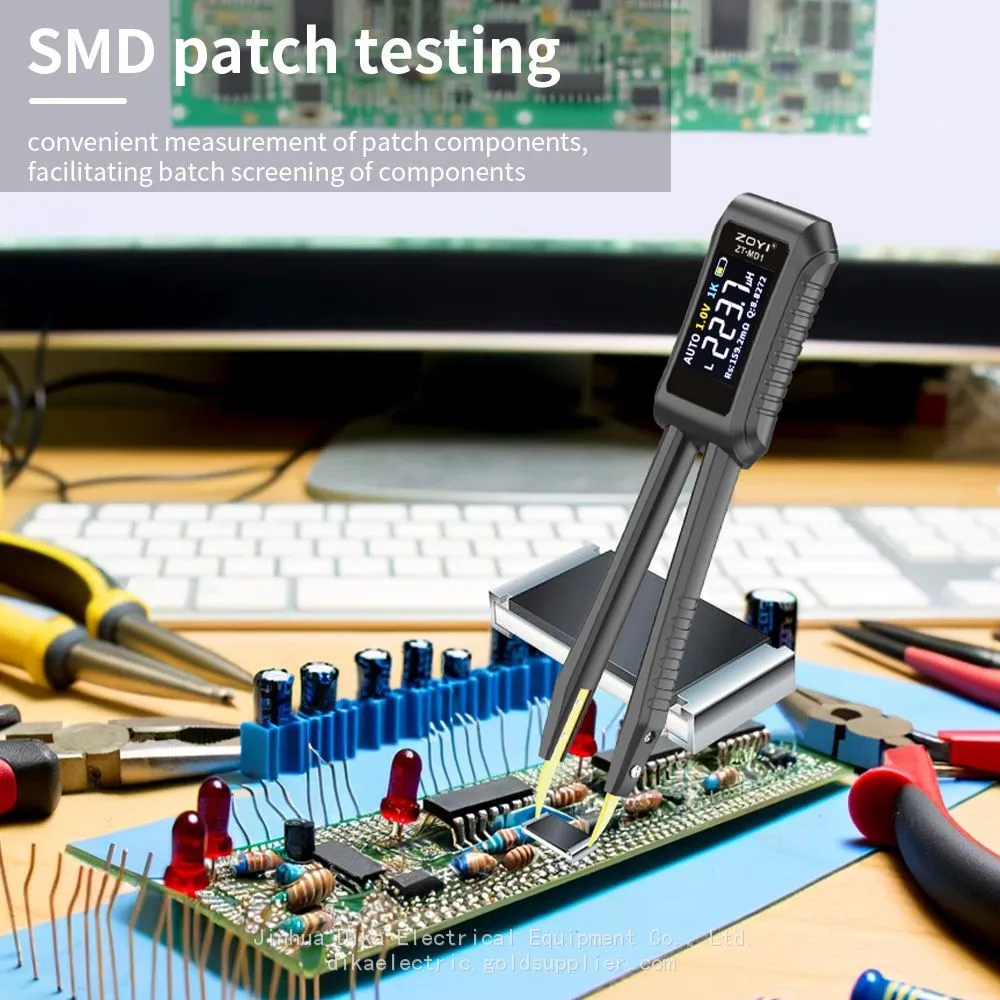

SMD-Specific Design: The fine, insulated tweezer tips are perfectly shaped for gripping tiny SMD components like capacitors, resistors, and inductors on populated PCBs.
High Accuracy & Resolution: Engineered for precise readings, which are crucial for identifying faulty components that may pass simple continuity tests.

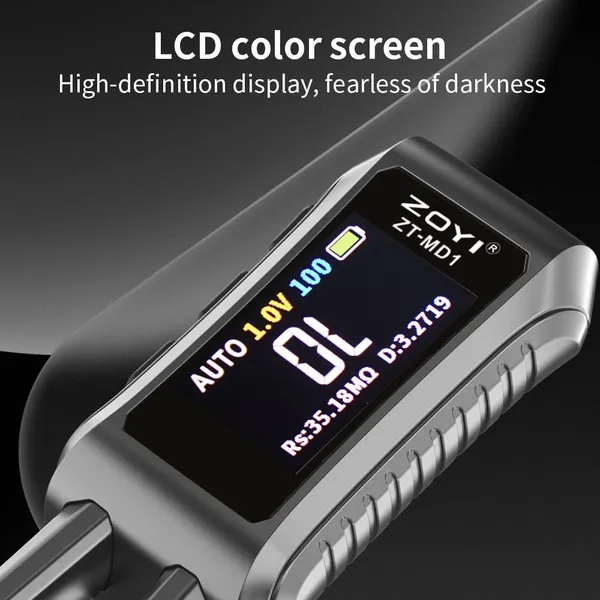

User-Friendly Operation: Features an auto-ranging function and a clear digital LCD display that shows measurement values and units clearly.
Portable and Efficient: Powered by a built-in rechargeable battery, it is completely portable for use anywhere. Its quick measurement cycle speeds up troubleshooting.
Durable Construction: The tweezers are made from durable materials to withstand daily professional use.

Technical Parameters Table:

Parameter	Specification
Primary Measurements	Capacitance, ESR, Resistance
Display	Digital LCD
Power Supply	Built-in Li-ion Battery (USB rechargeable)
Component Type	SMD (Surface Mount Device)
Measurement Range (Capacitance)	Wide range, details available upon request
Measurement Range (Resistance)	Wide range, details available upon request
Tweezer Tip	Insulated, fine-point alloy steel
Typical Applications	PCB Repair, Production Line QC, Laboratory Analysis

Advantages and Customer Benefits:

Saves Time and Cost: Enables in-circuit testing, drastically reducing the time spent on desoldering components for verification. This leads to faster repairs and lower labor costs.
Improves Diagnostic Accuracy: ESR measurement is key to spotting failing capacitors that show normal capacitance. This tool helps prevent recurring failures and misdiagnoses.
Enhances Workflow: Its portable, handheld design allows technicians to move freely around the workshop or field site, improving overall service efficiency.
Easy to Use for All Skill Levels: The auto-ranging and clear display make it suitable for both experienced engineers and trainees, reducing the learning curve for effective PCB diagnostics.
Durable Investment: Built for the rigors of professional environments, it represents a reliable long-term investment for any electronics service business.

Backed by Jinhua Dika's experience as an established manufacturer serving a diverse global market across North America, South America, Europe, Asia, Africa, and Oceania, the ZT-MD1 is produced under stringent quality management protocols. Our company's commitment to operational standards is reflected in our systematic approach to manufacturing. With an annual export value demonstrating our market reach and a dedicated team, we ensure consistent product quality and reliable performance. The ZT-MD1 Smart Mini Tweezer Tester embodies our focus on delivering practical, high-value tools that empower professionals. We invite electronics manufacturers, repair service providers, and educational institutions to experience the efficiency and accuracy this tool brings to their operations. Contact us today to discuss how this tester can integrate into your workflow or to request detailed specifications.

Frequently Asked Questions (FAQ):

Q: Can this tester measure components while they are still soldered on the circuit board?
A: Yes, that is one of its primary advantages. The tweezer design allows for in-circuit testing of SMD components, measuring ESR, capacitance, and resistance without the need for desoldering.
Q: Why is ESR measurement important, and can a standard multimeter do this?
A: ESR (Equivalent Series Resistance) is a critical parameter for capacitors, especially electrolytic types. A high ESR indicates a failing capacitor even if its capacitance value reads normal. Most standard multimeters cannot measure ESR directly, making this specialized tool essential for accurate diagnostics.
Q: What is the typical battery life, and how is it recharged?
A: The device is equipped with a built-in rechargeable lithium-ion battery. It typically offers several hours of continuous use on a full charge. Recharging is convenient via a standard USB cable.
Q: Is the ZT-MD1 suitable for through-hole components?
A: The tool is specifically optimized for Surface Mount Device (SMD) components due to its tweezer tip spacing and design. For reliable measurements on through-hole components, using the component's leads or alternative test probes might be necessary.
Q: How accurate are the measurements, and is calibration required?
A: The tester is designed for high accuracy suitable for field service and production line QC. Specific accuracy figures for each measurement range are available upon request. It is generally pre-calibrated, and user calibration may be an optional feature.
Q: What is the measurement range for capacitance and resistance?
A: The device covers wide ranges for both parameters to accommodate common SMD component values. For the exact minimum and maximum values for capacitance (e.g., from pF to uF) and resistance, please consult the detailed datasheet available from us.
Q: Can it test other components like diodes or transistors?
A: The ZT-MD1 is primarily focused on passive components—capacitors (via ESR and capacitance) and resistors. It does not typically provide dedicated testing modes for semiconductor devices like diodes or transistors.
Q: Do you provide technical support or a warranty for this product?
A: As the manufacturer, we provide product support. Warranty terms and conditions are available upon request and are part of our commitment to customer satisfaction.
