Home > Electrical & Electronics > Passive Components > Capacitor > Infrared Thermometer for HVAC and Electrical Maintenance With Fast Response and Max/Min Hold

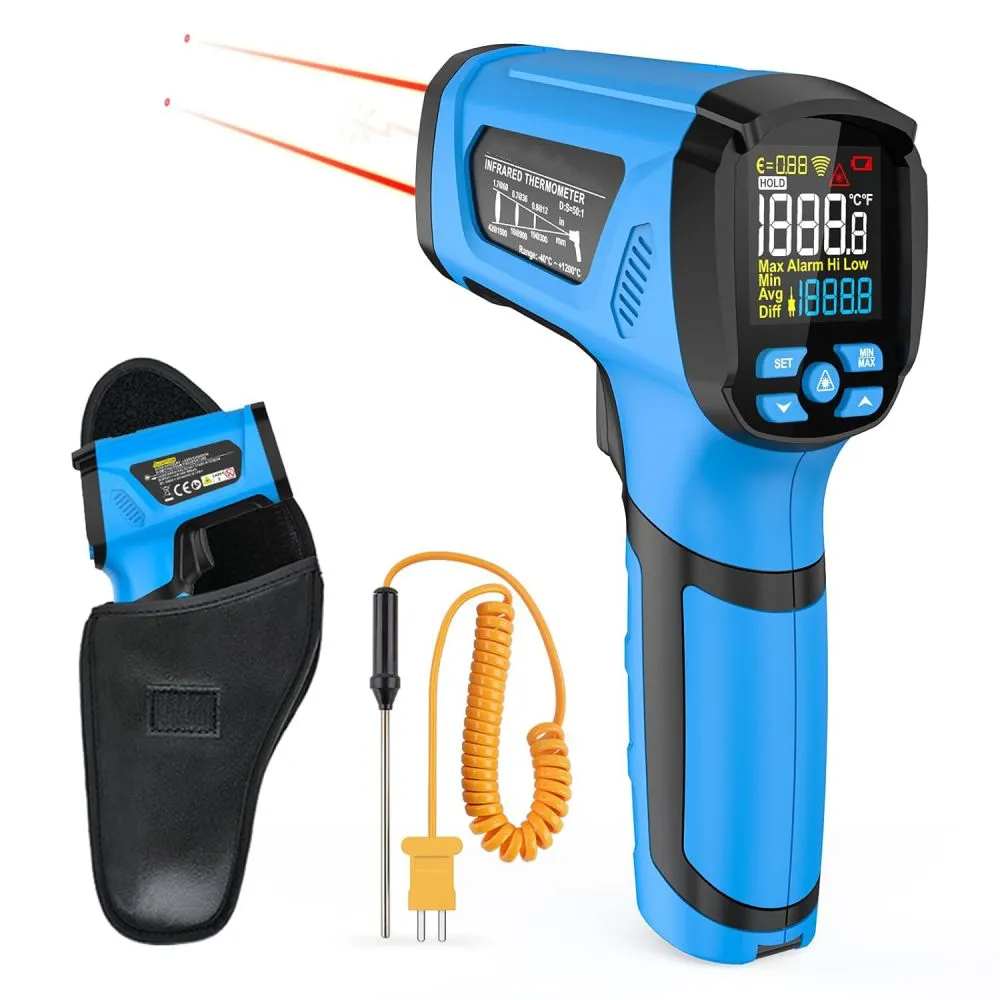

Infrared Thermometer for HVAC and Electrical Maintenance With Fast Response and Max/Min Hold

Infrared Thermometer for HVAC and Electrical Maintenance With Fast Response and Max/Min Hold thumbnail-3

Infrared Thermometer for HVAC and Electrical Maintenance With Fast Response and Max/Min Hold thumbnail-4

Infrared Thermometer for HVAC and Electrical Maintenance With Fast Response and Max/Min Hold thumbnail-5

Infrared Thermometer for HVAC and Electrical Maintenance With Fast Response and Max/Min Hold photo-1

Infrared Thermometer for HVAC and Electrical Maintenance With Fast Response and Max/Min Hold photo-2

Infrared Thermometer for HVAC and Electrical Maintenance With Fast Response and Max/Min Hold photo-3

Infrared Thermometer for HVAC and Electrical Maintenance With Fast Response and Max/Min Hold photo-4

Infrared Thermometer for HVAC and Electrical Maintenance With Fast Response and Max/Min Hold photo-5

Product Spotlights

Professional non-contact infrared thermometer designed for HVAC and electrical maintenance. Features ultra-fast response (<500ms) and intelligent Max/Min/Average/Difference hold functions for efficient troubleshooting. Offers a wide -50°C to 550°C range, a 12:1 distance-to-spot ratio for safe, distant measurement, and adjustable emissivity. Enhances safety, speeds up diagnostics, and provides reliable data for preventive maintenance.

US$ 18 ≥1 Unit

Key Specifications

Get Latest Price

Application:

Other, HVAC

Material:

ABS plastic housing

Measurement Range:

-50°C to 550°C (-58°F to 1022°F)

Contact Supplier Request Quote Chat Now

Jinhua Dika Electrical Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Application Other, HVAC

Material ABS plastic housing

Measurement Range -50°C to 550°C (-58°F to 1022°F)

Emissivity Adjustable, typically 0.95 preset

Response Time Less than 500ms

Distance to Spot Ratio 12:1

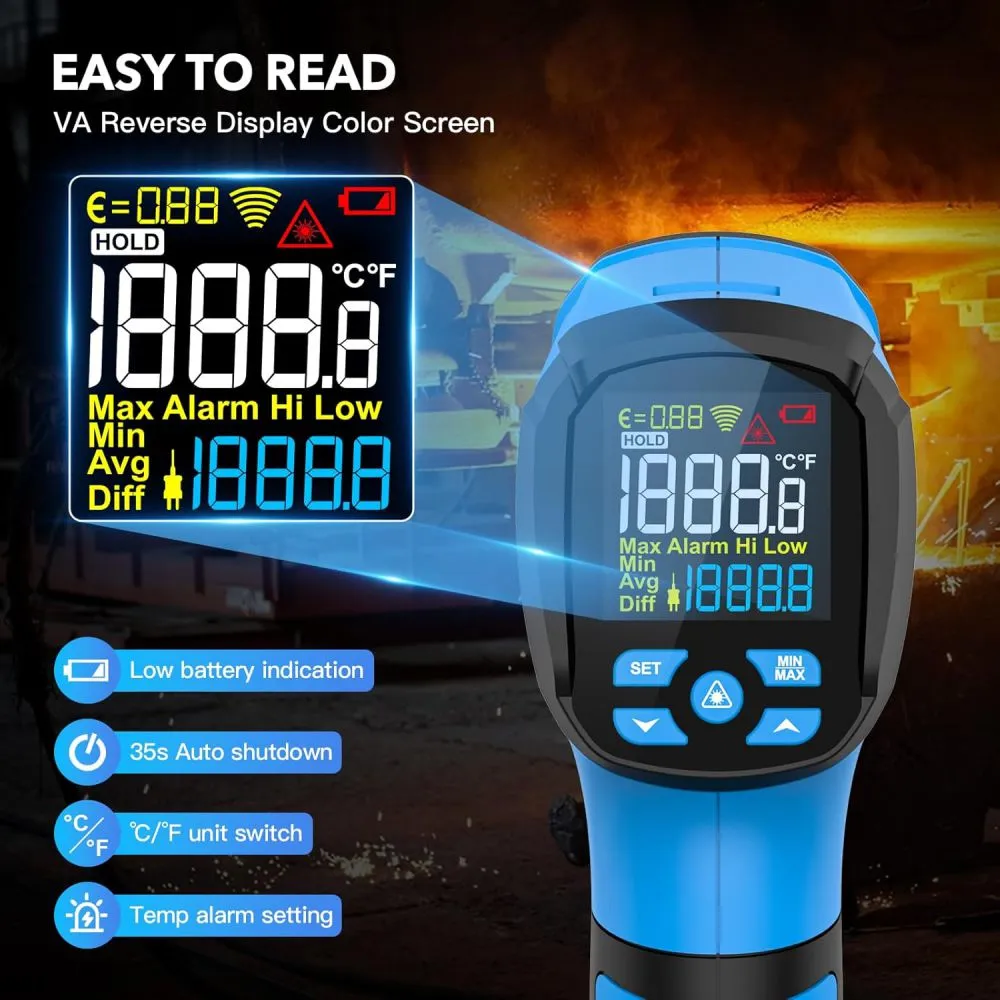

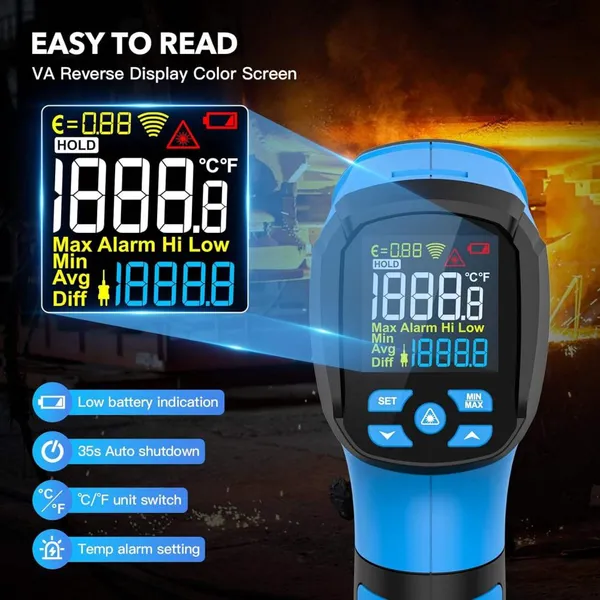

Functions Max/Min/Average/Difference hold, backlit LCD

Power Source 9V battery (included)

As a dedicated manufacturer with over a decade of experience, Jinhua Dika Electrical Equipment Co., Ltd. specializes in providing reliable and efficient diagnostic tools for professionals. Our Infrared Thermometer for HVAC and Electrical Maintenance is engineered to deliver fast, accurate, and non-contact temperature readings, empowering technicians to perform preventive maintenance, troubleshoot issues, and ensure operational safety with confidence.

This professional-grade thermometer is designed to meet the rigorous demands of daily use in various industrial and commercial settings. Its core value lies in combining rapid response with intuitive data capture features like Max/Min Hold, enabling users to quickly identify hotspots, monitor temperature trends, and document readings without missing critical data points.

Key Features & Technical Advantages:

Ultra-Fast Response & High Accuracy: With a response time of less than 500 milliseconds, this tool provides instant temperature feedback. Its high-precision sensor ensures reliable readings, which is crucial for diagnosing overheating components in electrical panels or inefficient HVAC systems.
Intelligent Data Management: The Max/Min/Average/Difference Hold function allows technicians to capture the peak, lowest, average, or differential temperatures during a scanning session. This is invaluable for logging data over time or comparing temperatures across multiple points.
Versatile Measurement Range: Capable of measuring from a frigid -50°C (-58°F) to a scorching 550°C (1022°F), it covers virtually all scenarios encountered in HVAC servicing (like checking refrigerant lines or air ducts) and electrical maintenance (such as identifying overloaded circuits or faulty connections).
Optimized for Professional Use: Featuring a 12:1 Distance to Spot Ratio, users can safely measure small targets from a distance, enhancing safety when assessing live electrical equipment or hard-to-reach HVAC components. The adjustable emissivity (typically preset at 0.95 for most surfaces) ensures accuracy on different materials.
User-Centric Design: The device boasts a clear, backlit LCD display for easy reading in low-light conditions, an ergonomic grip for comfort during extended use, and is powered by a standard 9V battery for convenience.

Technical Specifications Table:

Parameter	Specification
Temperature Range	-50°C to 550°C (-58°F to 1022°F)
Accuracy	±2% of reading or ±2°C (±4°F), whichever is greater
Spectral Response	8 to 14 μm
Response Time	< 500 ms (95% response)
Distance to Spot Ratio (D:S)	12:1
Emissivity	Adjustable, 0.95 preset
Display	LCD with backlight
Laser Pointer	Single-point, Class II laser (for aiming)
Power Supply	9V DC battery (included)
Operating Environment	0°C to 50°C (32°F to 122°F); <80% RH

Benefits for Your Business:

Enhanced Efficiency: Rapid diagnosis reduces equipment downtime, allowing for faster servicing and maintenance cycles.
Improved Safety: Non-contact measurement minimizes the risk of electrical shock or burns when inspecting live circuits or hot surfaces.
Data-Driven Decisions: The hold functions provide concrete data for reporting, client communication, and predictive maintenance planning.
Cost-Effective Tool: A versatile instrument that serves multiple purposes across HVAC, electrical, and general industrial applications, reducing the need for multiple specialized tools.

Trust in a product backed by a manufacturer committed to quality. Jinhua Dika Electrical Equipment operates with a robust ISO 9001 certified quality management system, ensuring consistent product performance and reliability. Our annual export value of US$1 Million - US$1.5 Million and presence in major global markets including North America, Europe, and Southeast Asia testify to the trust professionals worldwide place in our tools. Supported by a team of 11-50 dedicated employees and efficient shipping from ports like Shanghai and Ningbo, we are positioned to be your reliable partner. Choose this infrared thermometer to equip your team with a tool that delivers speed, accuracy, and actionable insights, ultimately protecting your assets and boosting your operational productivity. Contact us today to discuss your requirements or to place an order.

Frequently Asked Questions (FAQ):

Q: What is the main advantage of a non-contact infrared thermometer for HVAC work?
A: It allows for quick, safe temperature checks of air ducts, vents, motors, and electrical components without physical contact, preventing contamination and enabling measurements in hard-to-reach or hazardous areas.
Q: How accurate is this thermometer on reflective surfaces like metal electrical panels?
A: For best accuracy on shiny metals, it is recommended to apply a piece of black electrical tape or use a dull black paint on the target area. The adjustable emissivity feature can also be calibrated for specific materials.
Q: Can I use this to measure the temperature of moving parts, like a fan motor?
A: Yes, the fast response time (under 500ms) is specifically designed to capture temperatures of moving objects or surfaces with fluctuating temperatures effectively.
Q: What does the "12:1 Distance to Spot Ratio" mean?
A: It means that from a distance of 12 feet (or 12 meters), the thermometer measures the average temperature of a 1-foot (or 1-meter) diameter circle. This helps you understand the measurement area size relative to your distance from the target.
Q: How does the Max/Min Hold function benefit electrical maintenance?
A: When scanning a circuit breaker panel, the Max Hold function will capture and lock the highest temperature detected, helping you instantly identify the hottest (and potentially most overloaded) circuit without manually recording multiple points.
Q: Is the laser pointer safe and necessary for aiming?
A: The Class II laser is a low-power aiming aid to help you pinpoint the measurement area. It is eye-safe for accidental brief exposure but should not be stared into directly. It greatly improves targeting accuracy, especially at a distance.
Q: What is the typical battery life, and are batteries included?
A: A standard 9V battery is included. Battery life depends on usage frequency and laser/backlight use, but under typical professional use, it can last for several months. The low battery indicator on the display provides ample warning.
Q: Do you offer custom branding or bulk pricing for corporate clients?
A: Customization options such as company logo printing are available upon request. We also provide competitive pricing for bulk orders. Please contact our sales team for a detailed quotation.
