Home > Electrical & Electronics > Electric Motor > DC Motor > Professional Manufacture 22RP180 6V 12V Micro Planetary Reducer Motor Electric Gear Motor High Torque Speed for Robot

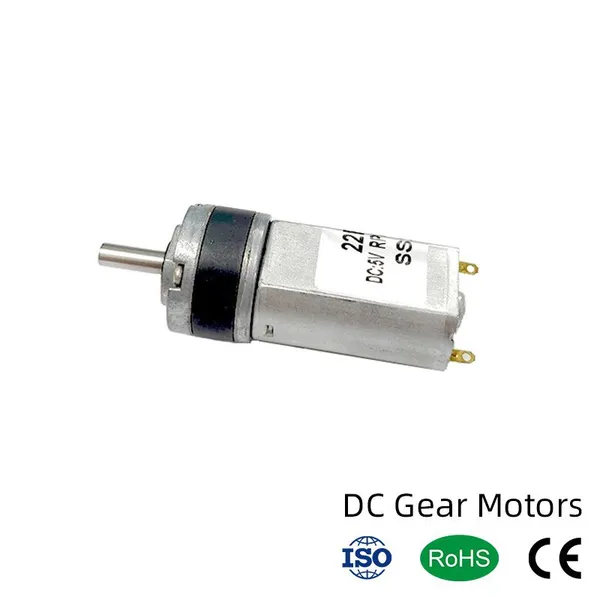

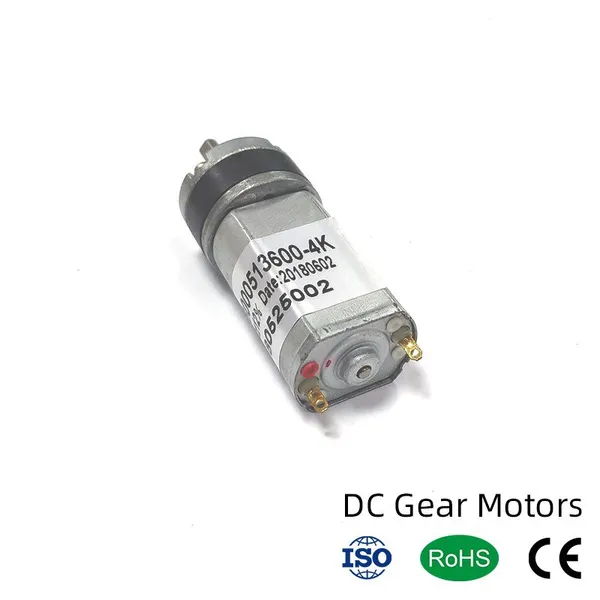

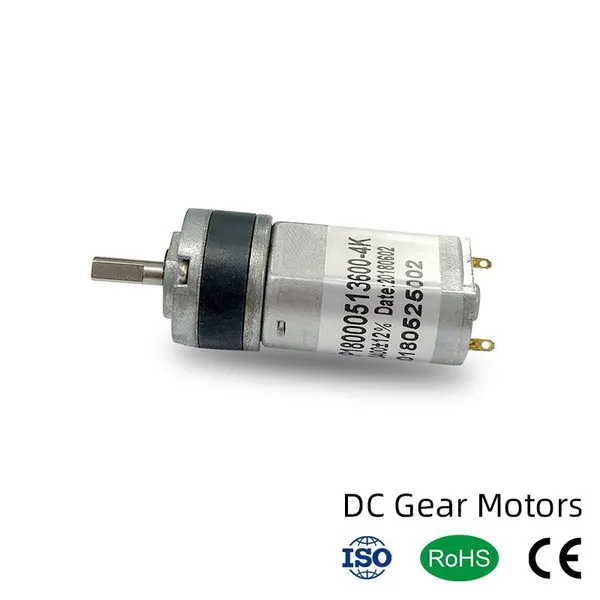

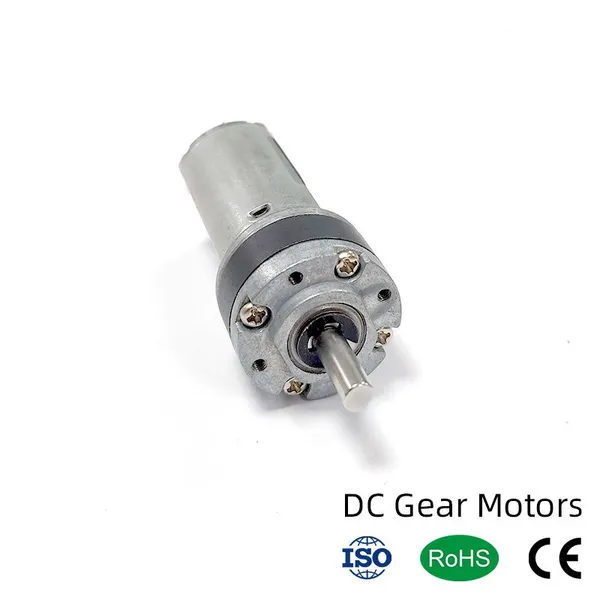

Professional Manufacture 22RP180 6V 12V Micro Planetary Reducer Motor Electric Gear Motor High Torque Speed for Robot
Product Spotlights
Diamater: 20mm
Voltage: 12V~24VDC
Speed: 3RPM~1500RPM
Torque: 0.5kg.cm~50kg.cm
1. CW/CCW
2. Electric Brush/Carbon Brush
3. Planetary Gears
4. Metal Planetary Gearbox
Voltage: 12V~24VDC
Speed: 3RPM~1500RPM
Torque: 0.5kg.cm~50kg.cm
1. CW/CCW
2. Electric Brush/Carbon Brush
3. Planetary Gears
4. Metal Planetary Gearbox
US$ 15
100 - 4999 Pieces
US$ 8.5
≥5000 Pieces
Key Specifications
Get Latest Price
Type:
Other
Certification:
ISO9001
Function:
Control
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen\guangzhou\zhongshan\hongkong
Delivery Detail:
15 days
Related Products
-
22RP250 Dia22mm Small Planetary Gear Motor for Office EquipmentUS$ 15MOQ: 200 Pieces -
16mm 050 Planetary Gear Motors Precision Long Life Medical Equipment Reduction Motor for Health Care InstrumentUS$ 13.88 - 15.5MOQ: 2 Pieces
-
16RP030 16 mm High Efficiency Motor 12v High Torque High Speed 130 Rpm Small Planetary Gearbox MotorUS$ 13.86 - 15.5MOQ: 2 Pieces
-
16mm DC Planetary Gear Motor 16RP1632 6V 12V 24V RS1632 Carbon Brush Micro Motor For Beauty EquipmentUS$ 15.8MOQ: 100 Pieces
-
N20 10~1600rpm DC Spur Gear Motor With 12mm Gearbox for Electronic Locks and Home Applications or Electric ToysUS$ 2.8 - 3MOQ: 1000 Pieces
Type
Other
Certification
ISO9001
Function
Control
Application
Household Appliances, Car, Other, automatic pet feeder, food dispenser, Beauty equipment
Brand
Other
Casing Protection
Protection Type
Structure and Working Principle
Brush
Operating Speed
Other, custom
Transport Package
custom
Specification
DSD-22RP180
Origin
China
Key Features
Model: DSD-22RP180
Diamater: 16mm
Voltage: 12V~24VDC
Speed: 3RPM~1500RPM
Torque: 0.5kg.cm~50kg.cm
CW/CCW
2. Electric Brush/Carbon Brush
3. Planetary Gears
4. Metal Planetary Gearbox
Customization :
Voltage , Current , Speed , Torque , Output Shaft , DC Motor , Gearbox , Ratio , Brush of DC Motor , Wire , Encoder , Gear , Noise Level , Lifetime Cycle
Typical applications :
Automatic quick lock door , binding machine , automatic TV stand , money counter , spotlight ,toilet paper machine, office equipment, household appliances, automatic actuator, smart lock, padlock, power drill, automatic pet feeder, food dispenser
