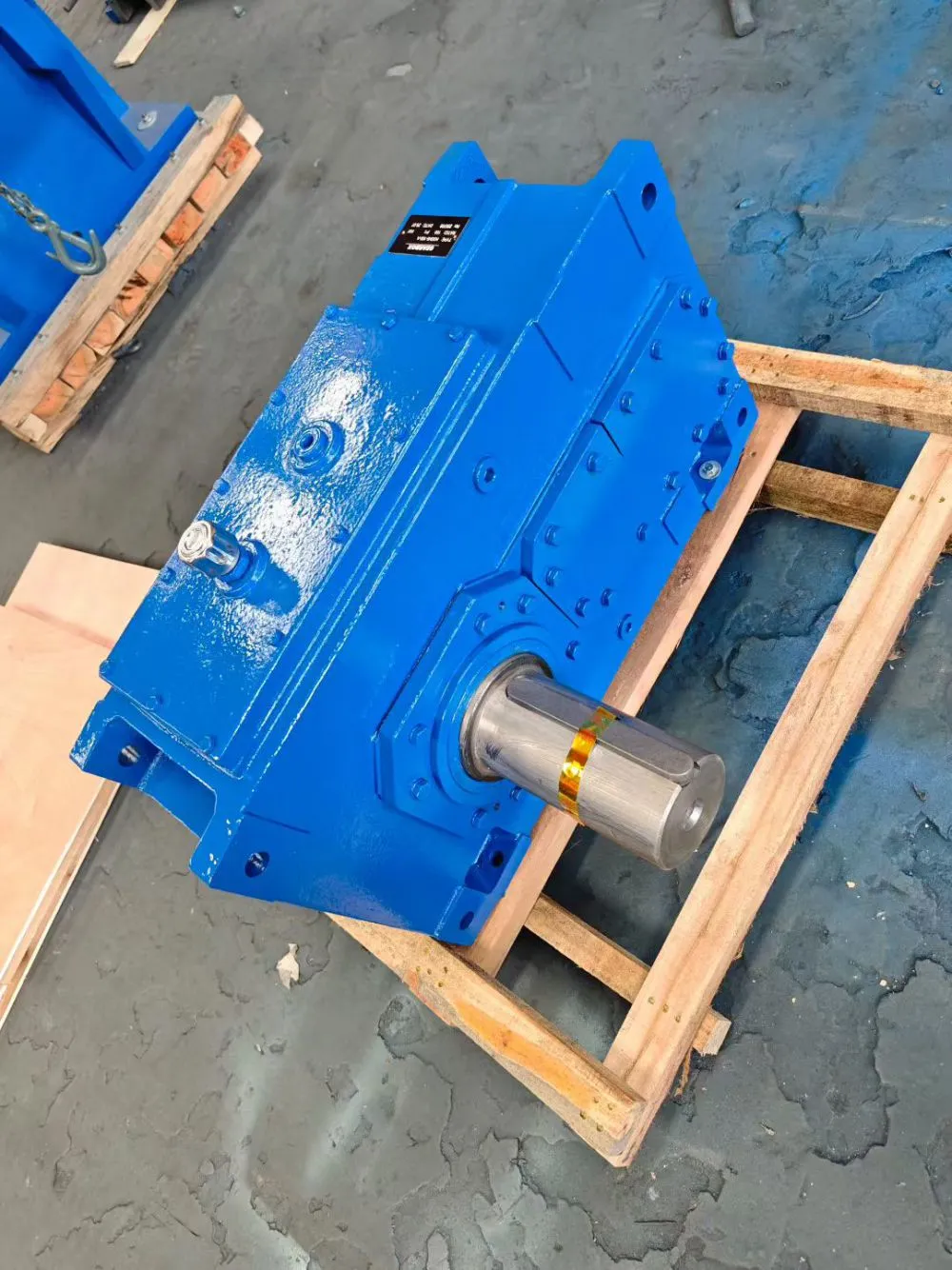

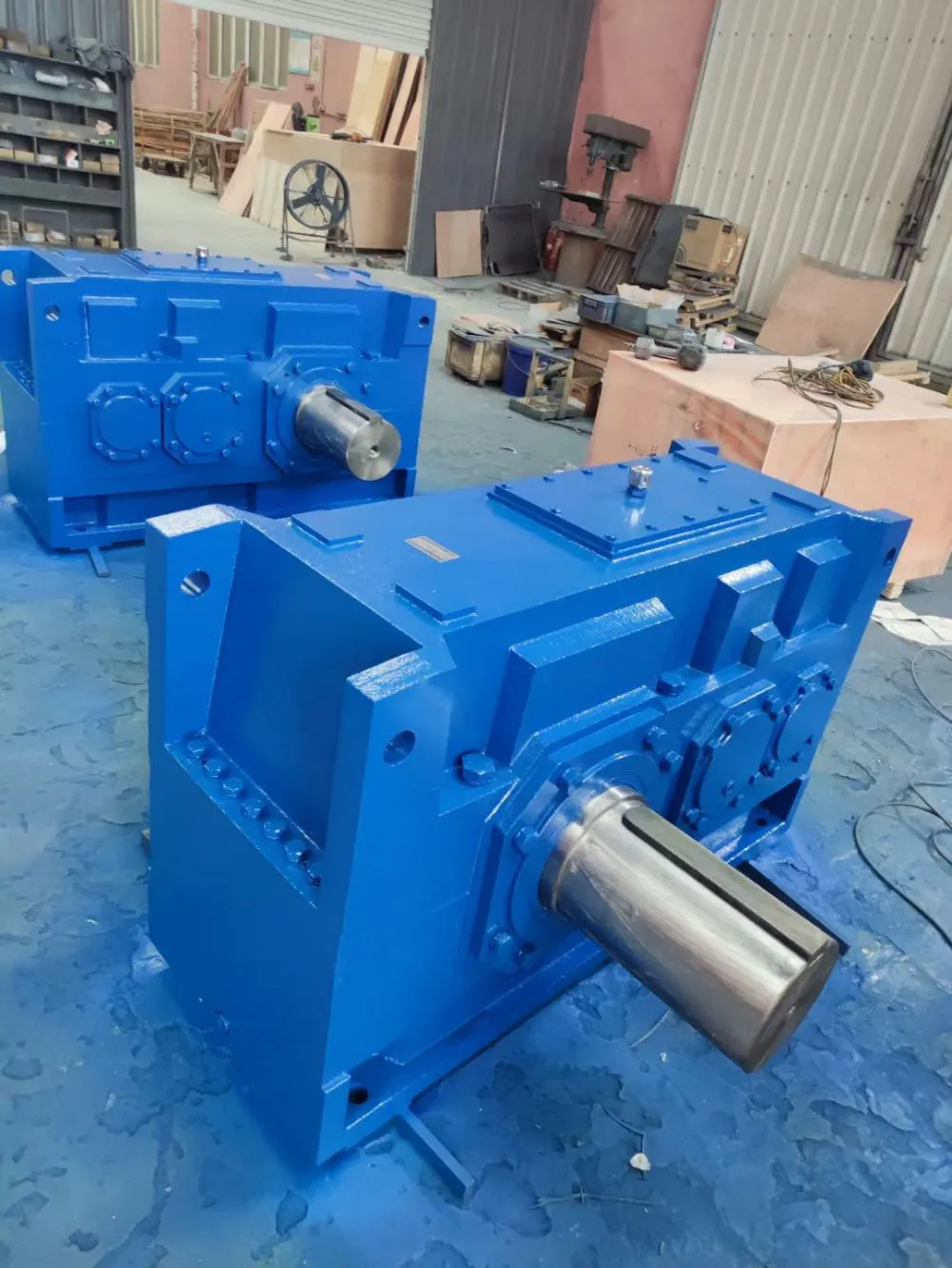

As a dedicated manufacturer of precision power transmission components, Jiangsu Manqi Machinery Co., Ltd. leverages our expertise and modern production facilities to deliver the H2H23 Modular Gear Reducers, engineered specifically for the demanding environments of pharmaceutical mixing applications. Our focus is on providing reliable, hygienic, and efficient drive solutions that meet the stringent requirements of pharmaceutical production, from R&D labs to full-scale manufacturing. We understand that consistent mixing performance is critical for product quality, and our gear reducers are designed to deliver the precise torque and speed control needed for homogenization, dissolution, and suspension processes.
The H2H23 series represents a commitment to modularity and performance. Key features and advantages include:
- Modular Design for Flexibility: The H2H23's modular construction allows for easy adaptation to various mixing setups. Components like input flanges, output shafts, and mounting feet can be configured to suit specific tank geometries and agitator designs, simplifying integration and reducing engineering time for equipment builders.
- Optimized for Hygienic Environments: Designed with cleanability in mind. The housing features smooth, crevice-free surfaces with rounded corners to prevent material accumulation and facilitate washdown procedures common in pharmaceutical facilities. The standard IP65 protection rating guards against ingress of water and dust.
- Precision and Reliability: Utilizing case-hardened alloy steel gears manufactured with advanced grinding technology ensures high gear accuracy, low noise operation, and exceptional durability. This translates to consistent torque transmission, minimal vibration, and a long service life, even under continuous duty cycles.
- Robust Construction: The high-grade cast iron housing provides excellent rigidity and vibration damping, protecting internal components and ensuring stable alignment of the output shaft connected to the mixer impeller.
- Efficient Power Transmission: The helical-bevel gear design offers high efficiency, reducing energy consumption over the lifetime of the equipment. This is a significant consideration for cost-conscious operations.
Below is a summary of key technical specifications for the H2H23 series:
| Parameter | Specification / Range |
| Nominal Output Torque Range | Up to 18,000 Nm |
| Reduction Ratio Range | Available from approximately 5:1 to 100:1 |
| Input Power Range | Suitable for motors from 0.12 kW to 132 kW |
| Input Speed | Standard for 4-pole motors (approx. 1500 rpm) |
| Output Shaft | Solid shaft, keyed connection (splined optional) |
| Mounting Positions | Multiple positions available (M1...M6) |
| Lubrication Oil | Synthetic industrial gear oil (specific grade recommended) |
| Service Factor | Designed for typical mixer service factors (e.g., 1.5+); consult for specific application |
The benefits for our clients in the pharmaceutical sector are clear. By choosing the H2H23, you gain a drive solution that enhances process reliability, reduces maintenance downtime due to its robust design, and supports compliance with good manufacturing practices through its hygienic design features. The modularity also offers future-proofing, allowing for potential process changes without requiring a complete drive replacement.
Operating from our 10,000-30,000 square meter facility in Suzhou since 2017, Jiangsu Manqi Machinery has built a reputation for quality and responsiveness, serving markets globally including Eastern Europe, Southeast Asia, and Africa. Our team of 11-50 skilled professionals is committed to supporting your projects from selection through to after-sales service. We ship efficiently via the Port of Shanghai, ensuring timely delivery. For your critical pharmaceutical mixing applications, partner with a manufacturer focused on precision and reliability. Contact us today to discuss your specific requirements, request detailed CAD drawings, or obtain a competitive quotation for the H2H23 Modular Gear Reducer.
Frequently Asked Questions (FAQ)
Q1: Is the H2H23 gear reducer suitable for aseptic or cleanroom applications?
A1: The standard H2H23 is designed for hygienic pharmaceutical production with IP65 protection and cleanable surfaces. For applications requiring specific cleanroom classifications or sterile environments, special surface finishes (e.g., electropolishing) and sealing options can be discussed and provided upon request.
Q2: Can you provide gear reducers with stainless steel housings?
A2: The standard housing material is high-grade cast iron, which offers excellent strength and corrosion resistance for most applications. Stainless steel housings or coatings are available as a customization option to meet specific sanitary or corrosive environment requirements.
Q3: How do I select the correct size and ratio for my mixer?
A3: Selection requires knowing your agitator's required output speed, torque demand, motor power, and service conditions. We provide technical support and selection guides. Please share your application details (vessel size, fluid viscosity, impeller type, duty cycle) for our engineering team to recommend the optimal model.
Q4: What is the lead time for a standard H2H23 unit?
A4: Lead times vary based on model specification and order quantity. For common configurations, we typically maintain stock or can offer production lead times communicated upon inquiry. We strive for efficient turnaround from our manufacturing base.
Q5: Are spare parts readily available?
A5: Yes. As the manufacturer, we maintain an inventory of critical spare parts such as seals, bearings, and gaskets. For long-term support, technical drawings and part lists are provided to facilitate maintenance planning.
Q6: Does the reducer come with a motor, or is it supplied separately?
A6: The H2H23 is typically supplied as a gear reducer unit with a standard IEC input flange (C-face) ready for coupling to a standard motor. We can source and supply a complete motor-reducer package if required, ensuring compatibility and single-source responsibility.
Q7: What maintenance does the gear reducer require?
A7: Primary maintenance involves periodic checking of the oil level and condition, and eventual oil change per recommended intervals (typically several thousand operating hours). The unit is designed for reliability with long oil life. Detailed maintenance instructions are included with each unit.
Q8: Can you provide custom shaft dimensions or mounting interfaces?
A8: Absolutely. While we offer standard configurations, modifications to output shaft dimensions (length, diameter, keyway) or special mounting flanges are part of our custom engineering services to ensure a perfect fit for your equipment.
