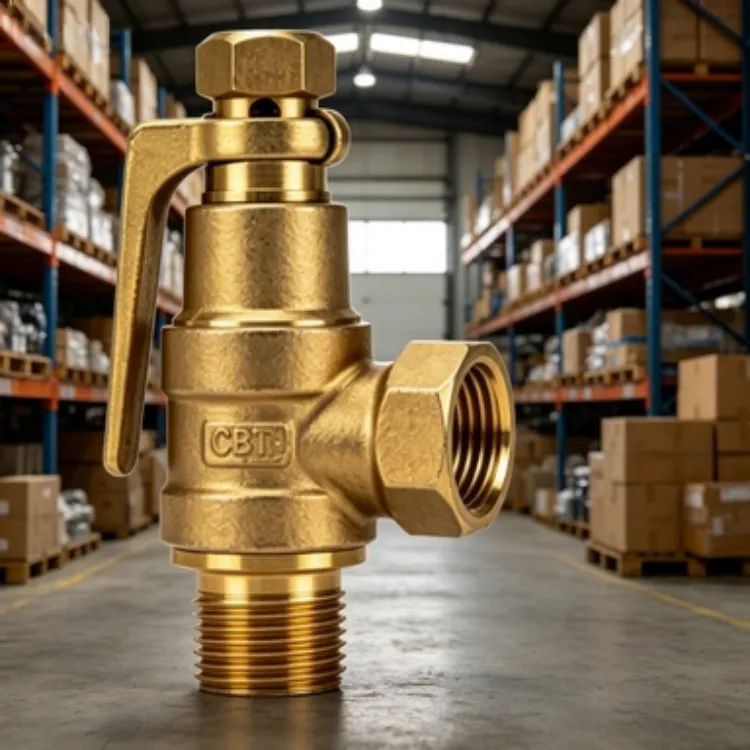

As a professional manufacturer with ISO9001 certification, Shanghai Zhibang Valve Manufacture Co., Ltd. specializes in providing reliable and high-performance industrial valves for global markets. Our Marine External Thread Bronze Right-Angle Steam Safety Valve CBT3192 is engineered to deliver exceptional protection for steam systems onboard vessels and in marine applications. With a set pressure of 150 PSI, this valve is a critical safety component designed to prevent overpressure scenarios, ensuring the safe and efficient operation of your equipment.
This valve combines robust construction with precise engineering to meet the demanding conditions of marine environments. We understand that safety and reliability are non-negotiable in your operations, which is why our CBT3192 valve is built to perform consistently under pressure. Backed by our experience since 2016 and an annual export value reflecting our global reach, we offer a product you can trust for your critical steam applications.
Detailed Product Features & Technical Specifications
The CBT3192 is designed with specific features that cater to the needs of marine steam systems:
- Durable Bronze Construction: The valve body and major components are crafted from high-quality bronze (C83600 or equivalent), offering excellent corrosion resistance against steam and seawater exposure, which is vital for marine longevity.
- Right-Angle (Angle Pattern) Design: This compact design allows for installation in tight spaces where piping layout requires a 90-degree discharge, making it ideal for complex marine engine room configurations.
- External Thread (NPT) Connections: Provides a secure and leak-resistant joint, facilitating straightforward installation and maintenance in threaded piping systems commonly used in marine applications.
- Precise 150 PSI Set Pressure: The valve is calibrated to open reliably at 150 pounds per square inch, providing a predetermined pressure relief point to protect boilers, heat exchangers, and other pressurized vessels.
- Blowdown Adjustment: Typically features an adjustable ring to control the blowdown (the difference between set pressure and reseating pressure), allowing for fine-tuning to match specific system requirements.
- Marine-Grade Sealing: Utilizes resilient seals and discs suitable for saturated steam service, ensuring a tight seal when closed and smooth operation during discharge.
Technical Parameters Table:
| Parameter | Specification / Value |
| Model | CBT3192 |
| Primary Material | Bronze |
| Connection Type | External Thread (NPT) |
| Body Pattern | Right Angle (Angle Pattern) |
| Set Pressure | 150 PSI |
| Applicable Medium | Steam |
| Temperature Rating | Suitable for standard steam service |
| Blowdown Adjustment | Typically Available |
| Common Standards | ASME/ANSI, relevant marine standards |
Advantages & Customer Benefits:
- Enhanced System Safety: Acts as a fail-safe device, automatically releasing excess pressure to prevent catastrophic equipment failure and ensure personnel safety onboard.
- Marine Environment Suitability: The bronze construction offers superior resistance to corrosion from both steam and salty marine atmospheres, extending service life and reducing maintenance frequency.
- Space-Efficient Installation: The right-angle design is optimal for marine engine rooms where space is at a premium, allowing for efficient piping layouts without compromising safety.
- Reliable Performance: Precision machining and calibration ensure the valve opens at the exact set pressure and reseats properly, providing dependable overpressure protection cycle after cycle.
- Global Compliance: Manufactured with attention to international standards like ASME/ANSI, facilitating its acceptance in various global markets including North America, Europe, and Southeast Asia.
- Ease of Maintenance: The design often allows for in-line maintenance and testing with a manual lever, enabling routine checks without removing the valve from the system.
Trust & Quality Assurance
Choosing Shanghai Zhibang means partnering with a certified and experienced manufacturer. Our ISO9001 certification underpins a rigorous quality management system for every valve we produce, including the CBT3192. Since our establishment in 2016, we have built a strong reputation, with our products successfully exported to a wide range of markets across North America, South America, Europe, Asia, Africa, and Oceania, handling an annual export value of US$1-1.5 Million. This global footprint is a testament to the reliability and performance our customers have come to expect. We ship efficiently from major ports like Shanghai, Guangzhou, Hong Kong, and Beijing, ensuring timely delivery to your project site. When you select our Marine Bronze Safety Valve, you are not just buying a component; you are investing in a safety solution backed by professional manufacturing expertise and a commitment to quality that protects your assets and operations.
Frequently Asked Questions (FAQ)
Q1: Is this valve suitable for use with other media besides steam?
A: The CBT3192 is specifically designed and calibrated for saturated steam service. While bronze offers good chemical resistance, using it with other media (like air, water, or oil) may require verification of material compatibility and could affect the set pressure calibration. It is recommended to consult with our engineers for applications involving non-steam media.
Q2: What is the thread size and standard for the external connections?
A: This valve typically features NPT (National Pipe Taper) threads. The specific size (e.g., 1/2", 3/4", 1") is a key specification that should be confirmed based on your piping requirements. Please provide your connection size when inquiring.
Q3: Can the set pressure be adjusted in the field, or is it factory-set?
A: Safety valves like the CBT3192 are generally factory-set and sealed at the specified pressure (150 PSI in this case) to ensure accuracy and compliance. Field adjustment is not recommended as it requires special equipment and can void certifications. We offer valves set to various pressures upon request.
Q4: How does the right-angle design benefit a marine installation compared to a straight-through design?
A: The right-angle (angle pattern) design allows the outlet to be oriented 90 degrees from the inlet. This is highly advantageous in cramped marine engine rooms, as it enables the discharge pipe to be routed vertically or horizontally away from the valve body, saving space and simplifying complex piping arrangements where a straight-line discharge is impractical.
Q5: What maintenance is required for this valve?
A: Regular maintenance is crucial. It typically involves periodic manual lifting via the test lever to ensure free movement, checking for external corrosion or leaks, and verifying that the discharge path is unobstructed. Internal inspection and reseating should be performed by qualified personnel at intervals recommended by the system manufacturer or regulatory bodies.
Q6: Does the valve come with any certifications or test reports?
A: Our manufacturing process is ISO9001 certified, ensuring consistent quality control. While the valve is produced to meet common standards like ASME/ANSI, specific certification documents (e.g., material test reports, set pressure test certificates) can be provided as an optional service. Please specify your requirements during the order process.
Q7: What is the typical lead time for this product?
A: Lead time depends on order quantity and current stock levels. For standard configurations, we often have ready inventory or short production cycles. We provide accurate lead time estimates with every quotation to help you plan your project schedule effectively.
Q8: Can you provide valves with different set pressures or connection sizes?
A: Absolutely. As a manufacturer, we offer customization options. We can produce similar bronze right-angle safety valves with various set pressures (other than 150 PSI) and different thread sizes (NPT or BSP) to match your specific system design. Contact us with your detailed specifications for a tailored solution.
