As a dedicated manufacturer with ISO9001 certified quality management, Jinhua Dika Electrical Equipment Co., Ltd. is proud to introduce the SK-C120 Laser Distance Meter. Engineered specifically for the demands of electrical installation and cable work, this tool is designed to replace cumbersome tape measures, delivering unparalleled speed, accuracy, and efficiency on the job site. We understand that precise measurements are the foundation of any successful electrical project, and the SK-C120 is built to be your reliable partner in achieving that precision, saving you valuable time and reducing material waste.
The SK-C120 is more than just a measuring device; it's a comprehensive solution for professionals. Its core function of measuring distances up to 120 meters with an accuracy of ±1.5 mm ensures that cable runs, conduit lengths, and room dimensions are captured correctly the first time. Beyond simple length, its built-in calculation functions are invaluable for planning and material estimation.
- Multi-Functional Calculations: Instantly calculate area and volume for room assessments, and use the built-in Pythagoras (indirect measuring) functions to measure heights or lengths where a direct line of sight is obstructed.
- Robust and User-Friendly Design: Housed in durable ABS plastic with an IP54 rating, the SK-C120 is resistant to dust and water splashes, making it suitable for various site conditions. The large, backlit LCD screen ensures clear visibility even in low-light environments.
- Enhanced Productivity: By eliminating the need for a second person to hold a tape measure and reducing manual calculation errors, this laser meter significantly speeds up the surveying and planning phase of any electrical installation.
Here are some key technical specifications presented for clarity:
| Parameter | Specification |
|---|---|
| Model | SK-C120 |
| Measuring Range | 0.05 m to 120 m |
| Typical Accuracy | ±1.5 mm |
| Laser Type & Class | 635 nm, Class II |
| Measurement Units | m / in / ft / ft+in |
| Functions | Length, Area, Volume, Pythagoras (2-point & 3-point) |
| Data Memory | Last 20 measurements |
| Power Supply | 2 x 1.5V AAA batteries |
| Operating Temperature | 0°C to 40°C |
| Dimensions (LxWxH) | Approx. 118 x 57 x 33 mm |
The primary advantage of the SK-C120 lies in its application-specific design. For electricians and cable installers, accurately estimating the required length of wiring, conduit, or trunking is critical to avoid costly shortages or excess. This tool provides that accuracy instantly. Furthermore, its durability means it can withstand the rigors of a tool bag or job site. The ease of use minimizes training time, allowing any team member to become proficient quickly. Ultimately, investing in the SK-C120 translates to reduced project timelines, lower labor costs, and minimized material procurement errors, delivering a clear return on investment.
Backed by our company's commitment to quality evidenced by our ISO9001 certification and supported by an annual export value reflecting trusted global partnerships across North America, Europe, Asia, and beyond, you can be confident in the reliability of the SK-C120. Our products are shipped from major ports like Shanghai and Ningbo, ensuring efficient logistics. We invite you to experience the difference that professional-grade measurement tools can make. Contact Jinhua Dika today to inquire about the SK-C120 Laser Distance Meter and discover how it can streamline your electrical installation and cable measurement processes.
Frequently Asked Questions (FAQ)
Q1: How does the SK-C120 help in measuring cable lengths around corners?
A1: The SK-C120 features Pythagoras functions (2-point and 3-point). You can take indirect measurements by pointing the laser at two or three reference points (e.g., the bottom and top of a wall), and the device will calculate the straight-line distance, perfect for measuring cable runs that go over obstacles or into corners.
Q2: Is the laser safe to use?
A2: Yes. The SK-C120 uses a Class II laser, which is considered eye-safe for accidental brief exposure. However, as with all laser products, you should avoid pointing it directly at anyone's eyes.
Q3: What is the actual battery life?
A3: Under typical use (approximately 5000 measurements), the two AAA batteries can last for a considerable period. The auto-power-off function also helps conserve battery life when the device is not in active use.
Q4: Can it measure in different units?
A4: Absolutely. The unit can be easily switched between meters (m), inches (in), feet (ft), and a feet+inches combination (ft+in) to suit your regional preference or project requirements.
Q5: How durable is it for construction site use?
A5: The meter is housed in a robust ABS plastic casing and has an IP54 protection rating. This means it is protected against dust ingress and water splashes from any direction, making it suitable for most indoor and sheltered outdoor site conditions.
Q6: Does it come with a warranty?
A6: Standard warranty terms apply. For specific warranty duration and coverage details, please contact us directly at the time of inquiry or order.
Q7: Can it store measurements?

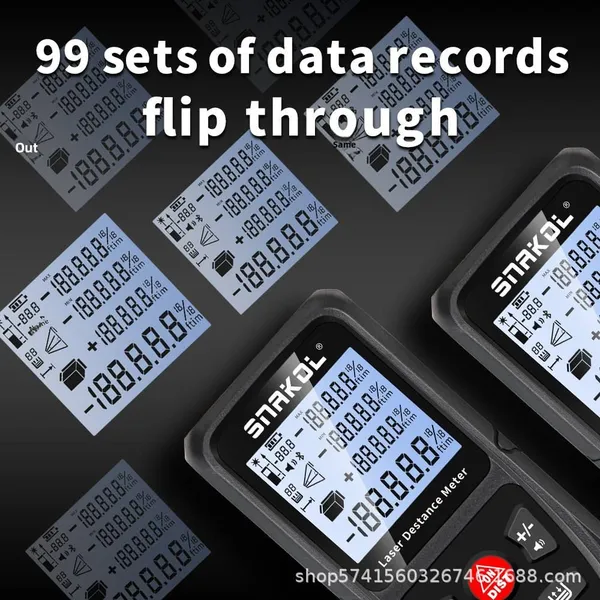

A7: Yes, the device has a memory function that stores the last 20 measurements. This allows you to review previous data without having to manually write down each reading immediately.
Q8: What accessories are included?
A8: The standard package typically includes the SK-C120 laser distance meter, a wrist strap, a user manual, and a carrying pouch. Battery inclusion may vary; please confirm with your order. Additional accessories like a target plate may be available upon request.
