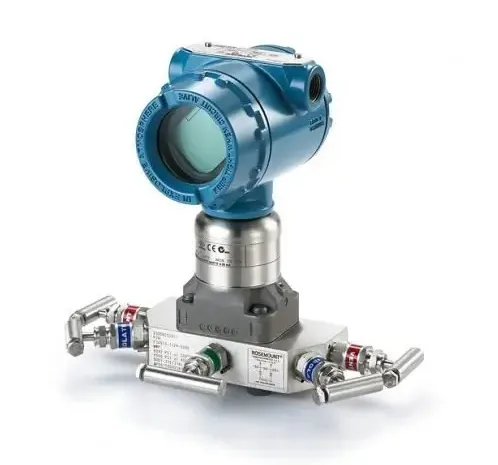

As a trusted supplier of high-performance industrial instrumentation, Rossonix Co., Limited proudly offers the Rosemount 3051S Pressure Transmitters. Since our establishment in 2011, we have built a reputation for delivering reliable process control solutions to a global clientele across North America, Europe, Asia, and beyond. The 3051S series represents the pinnacle of pressure measurement technology, designed to provide exceptional accuracy, stability, and durability in the most demanding industrial environments. This transmitter is engineered to deliver precise data for critical decisions in process optimization, safety, and efficiency.
The core value of the Rosemount 3051S lies in its robust design and advanced sensor technology. It translates pressure into a reliable, standardized signal, enabling seamless integration with modern control systems. For plant managers and engineers, this means reduced downtime, lower maintenance costs, and enhanced process visibility.
Key Features and Technical Specifications:
Advanced Sensor Performance: Utilizing a single, isolated capacitive sensor, the 3051S offers superior accuracy and long-term stability, minimizing drift over time.
Exceptional Environmental Resilience: Built to withstand extreme conditions, including wide temperature fluctuations, high vibration, and corrosive media.
Flexible Configuration and Communication: Supports industry-standard protocols like HART for easy calibration, diagnostics, and integration with existing control networks. Foundation Fieldbus and Profibus options are available for fully digital systems.
User-Friendly Diagnostics: Embedded diagnostics provide early warnings for potential issues, supporting predictive maintenance strategies.
Global Safety and Process Standards: Designed to meet rigorous international requirements for use in hazardous areas and critical processes.
The following table outlines some of the primary technical parameters for the standard 3051S model:
| Parameter | Specification |
| Reference Accuracy | ±0.075% of span |
| Long-Term Stability | ±0.1% of URL per year |
| Pressure Range (URL) | From 5 inH2O up to 20,000 psi (customizable) |
| Output Signal | 4-20 mA DC, HART 7 |
| Process Connection | 1/2-14 NPT female, other options available |
| Wetted Parts Material | 316L Stainless Steel, Hastelloy C, optional |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Power Supply | 10.5 to 45 V DC (loop powered) |
Benefits for Your Operation:
Enhanced Process Control: High accuracy ensures tighter control loops, improving product quality and yield.
Reduced Operational Costs: Low maintenance requirements and high reliability decrease spare part inventory and labor costs.
Improved Safety: Robust construction and reliable performance contribute to safer plant operations.
Seamless System Integration: Standard communication protocols allow for easy integration into DCS, PLC, or SCADA systems without costly adapters.
Scalability and Support: A wide range of models and configurations means you can find the exact transmitter for your specific pressure, fluid, and mounting needs.
Rossonix operates under an ISO9001-certified quality management system, ensuring that every Rosemount 3051S transmitter we supply meets stringent quality standards. With over a decade of experience and an annual export value reaching up to US$10 million, we have the logistical expertise and partner network to deliver these critical instruments efficiently from major ports like Shenzhen, Hong Kong, and Europe to your location worldwide. Our presence in key markets, including extensive coverage across Europe, Asia, and the Americas, means we understand local requirements and can provide tailored support. Choosing the Rosemount 3051S through Rossonix is not just a purchase; it's an investment in process integrity, supported by a reliable global supplier committed to your success.
Frequently Asked Questions (FAQ):
What is the main difference between the 3051S and other pressure transmitter models?
The 3051S series is distinguished by its high-performance capacitive sensor, which provides exceptional accuracy and stability, especially in applications requiring reliable long-term measurement with minimal drift.Can this transmitter be used with aggressive or corrosive process media?
Yes. The standard wetted parts are 316L stainless steel, which offers good corrosion resistance. For highly corrosive applications, options like Hastelloy C are available upon request.Is the Rosemount 3051S suitable for use in safety-critical systems?
Absolutely. It is designed and manufactured to meet rigorous international standards for instrumentation used in safety instrumented systems (SIS) and processes requiring high reliability.How do I communicate with or configure the transmitter on-site?
The transmitter supports the HART protocol. You can use a HART communicator or compatible control system software to read diagnostics, configure parameters, and perform calibrations remotely.What mounting options are available?
It can be directly mounted to the process connection or remotely mounted using a manifold for applications where the transmitter needs to be isolated or located away from the process point.What is the typical delivery time for this product?
Delivery times vary based on configuration and destination. As an established trader with efficient supply chains, Rossonix typically offers competitive lead times. Specific timelines can be provided upon request.Does Rossonix provide technical support or calibration services?
Yes. We offer pre-sales technical consultation to help select the correct model and configuration. Post-sales support, including documentation and guidance, is also provided.Are custom pressure ranges or special certifications available?
Yes. The 3051S platform is highly customizable. Specific pressure ranges, special materials, or additional certifications required for your project can be discussed and arranged.
