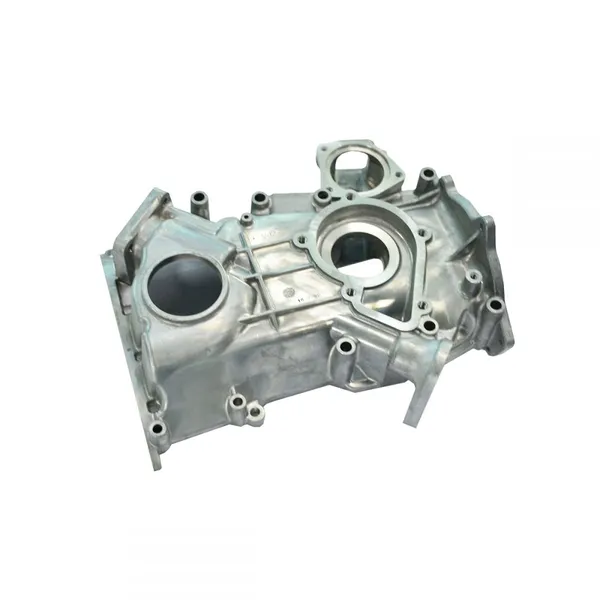

High – Quality Aluminium Casting
Our aluminium casting stands out in the market due to its superior manufacturing process and choice of materials. Gravity die casting is the method we employ to create these reliable components.
Gravity Die Casting Process
Gravity die casting is a precise and efficient process. Molten aluminium is poured into a pre – heated die under the force of gravity. This method allows for better control over the filling of the die, resulting in castings with fewer defects. It is suitable for producing a variety of parts, from small intricate components to larger, more complex pieces.
A356 Aluminium Alloy with T6 Heat Treatment
A356 Aluminium Alloy
A356 is a widely used aluminium alloy known for its excellent casting properties. It has good fluidity, which enables it to fill the die cavity completely, ensuring detailed and accurate castings. The alloy also has high corrosion resistance, making it suitable for various environments.
T6 Heat Treatment
The T6 heat treatment further enhances the mechanical properties of A356. This process involves solution heat treatment followed by rapid quenching and artificial aging. The result is an aluminium casting with increased strength, hardness, and improved fatigue resistance. Components made from A356 with T6 heat treatment can withstand higher loads and stresses, making them ideal for applications such as automotive and aerospace parts. In conclusion, our aluminium casting, crafted through gravity die casting and using A356 with T6 heat treatment, offers a high – quality solution for multiple industries.
| Manufacturing Method | Die Casting Services |
| Material Standard | GB, ANSI, BS, DIN, JIS, ASTM, ASME, AISI, etc Aluminum alloy: ISO3522-84, ASTMB85-96, JISH5302:2000, EN1706:1998 Aluminum alloy: ADC12, ADC10, A360, A380, A356, 6061, 6063， AlSi9Cu 2.Magnesium alloy: ISO/DIS16220-1999, ASTMB93/B93M-98, EN1754-1997 Magnesium alloy: AZ91D, AM60B, 3.Zinc alloy: ISO301-1981,ASTMB327-98, JISH2021:1999, EN12844:1998 Zinc alloy: ZA3#,ZA5#,ZA8# |
| Weight Range | 3g – 20 kgs |
| Dimension Range | Mini 80 X 80 mm, Max 800 X 800 mm |
| Tolerance | ±0.02mm |
| Design Software | UG, Pro-E, Inventor |
| Dwg Format | STP, STEP, IGS,STP,X_T ,DXF,DWG , Pro/E, PDF, SLDPRT |
| Mould Manufacturing | Yes |
| Casting Stimulation | Yes |
| Quality Control | RT,UT,MT,PT,CMM,SCAN,Chemical and Mechanical Property Testing,Spectrometer,etc |
| Ultimate machining tolerance | 0.005mm |
| Logo/ID | Silk-screening, Laser Marking, Engrave,Painting |
| Finish Roughness | Ra0.8-Ra1.6 according to customer requirement |
| Heat Treatment | Normalization , Annealing, Quenching and Tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching,etc |
| Surface Treatment | Shot/sand blast, Polishing, Surface Passivation, Painting , Anodizing,Powder coating, ED- Coating, Chrome Plating, zinc-plate, Dacromat coating, Finish Painting,hot-dip galvanizing, etc |
