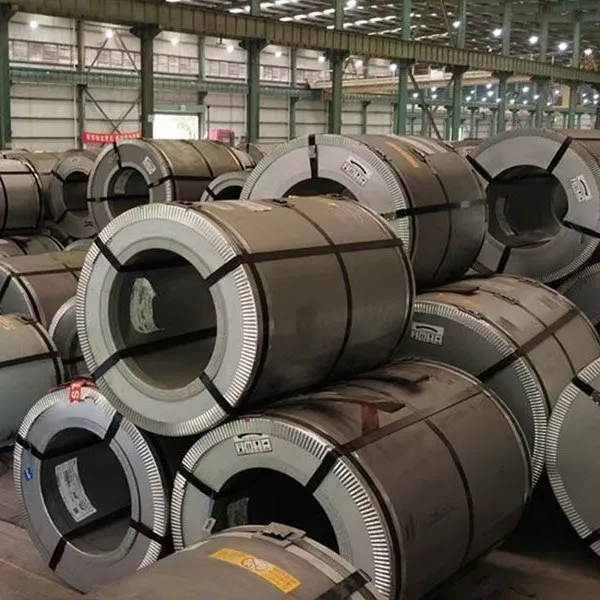

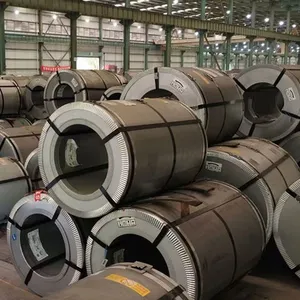

Help CenterASTM IEC JIS Standard CRGO Steel Sheet 27Q120 for Transformer Reactor and CT Core Fabrication
Product Spotlights
Related Products
-
High Permeability Grain Oriented Electrical Steel 30Q130 0.30mm for Transformer Lamination SystemsUS$ 1.45 - 4.25MOQ: 100 Kilograms -
Grain Oriented Silicon Steel Coil 0.27mm 0.30mm for 110kV Power Transformer Core GradeUS$ 1.45 - 4.25MOQ: 100 Kilograms
-
CGO Silicon Steel Coil 0.35mm 30Q120 30Q130 for Distribution Transformer 10kV 35kV CoreUS$ 1.45 - 4.25MOQ: 100 Kilograms
-
HGO Silicon Steel Coil 0.23mm 0.27mm for 500kV UHV Power Transformer Core Low Loss GradeUS$ 1.45 - 4.25MOQ: 100 Kilograms
-
Grain Oriented Steel Coil 0.30mm 0.35mm for Dry Type Transformer Epoxy Resin Core GradeUS$ 1.45 - 4.25MOQ: 100 Kilograms
Standard-Compliant CRGO Steel for Transformer and Reactor Cores
The 27Q120 CRGO steel sheet meets ASTM, IEC, and JIS standards, providing excellent magnetic properties for transformer, reactor, and CT cores. It ensures low core loss, high permeability, and durability, supporting efficient energy transmission and reliable electrical system performance.
Key Specifications (Grain-Oriented Silicon Steel Coil)
Parameter |
Specification / Range |
Remarks |
Standards |
ASTM A876, IEC 60404-8-4, GB/T 2521 |
Others on request |
Grades |
23Q110, 27Q120, 30Q130, 35Q145 |
High-permeability available |
Thickness |
0.18 mm – 0.35 mm |
– |
Width |
600 mm – 1250 mm |
Slit edge available |
Core Loss P1.7 (50Hz) |
0.8 – 1.2 W/kg |
– |
Magnetic Induction B8 |
≥1.80 – 1.88 T |
– |
Coating |
C-5 (T1) / C-6 (T2) insulation coating |
– |
Density |
7.65 g/cm³ |
– |
Testing |
Epstein frame, tension, coating continuity |
Mill cert provided |
Packaging |
Rust-proof paper + steel strapping + wooden pallet |
Seaworthy, ISPM 15 |
Q1：Do you offer sample orders？
A：Yes, samples are available for quality evaluation. Sample cost is charged but refundable upon bulk order.
Q2：What is your MOQ？
A：Our standard MOQ is 100 kg per specification. For common grades and standard sizes, we accept small batch orders. Mixed orders for different products are also welcome.
Q3：Can you provide custom sizes？
A：Yes, we can produce any length, width, thickness, or diameter based on your drawings. Cutting, slitting, and other processing services are available with tolerance as required.
Q4：What certifications do you provide？
A：Each shipment comes with EN 10204 3.1 mill test certificate (MTC). Third-party inspection reports (SGS/BV/TÜV) can be arranged upon request.
Q5：What is your lead time？
A：7–15 working days for stock items. 20–30 days for custom orders, depending on quantity and specification.
Q6：What surface treatments are available？
A：Various surface treatments are available upon request, including pickled, polished, coated, oiled, or as required.
Q7：What payment terms do you accept？
A：T/T (30% deposit + 70% against BL copy), L/C at sight, Western Union, etc.
Q8：What about packaging for export？
A：Standard seaworthy packaging with waterproof protection, steel straps, corner protectors, and ISPM 15 fumigation certification. Custom packaging is available as required.
