1. Product Overview

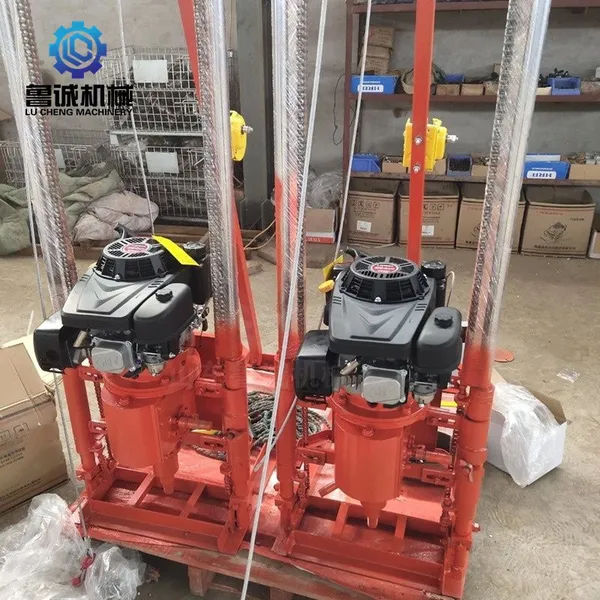

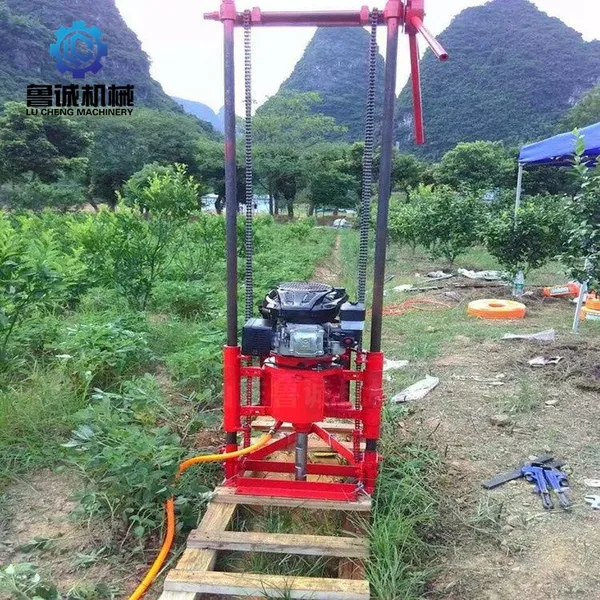

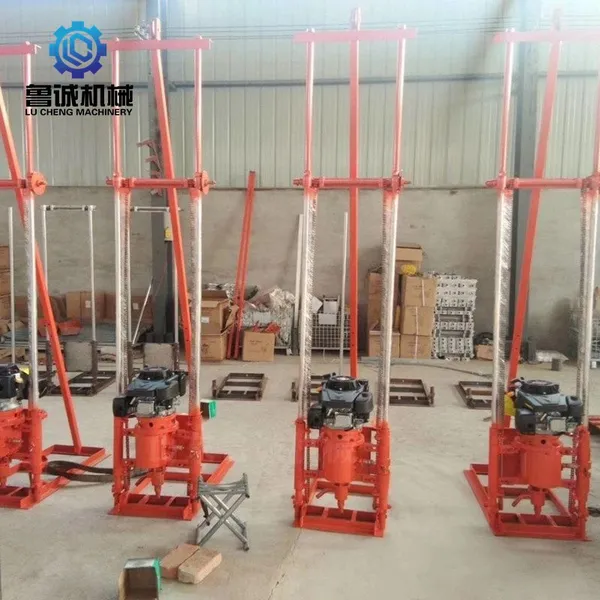

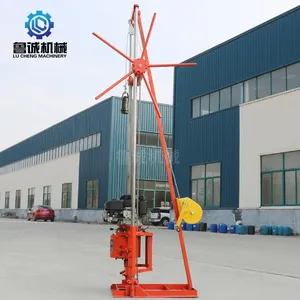

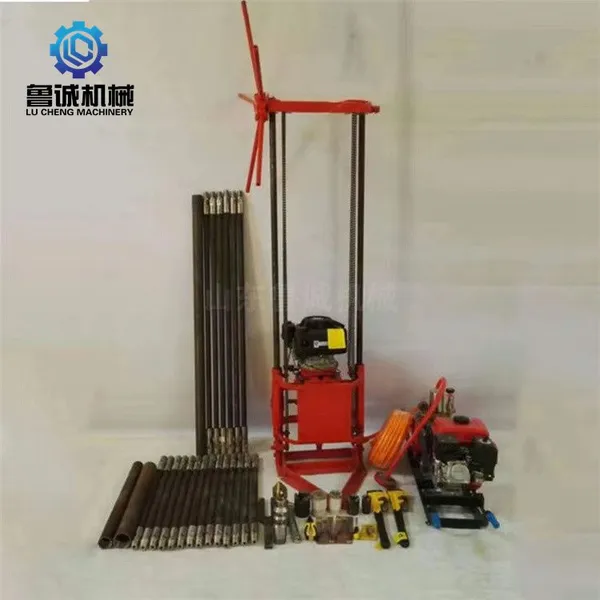

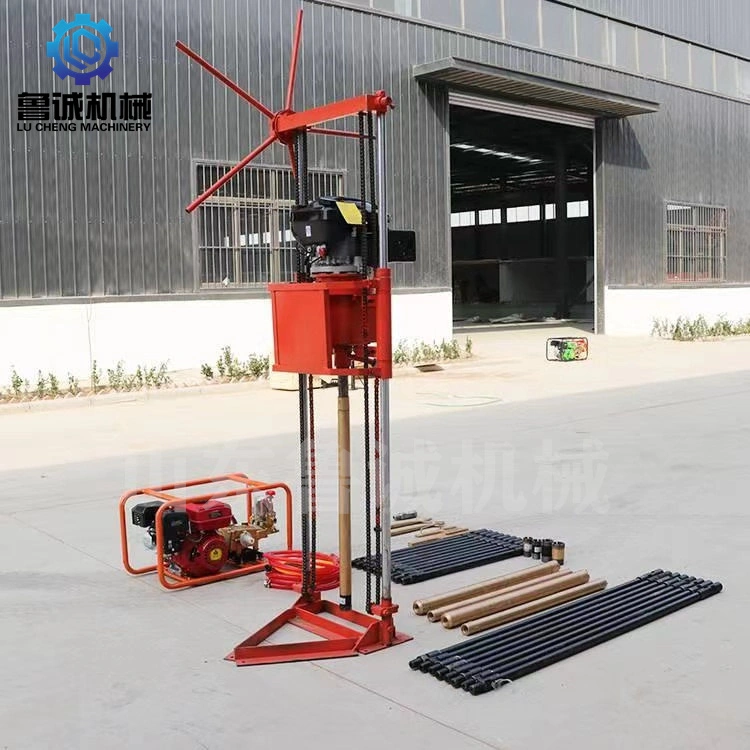

The QZ-2CS gasoline portable sampling drill is an upgraded version of the classic QZ-2C drilling rig, equipped with a manual hand winch system as standard. This optimized design greatly simplifies the pipe lifting and coring retrieval process, effectively reducing manual labor intensity and improving overall field construction efficiency.
Lightweight, flexible and highly adaptable, this drilling machine is widely used in geological prospecting, engineering construction and small-scale water well drilling projects. It is an ideal portable drilling equipment for outdoor field operations, especially suitable for mountainous areas, rural areas and complex road condition scenarios where large drilling rigs cannot enter.
2. Wide Application Scope
This portable drill is extensively applicable to various industries including industrial & civil construction, bridge engineering, railway & highway construction, water conservancy and hydropower projects. It can complete the following professional drilling operations:
Geological exploration and core sampling
Geophysical prospecting pilot hole drilling
Grouting holes and embedded part pilot holes
Blasting holes and engineering inspection holes
Small domestic water well drilling
3. Product Features & Advantages
Upgraded Winch Design: Equipped with manual winch device, realizing labor-saving drill pipe lifting, convenient and efficient coring and pipe taking.
Lightweight & Compact Structure: Integrated body design, small overall size, net weight only 95KG, easy for single-team handling and transportation.
2-Speed Adjustable Transmission: Equipped with dual gear speed regulation, which can match different drilling speeds according to stratum and hole diameter, ensuring stable drilling performance.
High Field Mobility: No need for fixed power supply, driven by gasoline engine, free from power grid restrictions, perfectly adapted to outdoor wild construction environments.
Strong Stratum Adaptability: It can drill through soil layer, soft rock and hard rock, with optional multiple hole diameters, meeting diverse engineering depth requirements.
4. Technical Parameters
Item |
Technical Specification |
|---|---|
Drilling Diameter |
Φ46mm ~ Φ91mm |
Drilling Depth |
Soil layer (Φ91mm): 15~20mRock layer (Φ91mm): 10~15mRock layer (Φ75mm): 15~20mRock layer (Φ60mm): 20~25mRock layer (Φ46mm): 25~30m |
Drill Pipe Diameter |
30mm |
Engine Power |
6HP (4.5KW) |
Engine Displacement |
224cc |
Overall Dimension (L*W*H) |
600*450*1900mm |
Net Weight |
95KG |
5. Why Choose Our QZ-2CS Drilling Rig?
Compared with ordinary portable drilling rigs on the market, the QZ-2CS model adds a practical hand winch, which solves the problem of labor-intensive manual pipe pulling. The whole machine adopts high-strength steel structure and durable gasoline power system, with stable performance and low failure rate. It is the preferred cost-effective equipment for engineering contractors, geological survey teams and small water well drilling projects.
We support customized services, bulk wholesale and OEM cooperation. Welcome global customers to inquire about prices, parameters and shipping solutions!
