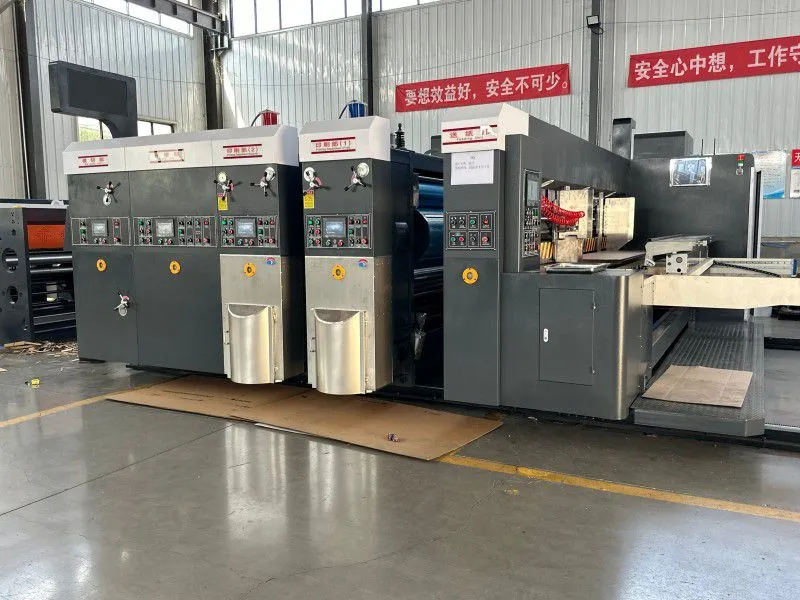

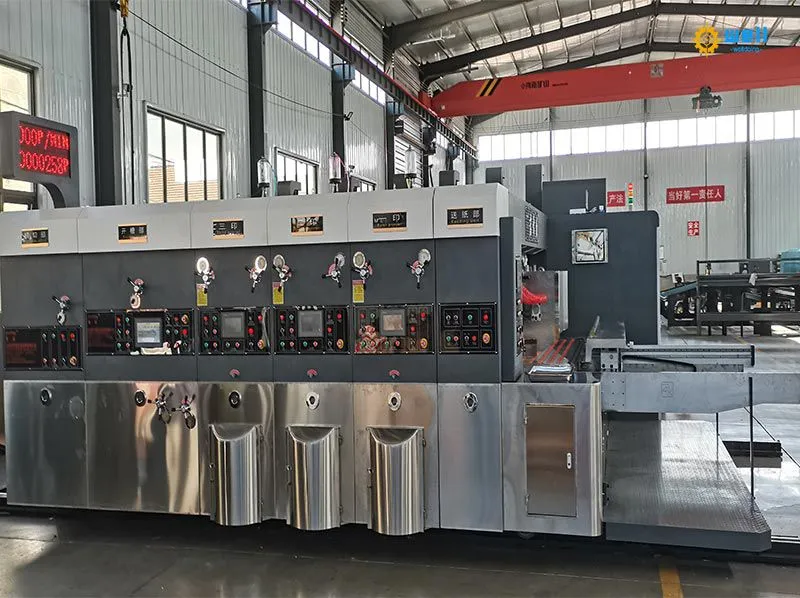

The carton printing slotting machine is a core integrated processing device specially designed for corrugated cardboard packaging production. It combines automatic paper feeding, flexographic printing, precise slotting, trimming and forming processes into one single workflow, which is widely applied in mass production of regular cartons, packaging boxes for food, electronics, daily commodities and e-commerce packages. Replacing traditional separate processing equipment, this all-in-one machine greatly simplifies production procedures, reduces manual intervention and effectively improves the overall efficiency of carton processing lines.
This equipment adopts advanced PLC intelligent control system and servo drive technology, realizing fully automated operation from paper feeding to finished product forming. It supports one-click parameter setting and fast order switching, which shortens debugging time and avoids material waste caused by manual parameter adjustment errors. Equipped with a high-precision vacuum paper feeding structure, the machine ensures stable cardboard transmission without offset, effectively solving common problems such as paper jamming and irregular feeding in traditional machines. Meanwhile, it adopts eco-friendly water-based ink circulation system, which guarantees clear printing patterns, bright colors and meets global environmental protection production standards.

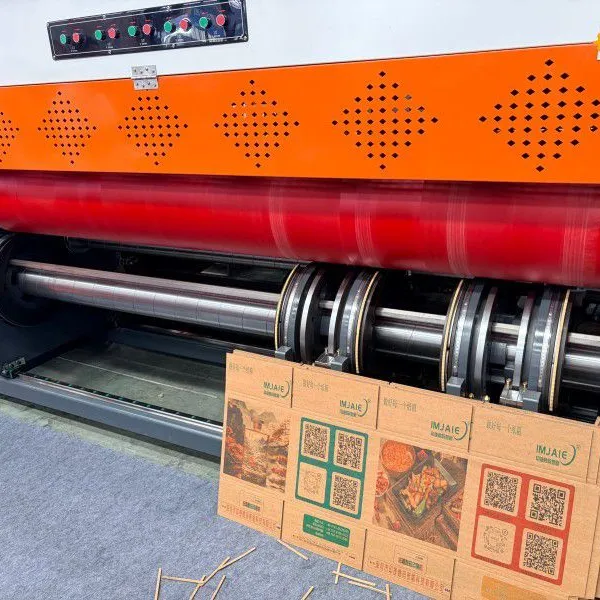

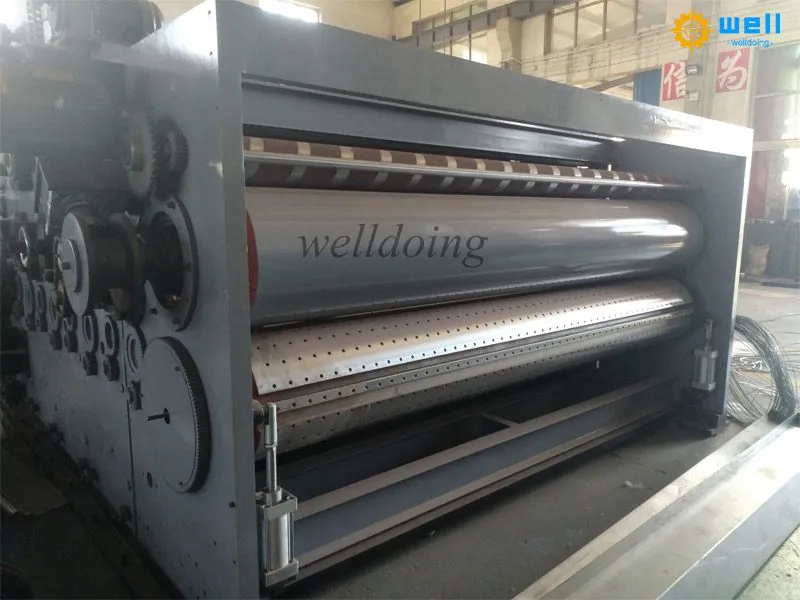

In terms of processing accuracy and stability, the machine is manufactured with high-hardness alloy transmission gears and thickened steel frame structure. All key components undergo fine grinding and hardening treatment, with gear hardness reaching over HRC 60, ensuring long-term high-load operation without deformation. The slotting unit adopts multi-group precision slotting wheels, achieving burr-free and flat grooving. The printing overprinting error is controlled within ±0.5mm, fully meeting the high-precision printing and forming requirements of high-end packaging cartons. Moreover, the machine is equipped with automatic error correction and overload protection devices, which can automatically alarm and stop operation in case of abnormal operation, effectively reducing equipment failure rate and production loss.
With strong production adaptability, the equipment is compatible with 3-layer, 5-layer and 7-layer corrugated cardboard, supporting 1-6 color flexible printing. It can process cartons of different sizes and specifications by adjusting parameters freely, realizing flexible production of diversified orders, whether for large-batch standardized production or small-batch customized processing. The detailed core technical parameters are shown in the table below:
Technical Item |
Parameter Specification |
|---|---|
Max. Processing Speed |
180 pieces per minute |
Printing Color Number |
1-6 colors optional |
Overprinting Accuracy |
±0.5mm |
Applicable Cardboard |
3/5/7-layer corrugated cardboard |
Total Power |
90-141KW |
Working Voltage |
380V/50Hz Industrial Voltage |
Machine Dimension |
6600-15000*4240-5800mm |
Failure Rate |
≤1.2% annual average |
In terms of operational cost and after-sales performance, the machine features low energy consumption and convenient maintenance. The circulating ink supply system reduces ink waste by more than 15% compared with traditional equipment. The modular structure design makes component replacement and daily maintenance simpler, greatly reducing later operation and maintenance costs. With stable performance and long service life, it can adapt to long-time uninterrupted industrial production. For packaging manufacturers, this carton printing slotting machine is an ideal high-efficiency and cost-saving processing device, which can effectively upgrade production capacity, improve carton finished product quality, and enhance market competitiveness in the packaging industry.
