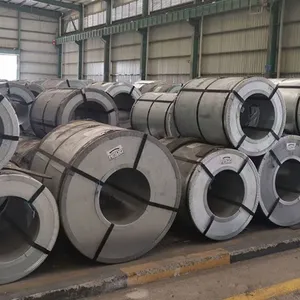

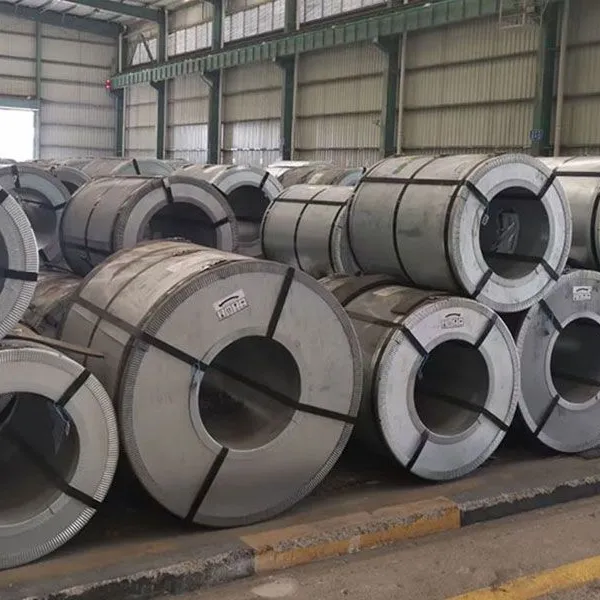

Help CenterASTM A876 CRGO Grain Oriented Electrical Steel 23Q110 0.23mm C5 Coated Transformer Core Sheet
Product Spotlights
Related Products
-
IEC 60404 Grain Oriented Silicon Steel 27Q120 0.27mm High Permeability for Power TransformersUS$ 1.45 - 4.25MOQ: 100 Kilograms -
M3 Grain Oriented Electrical Steel Coil 0.23mm Width 1000mm Low Core Loss Transformer LaminationUS$ 1.45 - 4.25MOQ: 100 Kilograms
-
Hi-B CRGO Silicon Steel Sheet 0.18mm ASTM A876 Magnetic Induction 1.88T for Reactor CoresUS$ 1.45 - 4.25MOQ: 100 Kilograms
-
JIS C2553 Grain Oriented Steel 30Q130 C6 Insulation Coating for Distribution Transformer CoreUS$ 1.45 - 4.25MOQ: 100 Kilograms
-
GB/T 2521 Oriented Electrical Steel Coil 23Q110 600-1250mm Width for Energy Efficient TransformersUS$ 1.45 - 4.25MOQ: 100 Kilograms
High-Efficiency CRGO Steel for Transformer Core Manufacturing
23Q110 grain oriented electrical steel is designed for power and distribution transformer cores. Its superior magnetic induction and low iron loss help improve transformer efficiency while reducing operating costs. The C5 insulation coating enhances interlaminar resistance, making it suitable for precision core laminations and energy-saving electrical equipment.
Key Specifications (Grain-Oriented Silicon Steel Coil)
Parameter |
Specification / Range |
Remarks |
Standards |
ASTM A876, IEC 60404-8-4, GB/T 2521 |
Others on request |
Grades |
23Q110, 27Q120, 30Q130, 35Q145 |
High-permeability available |
Thickness |
0.18 mm – 0.35 mm |
– |
Width |
600 mm – 1250 mm |
Slit edge available |
Core Loss P1.7 (50Hz) |
0.8 – 1.2 W/kg |
– |
Magnetic Induction B8 |
≥1.80 – 1.88 T |
– |
Coating |
C-5 (T1) / C-6 (T2) insulation coating |
– |
Density |
7.65 g/cm³ |
– |
Testing |
Epstein frame, tension, coating continuity |
Mill cert provided |
Packaging |
Rust-proof paper + steel strapping + wooden pallet |
Seaworthy, ISPM 15 |
Q1：Do you offer sample orders？
A：Yes, samples are available for quality evaluation. Sample cost is charged but refundable upon bulk order.
Q2：What is your MOQ？
A：Our standard MOQ is 100 kg per specification. For common grades and standard sizes, we accept small batch orders. Mixed orders for different products are also welcome.
Q3：Can you provide custom sizes？
A：Yes, we can produce any length, width, thickness, or diameter based on your drawings. Cutting, slitting, and other processing services are available with tolerance as required.
Q4：What certifications do you provide？
A：Each shipment comes with EN 10204 3.1 mill test certificate (MTC). Third-party inspection reports (SGS/BV/TÜV) can be arranged upon request.
Q5：What is your lead time？
A：7–15 working days for stock items. 20–30 days for custom orders, depending on quantity and specification.
Q6：What surface treatments are available？
A：Various surface treatments are available upon request, including pickled, polished, coated, oiled, or as required.
Q7：What payment terms do you accept？
A：T/T (30% deposit + 70% against BL copy), L/C at sight, Western Union, etc.
Q8：What about packaging for export？
A：Standard seaworthy packaging with waterproof protection, steel straps, corner protectors, and ISPM 15 fumigation certification. Custom packaging is available as required.
