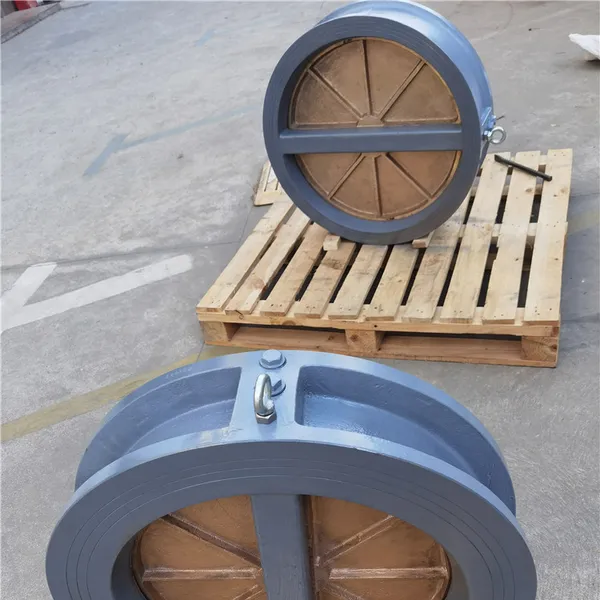

Help CenterCompact Wafer Type Check Valve CBT4303 for Engine Room Pipework Installation
Product Spotlights
Related Products
-
Marine Check Valve CBT4303 With EPDM Seal, Wafer Type, Bronze ConstructionNegotiableMOQ: 20 Units -
Marine Wafer Type Bronze Disc Butterfly Check Valve CBT4303 for Seawater Cooling SystemsNegotiableMOQ: 20 Units
-
Low-Pressure Drop Marine Check Valve CBT4303, Wafer Type With Bronze DiscNegotiableMOQ: 20 Units
-
Bronze ASTM B62 Check Valve CBT4303 With Wafer Design for Marine PipingNegotiableMOQ: 20 Units
-
CBT4303 Wafer Butterfly Check Valve, 150 PSI Working Pressure, Bronze BodyNegotiableMOQ: 20 Units
As a professional manufacturer with a strong commitment to quality and reliability, Shanghai Zhibang Valve Manufacture Co., Ltd. proudly presents the Compact Wafer Type Check Valve CBT4303. Engineered specifically for demanding applications such as engine room pipework installation, this valve is designed to deliver exceptional performance, durability, and safety in critical fluid handling systems. Our years of expertise since 2016, backed by ISO9001-certified manufacturing processes, ensure that every CBT4303 valve meets the highest standards, providing you with a dependable solution to prevent backflow and protect your equipment.
The core value of the CBT4303 lies in its robust construction and intelligent design. It is a vital component for maintaining unidirectional flow in pipelines, safeguarding pumps, compressors, and other machinery from potential damage caused by reverse flow. Its compact wafer design makes it an ideal choice for space-constrained environments like marine engine rooms, industrial plants, and HVAC systems, where efficiency and reliability are non-negotiable.
Let's delve into the detailed features, technical specifications, and advantages that make the CBT4303 a superior choice for engineers and procurement specialists worldwide.
Key Features & Technical Advantages:
- Space-Optimized Wafer Design: The valve installs directly between two pipe flanges, eliminating the need for extra piping space or additional gaskets. This results in a lighter, more compact, and cost-effective installation compared to traditional flanged check valves.
- Bidirectional Sealing & Swift Response: The valve utilizes a dual-plate or swing-type disc mechanism (depending on configuration) that provides tight sealing against reverse flow from both directions. The hinge mechanism ensures a quick and positive closure upon flow cessation, minimizing water hammer effects.
- Durable Material Construction: The valve body is typically crafted from high-grade ductile iron or optional stainless steel (AISI 304/316) for superior corrosion resistance. The sealing seat is available in various elastomers like NBR, EPDM, or FKM (Viton) to suit different fluid media (water, oil, air, mild chemicals) and temperature ranges.
- Low Pressure Drop & High Flow Efficiency: The internal design minimizes flow obstruction, ensuring a low pressure drop across the valve. This characteristic is crucial for maintaining system efficiency and reducing energy consumption in pumping applications.
- Versatile Application Range: While ideal for engine room pipework on ships and offshore platforms, its application extends to various industries including power generation, water treatment, chemical processing, and building services.
- Customizable Configurations: We understand that every project has unique requirements. Therefore, the CBT4303 series offers customization options in terms of size, pressure rating, material combination, and end connection standards to match your specific specifications.
Technical Specifications Table:
| Parameter | Specification / Option |
|---|---|
| Model | CBT4303 Series |
| Valve Type | Wafer Check Valve, Dual Plate / Swing Type |
| Size Range (Nominal Diameter) | DN50 (2") to DN600 (24") - Custom sizes available |
| Pressure Rating | PN10, PN16, PN25 (Class 150, Class 300 optional) |
| Body Material | Ductile Iron (Standard), Cast Steel, Stainless Steel (A304/A316) |
| Disc Material | Stainless Steel / Ductile Iron with coating |
| Seat Material | NBR (Standard), EPDM, FKM, PTFE (Optional) |
| Connection | Wafer (between flanges), ANSI, DIN, JIS, GB standards |
| Temperature Range | -10°C to 120°C (depends on seat material, higher ranges available) |
| Applicable Media | Water, Oil, Air, Steam, Sea Water, Mild Chemical Solutions |
Benefits for Your Project:
- Enhanced System Protection: Effectively prevents reverse flow, protecting expensive pumps, meters, and other downstream equipment from damage.
- Reduced Installation & Maintenance Costs: The compact design lowers installation time, labor, and material costs (fewer bolts, no spool pieces). Its robust design also ensures long service life with minimal maintenance.
- Improved Operational Safety: Reliable backflow prevention is critical for safety in engine rooms and industrial plants, preventing accidents and ensuring process integrity.
- Global Compliance & Flexibility: Manufactured to meet international standards, our valves are suitable for projects worldwide. Customization options allow for perfect integration into your existing or new piping systems.
Choosing Shanghai Zhibang means partnering with a reliable and experienced manufacturer. Since our establishment in 2016, we have built a strong reputation by exporting high-quality valves to diverse markets across North America, South America, Europe, Asia, Africa, and Oceania, with an annual export value ranging between US$1-1.5 Million. Our ISO9001 certification is a testament to our unwavering commitment to consistent quality control throughout our production process. We offer flexible shipment from major ports like Shanghai, Guangzhou, Hong Kong, and Beijing, ensuring timely delivery to your doorstep. The Compact Wafer Type Check Valve CBT4303 embodies our dedication to providing efficient, durable, and cost-effective fluid control solutions. Contact us today to discuss your specific requirements, request a detailed quotation, or to learn how this valve can enhance the reliability and safety of your engine room pipework installation.
Frequently Asked Questions (FAQ)
-
Q: What is the main advantage of a wafer-type check valve over a flanged type?
A: The primary advantage is its compact and lightweight design. It installs directly between two existing pipeline flanges, saving significant space and weight. This also reduces installation time and costs as it requires fewer bolts and no additional piping spools. -
Q: Is the CBT4303 suitable for seawater applications in marine engine rooms?
A: Yes, absolutely. We offer configurations with stainless steel (AISI 316) body and discs along with compatible seat materials like EPDM or FKM, which provide excellent corrosion resistance against seawater, making it ideal for marine and offshore applications. -
Q: Can this valve be installed in any orientation?
A: For optimal performance and to ensure proper disc closure by gravity, it is recommended to install wafer check valves in horizontal pipelines with flow in the upward direction. Installation in vertical lines or other orientations may require specific design considerations; please consult our technical team for guidance. -
Q: What is the typical lead time for an order?
A: Lead time depends on the order quantity, specific customization, and material availability. For standard configurations and moderate quantities, we typically aim for delivery within 4-6 weeks. We provide accurate lead time estimates with every quotation. -
Q: Do you provide pressure testing reports or certification for the valves?
A: Yes. As an ISO9001-certified manufacturer, we conduct rigorous pressure tests (shell test and seat test) on our valves. Test reports are available upon request and can be provided with the shipment to ensure compliance with your project's quality requirements. -
Q: How does the valve handle water hammer or surge pressure?
A: The CBT4303 is designed for quick and positive closure to minimize slam. The disc design and spring-assisted mechanism (if applicable in the model) help cushion the closing action, reducing the potential for water hammer. For systems with severe surge conditions, specific design modifications can be discussed. -
Q: Are spare parts like seals or discs available for maintenance?
A: Yes, we maintain an inventory of common spare parts for our valve models. Replacement kits for seat seals and other wear parts are available for purchase, ensuring easy maintenance and extending the valve's service life. -
Q: Can you customize the valve to meet specific project standards like ANSI or DIN?
A: Certainly. Customization is one of our strengths. We can manufacture the CBT4303 valve to meet specific dimensional standards (ANSI, DIN, JIS, GB), pressure classes, and material specifications as required by your project's engineering documents.
