Company Profile
1.Founded in 1999, KUNTENG Machinery is a technology-based enterprise integrating R&D, manufacturing, sales and after-sales. 2.We have our own R&D(research and development)team. We have ability design the factory building, circuit direction, and machine assemble for the entire project. 3.Waste sorting machines is strictly controlled by the quality inspection department before loading to the container to ensure that each set of equipment work smoothly. 4.The company's products have passed more than 100 national patents, and passed passed ISO, CE quality system certification.
High quality municipal waste separation machine suppliers small gravel waste trommel drum rotary screening equipment
Production Description

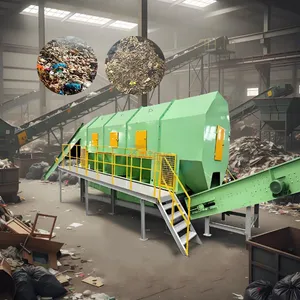

Trommel screen machine designed and produced by our company is an ideal waste sorting machine, mainly used for sorting urban waste, municipal solid waste,city garbage,household waste,construction waste,and stale waste. According to the waste, it can be customized, It is an important waste sorting equipment in the solid waste sorting line.Working principle:The trommel screen machine mainly use motor to drive the drum device to rotate around its axis.When the material enters the drum, the drum device is installed obliquely, and the material rolls along the flow. Materials smaller than the sieve hole are screened out at the below discharge port , while materials larger than the sieve hole continue to roll on the screen surface and are screened out at the end discharge port.
Advantages:
1. Large processing capacity,non clogged sieve holes,and accurate particle size sorting.
2. Fully sealed structure, no dust, no pollution, beneficial for production and working environment.
3. Simple structure and convenient maintenance.
KUNTENG waste air separation machine is an important waste sorting machine,used to sorting plastic waste,paper waste and other light waste materials.By using the theory of aerodynamics, light waste material and heavy waste material is separated, and output through discharge conveyor.The air volume is adjustable, wind pressure is adjustable.
Garbage bag breaker
Chain plate waste feeder
Manual waste sorting table
Waste Incinerator
Waste shredder machine
Waste baller machine
Municipal waste sorting line/Waste sorting plant Workflow:
1.Household waste,municipal solid waste, urban solid waste,city garbage,construction waste, or stale waste enters the chain plate waste feeder — 2.Belt conveyor — 3.Waste trommel screen machine (which mesh sizes of 10-200mm. can sorting waste according to the material size) — 4.Magnetic separator(sorting metal waste) — 5.Waste air separation machine(Sorting plastic waste,waste carton,cloth and other light waste materials from the large waste stones, soil blocks) — 6.Manual waste sorting table(Manually sort and classify the remaining recyclable waste) — 7.Waste baller machine(plastic bottles, rubber, metals, cardboard, hard plastics waste, etc.these recyclable waste can be baled).
Metal cans waste recycling
Cartons waste recycling
Plasterboard/waste glass recycling into bricks
Organic waste recycling into organic fertilizer
Our service:
KUNTENG machinery focus on the municipal waste sorting machines for many years.We can design the most reasonable municipal solid waste sorting solution for customers,and improve the added value of waste sorting machines,let our clients feel free from the using troubles.
1) Assisting the clients preparing for the first construction scheme; 2) Installing and testing the equipment; 3) Training the first-line operators on site; 4) Examining the equipment regularly; 5) Taking the initiatives to eliminate the failure(s) rapidly at site; 6) Providing technical exchanging; 7) Providing maintenance for big items.
Welcome to our factory to discuss cooperation.
Specifications of Waste Sorting Line
High quality municipal waste separation machine suppliers small gravel waste trommel drum rotary screening equipment |
|||||
Model |
JTS1500 |
JTS1800 |
JTS2000 |
JTS2200 |
JTS2500 |
Rated output |
50t/day |
100t/day |
200t/day |
300t/day |
500t/day |
Box feeder |
B800×4000 |
B1000×4000 |
B1200×4000 |
B1400×4000 |
B1400×7000 |
Trommel screen |
T1500*6000 |
T1800*6000 |
T2000*6000 |
T2200*8000 |
T2500*8000 |
Magnetic separator |
RCYD-6 |
RCYD-8 |
RCYD-10 |
RCYD-10 |
RCYD-12 |
Air separator |
GX-A60 |
GX-A80 |
GX-A100 |
GX-A120 |
GX-A160 |
Baller |
B30T |
GX-B80 |
GX-B100 |
GX-B120 |
GX-B160 |
Number of conveyors |
B650*6 |
B800*6 |
B1000*6 |
B1200*6 |
B1200*6 |
Floor area |
18m*58m |
19m*60m |
20m*62m |
22m*65m |
24m*77m |
Total Power |
84kw |
102kw |
135kw |
165kw |
222kw |
Successful Project
Our 100t/day municipal solid waste sorting machines working site,we designed and produced a complete set of waste sorting lines for client.
This is construction waste sorting recycling plant with a daily output of 100 tons.we received satisfactory feedback from our customer.
Our vietnamese customer municipal waste sorting machines and recycling plant, the city garbage and construction waste mixed together, We also designed a reasonable waste sorting line to separate the mixed garbage.This daily output is around 50 tons.
PACKING & SHIPPING
The waste sorting machines for whole production line will be loaded into the 20/40 GP container directly.
FAQ
Q: What is your Business Model? Trading company or factory?
A:We are a 25 years factory, all our machinery are manufactured by ourselves, factory direct sales, product quality and after-sales service can be guarantee.
Q: What is the Quality of your municipal waste separation machine,municipal waste trommel screen,municipal waste screening equipment?
A: Our municipal waste separation machine,municipal waste trommel screen,municipal waste screening equipment passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, India, Italy ,Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q: What is the Installation of your municipal waste separation machine,municipal waste trommel screen,municipal waste screening equipment?
A: KUNTENG Group has several experienced technicians with passports ready to go for installation, when installation service is needed, the client should pay for technicians' round way air tickets, food and lodging, most importantly to guarantee the technician's safety.
