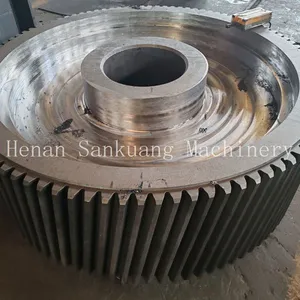

Help CenterCustom Cast Steel Gear & Cast Iron Gear for Industrial Reducers
Product Spotlights
Related Products
-
42CrMo Gear With Carburized Surface Hardness 60 HRC for Wind Turbine Pitch DrivesNegotiableMOQ: 1 Piece -
Cast Iron Gear for Cement Mixer Drive Train With Custom Tooth ProfileNegotiableMOQ: 1 Piece
-
Forged Gear for Mining Conveyor Systems With 10-Year Design LifeNegotiableMOQ: 1 Piece
-
Cast Steel Gear DIN 3990 Quality 10 for Agricultural Equipment DrivetrainsNegotiableMOQ: 1 Piece
-
42CrMo Alloy Steel Forged Gear Heat-Treated to 850 MPa Tensile StrengthNegotiableMOQ: 1 Piece
As a specialized manufacturer with a decade of experience, Henan San Kuang Machinery Technology Co., Ltd. is proud to offer high-performance Custom Cast Steel Gears and Cast Iron Gears designed specifically for demanding industrial reducer applications. Our gears are engineered to deliver exceptional durability and precise power transmission, helping to enhance the efficiency and longevity of your machinery. Operating from a modern facility spanning over 10,000 square meters, we combine advanced casting technology with stringent quality control to produce components that meet the rigorous demands of global markets, from North America to Southeast Asia.
Our custom gear manufacturing service focuses on providing solutions that integrate seamlessly into your existing systems. We understand that industrial reducers operate under high stress and variable loads, which is why we prioritize material integrity and dimensional accuracy in every gear we produce.
Key Features and Technical Advantages:
- Material Excellence: We utilize premium-grade cast steel and cast iron, selected for their superior strength, wear resistance, and ability to withstand shock loads common in reducer applications.
- Precision Casting: Our casting processes are optimized to achieve near-net shapes, minimizing machining requirements and reducing material waste while ensuring critical tolerances are met.
- Custom Design Flexibility: Whether you need spur gears, helical gears, bevel gears, or worm gears, we can manufacture to your exact specifications, including module, pressure angle, number of teeth, and bore size.
- Enhanced Durability: The casting method allows for optimal grain flow and structural integrity, resulting in gears with excellent fatigue life and resistance to pitting and scoring.
- Heat Treatment Options: Depending on the application requirements, we can provide various heat treatment processes such as annealing, normalizing, quenching, and tempering to achieve desired hardness and toughness properties.
- Comprehensive Finishing: Post-casting operations include machining, grinding, and finishing to ensure smooth tooth profiles, precise bore dimensions, and proper surface quality for optimal meshing and noise reduction.
Technical Specifications Overview:
| Parameter | Cast Steel Gears | Cast Iron Gears |
| Common Material Grades | ZG270-500, ZG310-570, ASTM A148 | HT250, HT300, QT450-10, QT500-7 |
| Typical Module Range (mm) | 2 to 30 | 2 to 25 |
| Outer Diameter Range (mm) | Up to 3000 | Up to 2500 |
| Weight Capacity | Single pieces up to 5000 kg | Single pieces up to 4000 kg |
| Primary Applications | High-torque, heavy-duty reducers, mining equipment, marine drives | General industrial reducers, conveyor systems, agricultural machinery |
| Key Advantage | High strength & impact resistance | Good wear resistance & damping capacity |
Benefits for Your Business:
- Extended Reducer Lifespan: Durable gears reduce downtime and maintenance costs by providing reliable performance over extended periods.
- Improved Power Transmission Efficiency: Precision-machined tooth profiles ensure smooth engagement and minimize power losses within the reducer assembly.
- Reduced Operational Noise: Properly cast and finished gears contribute to quieter reducer operation, which is beneficial for workplace environments.
- Supply Chain Reliability: With an annual export value in the multi-million dollar range and established shipping routes from major ports like Shanghai and Qingdao, we ensure timely and dependable delivery.
- Cost-Effective Solutions: The casting process is often more economical for medium to large-sized gears, especially in lower to medium volume production runs, offering a favorable balance between performance and cost.
Frequently Asked Questions (FAQ):
Q1: What is the main difference between choosing cast steel or cast iron for my reducer gear?
A1: The choice depends on your application's demands. Cast steel gears offer higher tensile strength and better impact resistance, making them suitable for extremely heavy-duty or shock-load conditions. Cast iron gears provide excellent wear resistance, good machinability, and inherent vibration damping properties, often at a lower cost, making them ideal for many general industrial reducer applications.
Q2: Can you manufacture gears to match my existing reducer's specifications?
A2: Yes, absolutely. We specialize in custom manufacturing. By providing your detailed drawings or specifications—including module, pressure angle, number of teeth, bore size, keyway details, and material grade—we can produce a gear that is a direct replacement or an upgrade for your current component.
Q3: What level of precision can I expect from your cast gears?
A3: Our casting process is designed to achieve a high degree of dimensional accuracy as-cast. This is followed by precision machining operations on critical surfaces like the bore and tooth flanks. We typically work to AGMA or ISO quality grades as specified by the customer, ensuring the gear meets the functional requirements of your reducer.
Q4: Do you provide any surface treatments or coatings on the gears?
A4> Various surface treatments and coatings are available upon request. Common options include phosphating for run-in protection, black oxide coating, and paint. For specific corrosion resistance or enhanced surface hardness requirements, we can discuss applicable treatments during the design phase.
Q5: What information do I need to provide to get a quotation for a custom gear?
A5: To provide an accurate and timely quote, please share your gear drawing (2D or 3D), material specification, required quantity, and any applicable standards (e.g., AGMA, DIN, ISO). Information about the reducer's operating conditions, such as torque, speed, and load type, is also helpful for our engineering review.
Q6: What is your typical lead time for custom gear production?
A6: Lead time varies based on the gear's complexity, size, and order quantity. For standard configurations, production can often be completed within 4-6 weeks. We will provide a confirmed schedule upon order acceptance and work diligently to meet your project timeline.
Q7: How do you ensure quality control during the manufacturing process?
A7> Our quality management is guided by recognized standards. We implement process controls at every stage, from raw material inspection to final dimensional verification. Key checks include chemical composition analysis, mechanical property testing, non-destructive testing (like magnetic particle or ultrasonic inspection for critical applications), and rigorous gear geometry measurement.
Q8: What are your packaging and shipping terms?
A8> Gears are carefully packaged using wooden crates or plywood boxes with internal bracing and moisture protection to prevent damage during transit. We ship globally from major Chinese ports and can work under various Incoterms (FOB, CIF, etc.) based on your preference and location.
Backed by a robust operational framework that includes a sizable manufacturing facility and a team of 51-100 skilled professionals, Henan San Kuang Machinery has built a strong reputation for reliability in the global power transmission components market. Our commitment to quality is reflected in our adherence to a comprehensive management system. We invite you to leverage our expertise in custom gear casting to find a durable, high-performance solution for your industrial reducer needs. Contact us today to discuss your specific requirements and receive a detailed proposal.
