Production Description
Hydraulic briquette machine Description
This kind of new design stainless hydraulic press machine is designed for making various shape and size of product, material can be charcoal powder, sawdust, mineral powder,fertilizer,coke dust, coal dust,etc. This type hydraulic pressure is more than normal
standard hydraulic press machine, so can make high density and hardness briquettes, and briquettes surface is very smooth and beautiful.

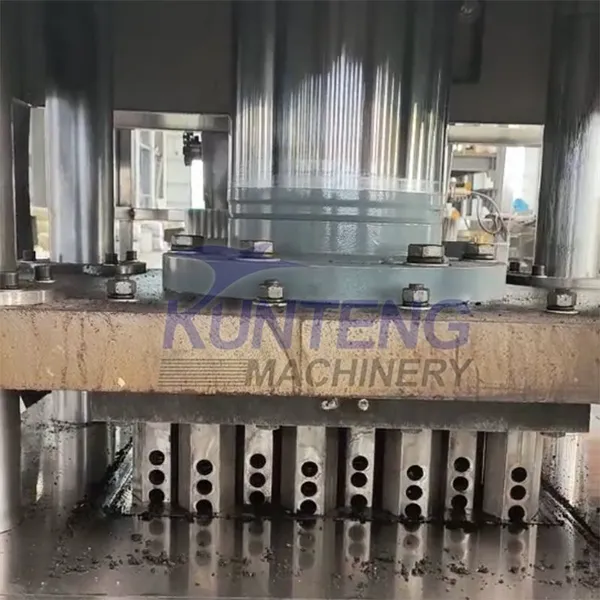

Details display
Advantage of quick light charcoal briquettes machine
1. PLC control machine work auto or manual.
2. This kind quick light charcoal briquettes machine mold plate is bigger than old press machine, so capacity is bigger than old type.
3. Total quick light charcoal briquettes machine we use stainless steel made,include mold, featuring wear resistance and corrosion resistance.
4. Easy for clean, after one day finish working, can use water to clean, no problem.
5. This pressure is bigger than old type, so final product density will be high, long burning time.
6. There is a mixing shaft inside the feed hopper to prevent difficult blanking.
7. Mold shape can be customized, also can make logo on it.
8. No need install, when receive machine, connect electric is ok.

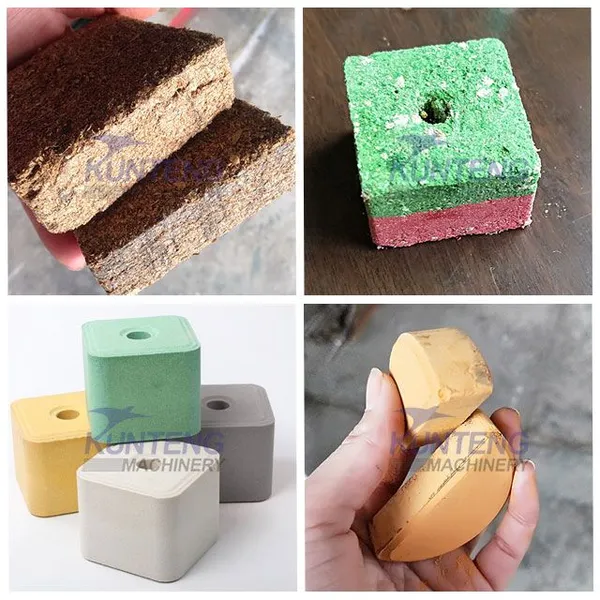

Raw material
Wide range of applications Hydraulic press machine is designed for making various shape and size of product, material can be charcoal powder, sawdust,mineral powder,fertilizer,coke dust, coal dust,etc.

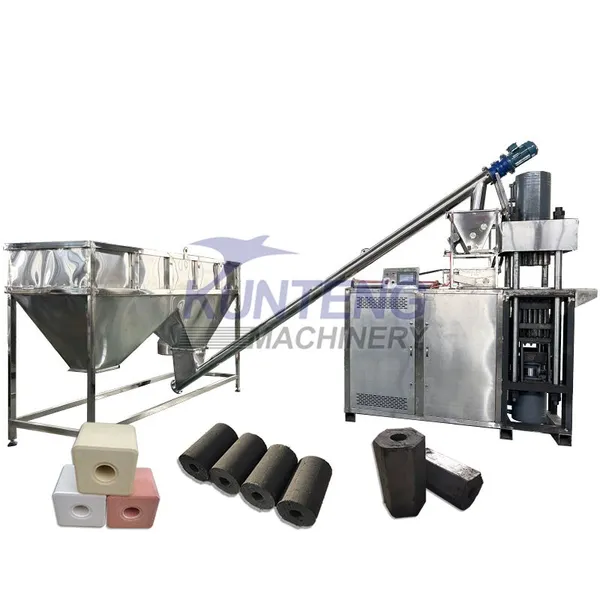

Production Line
Model |
KT-300(Hydraulic pressure) |
KT--500(hydraulic pressure) |
Materials |
charcoal powders, coal powders, sawdust, any powders form Materials |
|
Capacity |
800-1000kg/h, depends on your materials and size of briquette |
1000-1500kg/h, depends on your materials and size of briquette |
Motor |
15 kw |
15kw |
Height of briquettes |
within 30 mm, diameter customized |
less than 10 mm |
Feeding materials |
||
Briquettes shape |
cube, round tablet or as customers’ request |
cylinder, hexagonal or as customers’ request |
Pressure |
300 tons |
500 tons |
Overall size |
2500*720*2200 mm |
2640*800*3000 mm |
Weight |
5000 KG |
7000 KG |
Related Products
Our company produces equipment for drying various wood products. The equipment consists of a feeding system, a circulating fan system and a temperature control system; it can be equipped with a hot air circulation device or a steam heating device according to different requirements.

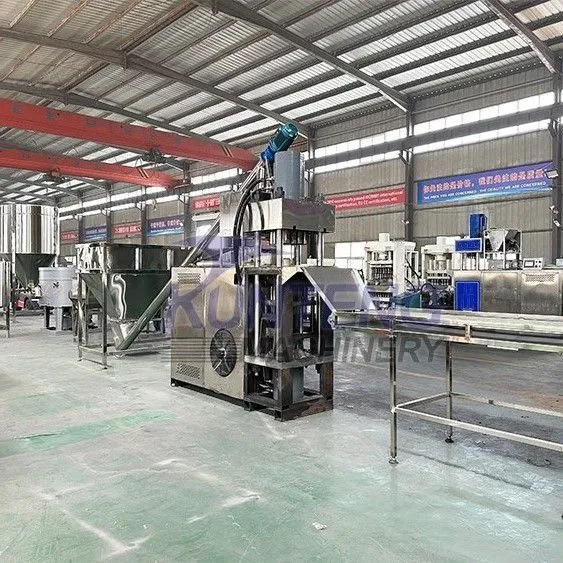

CUSTOMER SITE
We have completed many design cases for customers all over the world. It has rich industry experience and a database of hundreds of agricultural product drying processes. According to the different needs of customers, we can customize production lines and supporting facilities at different prices.
Packing and shipping
COMPANY PROFILE
Henan Kunteng Machinery Manufacturing Co., Ltd. was established in 1999, mainly engaged in waste sorting equipment, charcoal equipment, drying equipment, and mineral processing equipment. Such as baler, briquette machine, dryer, coal rod machine, charcoal machine, briquette machine and auxiliary equipment, comprehensive winnowing machine, etc. The company has been approved as an independent import and export enterprise in China, an ISO international quality certification enterprise, and an EU CE certification enterprise. It was rated as an honest private enterprise in Zhengzhou and a patent demonstration enterprise in Zhengzhou. Has obtained 8 utility model patents, 2 appearance patents, and applied for 1 invention patent.
FAQ
Q1: Are you a factory or a trading company? A1: We are a professional manufacturer in China Q2: How long is the warranty period? A2: These garbage sorting equipment are usually guaranteed for 12 months. Wear parts are excluded. Q3: What is your delivery time? A3: We will arrange the machine to be shipped in the factory within 15 working days after receiving the advance payment. We provide a complete production line, including factory design, circuit wiring, equipment placement, etc.
