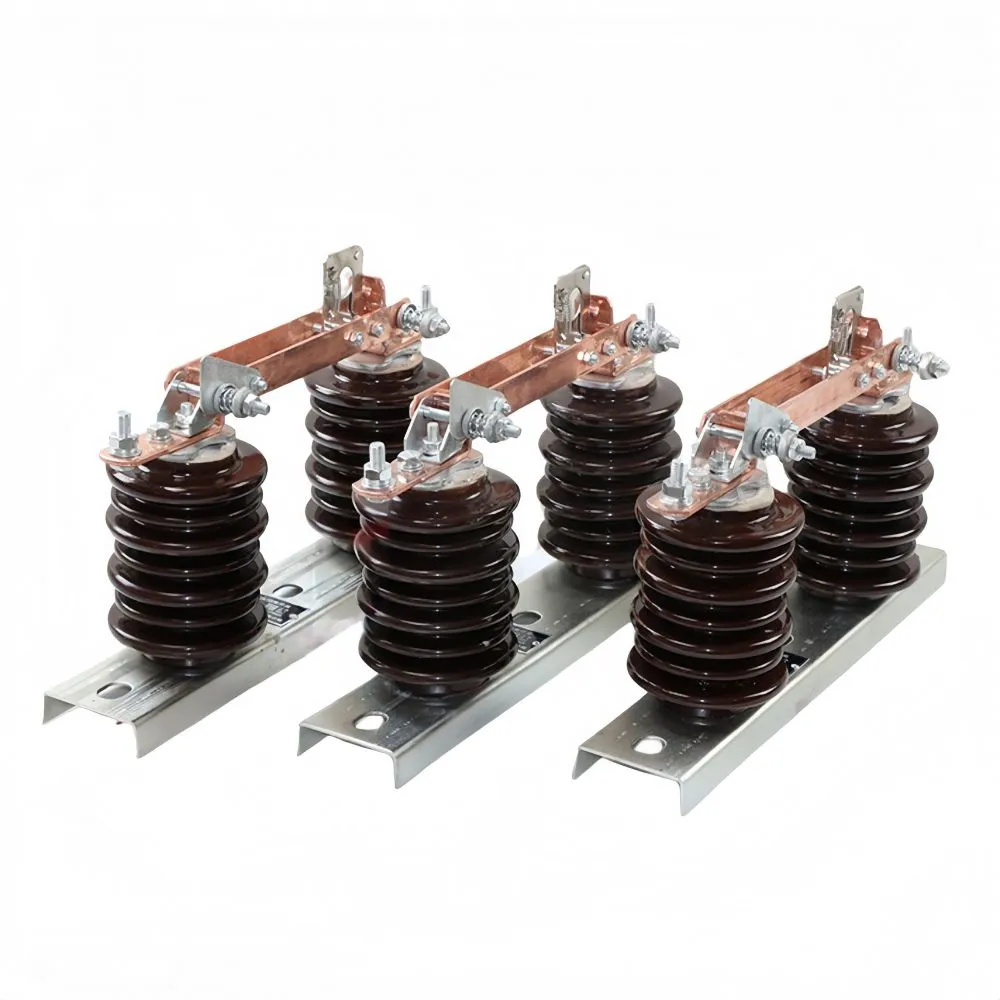

Help Center12kV 630A Outdoor Disconnecting Switch GW9-12 for Power Distribution Networks
Product Spotlights
Related Products
-
Heavy-Duty 12kV 630A Outdoor Disconnector GW9-12 for Industrial Power SwitchingUS$ 50 - 68MOQ: 10 Units -
Silicone Rubber Insulated GW9-12/630A Outdoor Disconnector for 12kV SystemsUS$ 50 - 68MOQ: 10 Units
-
GW9-12/630A Outdoor Disconnector 12kV With Optional Silicone or Ceramic InsulatorsUS$ 50 - 68MOQ: 10 Units
-
Industrial Earthing Switch: 24kV Motorized Operation With ASTA Test ReportUS$ 200MOQ: 1 Unit
-
ASTA Certified 24kV Remote-Operated Earthing Switch for Circuit IsolationUS$ 200MOQ: 1 Unit
As a professional manufacturer, Jinhua Dika Electrical Equipment Co., Ltd. specializes in producing reliable high-voltage electrical equipment for global power infrastructure. Our 12kV 630A Outdoor Disconnecting Switch GW9-12 is engineered to provide a safe, visible, and robust isolation point in power distribution networks, ensuring operational safety and maintenance flexibility. With an annual export value reaching up to US$1.5 Million and ISO9001 certified manufacturing processes, we deliver products that meet the stringent demands of utilities and industrial clients worldwide.
This switch is a critical component for safely isolating sections of a live circuit, allowing for maintenance, repair, or reconfiguration without de-energizing the entire network. Its outdoor design ensures durability against environmental factors.
Key Features & Technical Advantages:
- High Reliability Isolation: Provides a clear, physical air gap disconnect, crucial for safety during line work.
- Robust Outdoor Construction: Designed with materials and coatings to withstand corrosion, UV exposure, and varying weather conditions.
- Optimized for 12kV Distribution: Perfectly matched to the voltage level of common distribution feeders and substation outputs.
- 630A Continuous Current Rating: Capable of handling significant load currents, suitable for main feeder lines.
- Manual or Motorized Operation: Available in standard manual configuration or with optional motorized drive for remote or automated operation.
- Simple & Secure Mounting: Facilitates straightforward installation on poles, structures, or in substation yards.
Detailed Technical Specifications:
| Parameter | Specification |
|---|---|
| Rated Voltage | 12 kV |
| Rated Current | 630 A |
| Model Designation | GW9-12 |
| Type | Outdoor Disconnecting Switch (Isolator) |
| Operating Mechanism | Manual (Standard), Motorized (Optional) |
| Pole Configuration | Typically 3-pole (for three-phase systems) |
| Insulation Level | Designed for 12kV system requirements |
| Main Contact Material | Copper or Copper Alloy |
Benefits for Your Distribution Network:
- Enhanced Safety: Creates a definitive open circuit for safe maintenance, protecting personnel and equipment.
- Operational Flexibility: Allows isolation of specific circuits without affecting overall network supply.
- Long Service Life: Built with durable components for reduced maintenance and long-term reliability.
- Global Compliance Suitability: Manufactured under ISO9001, supporting integration into diverse international grids.
- Cost-Effective Solution: Provides essential isolation functionality at a competitive price point for utilities and projects.
Our products are trusted across North America, South America, Europe, Asia, Africa, and Oceania, shipped from major ports like Shanghai, Tianjin, Guangzhou, and Ningbo. This global reach demonstrates the adaptability and reliability of our GW9-12 switch in different climatic and grid conditions. Choosing Jinhua Dika means partnering with a focused manufacturer dedicated to quality in high-voltage distribution components.
For your next power distribution project requiring safe and reliable circuit isolation, the 12kV 630A Outdoor Disconnecting Switch GW9-12 offers a proven solution. Contact us to discuss your specifications, request detailed documentation, or place an order.
Frequently Asked Questions (FAQ):
Q1: What is the primary function of this disconnecting switch?
A: Its primary function is to provide a visible, physical air gap isolation point in a 12kV power distribution circuit. It is used to safely disconnect a section of the line for maintenance, testing, or emergency purposes while the rest of the network remains operational.
Q2: Is this switch suitable for both overhead line and substation installation?
A: Yes, the GW9-12 is designed as an outdoor switch and is commonly installed on overhead line poles, towers, or within substation yards to isolate feeders or transformers.
Q3: Can the switch be operated remotely?
A: The standard version is manually operated. However, a motorized drive option is available for remote operation, which can be integrated into SCADA systems or controlled from a distance.
Q4: What are the typical maintenance requirements for this outdoor switch?
A: Maintenance is minimal. Periodic visual inspections for corrosion or damage, checking mechanical operation smoothness, and ensuring contact cleanliness are recommended. Its robust outdoor design reduces maintenance frequency.
Q5: Does it come with any specific mounting hardware or accessories?
A: Mounting brackets or frames are typically included or available. Specific accessory packages (like operating handles, locking devices) can be provided based on customer request.
Q6: Are there different blade (contact) configurations available?
A: The standard configuration is a three-pole, single-break design for three-phase systems. Other configurations may be customizable upon request for specific project needs.
Q7: What is the expected mechanical life (number of operations)?
A: These switches are designed for high mechanical durability. The exact number of guaranteed operations can be provided in technical datasheets, but they are built for frequent use over many years.
Q8: How does the ISO9001 certification benefit the buyer?
A: The ISO9001 certification of our manufacturing process ensures consistent quality control, documented procedures, and a systematic approach to meeting product specifications. It provides buyers with confidence in the reliability and traceability of the product.
