Cutting machine
Cutting machine belt width 450-800mm
Film cutting thickness 1-15mm
Cutting length accuracy error ± 1mm
Conveyor belt speed 4~40m/min
Front conveyor belt length 1100mm
Rear conveyor belt length 600mm
Film cutting length 0.1~9999.9mm
The height from the conveyor belt to the ground
is 800 ± 50mm

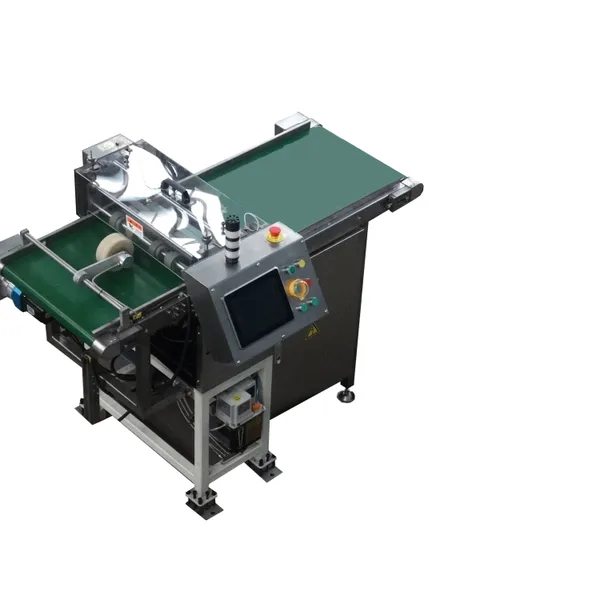

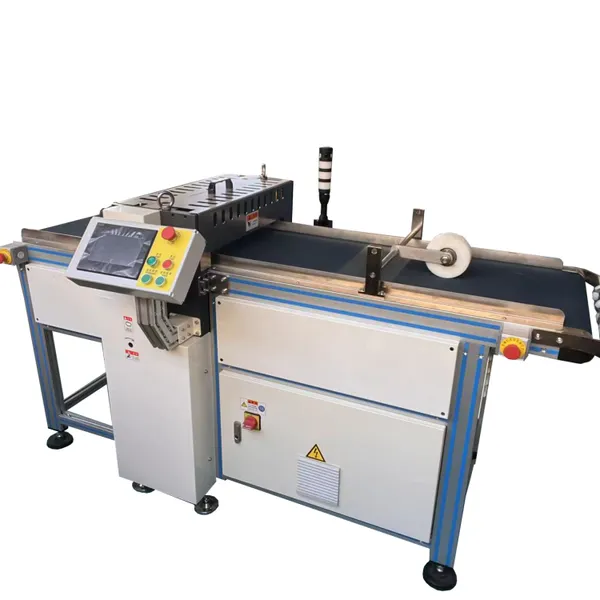

The equipment mainly consists of a frame, a moving knife, a fixed knife, a pressure roller, a conveyor belt, a servo motor, and electrical components. The whole machine adopts touch screen operation. The device is equipped with sound and light indicator lights, which are green for normal operation, red for emergency stop, and yellow for malfunction. There are four sets of emergency stop buttons on the front, back, left, and right sides. In case of emergency, pressing the emergency stop button will stop the equipment. The cutting frame is treated with carbon steel spray coating, and the conveyor belt frame is assembled with aluminum alloy profiles for good stability. Adjust the equipment, set the cutting length, start the equipment, and the cutting machine will automatically cut the film into the required length. The device runs smoothly and without noise. The surface of the equipment is smooth and flat, without sharp corners, burrs, or flying edges. All rotating parts are protected by protective covers, and the safety cover is equipped with a safety switch. When the safety cover is opened, the equipment stops to avoid accidental injury.
