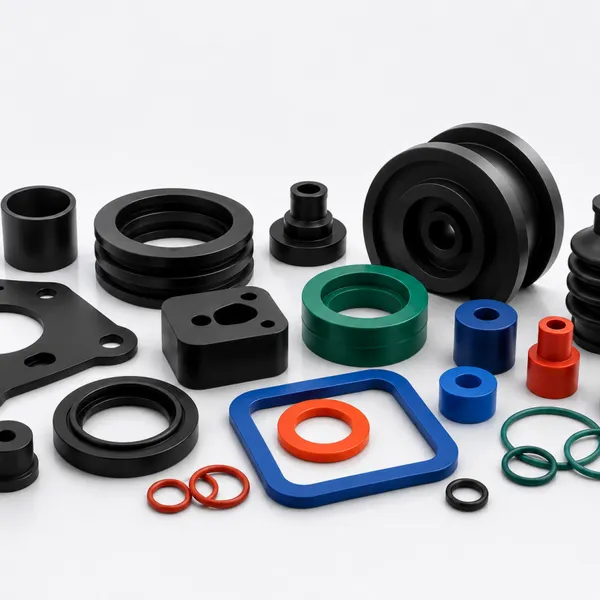

Custom molded rubber seals
Precision Tooling, Custom Elastomeric Compounding, & OEM Sealing Solutions
XI'AN CHRIS NEW MATERIALS CO., LTD. provides full-service, high-precision manufacturing for Custom molded rubber seals tailored to proprietary equipment dimensions, client-submitted CAD drawings, physical samples, or rigid international engineering specifications. When standard catalog sealing elements fail under complex mechanical motions or severe environmental factors, bespoke Custom molded rubber seals ensure an optimized geometric fit, stable sealing force, and extended operational lifespans. Leveraging advanced mold-making infrastructure and elite elastomer chemistry, we help heavy industry minimize tool modification costs and reduce system down-time worldwide.
🛠️ Advanced Technical Capabilities & Customization Flow
Our engineering division transforms complex cross-sectional requirements into durable sealing architecture via a structured manufacturing workflow:
Custom Customization Process
1. CAD Review & FEA Simulation：Step 1。
Our team reviews client-submitted 2D/3D drawings (STEP, IGES, DWG). We perform Finite Element Analysis (FEA) to simulate seal deflection, contact pressure, and potential stress concentration zones before cutting steel.
2. Precision Tooling Fabrication：Step 2。
Utilizing advanced CNC machining and EDM (Electrical Discharge Machining), we engineer high-cavity compression, transfer, or injection molds with strict adherence to ISO 3302-1 Class M1/M2 dimensional tolerances.
3. Elastomeric Compounding & Slabs Testing：Step 3。
Raw polymers are compounded with precise curatives, anti-oxidants, and reinforcing fillers. Unvulcanized rheometer testing is executed to guarantee optimal cure speed, durometer rating, and thermal performance.
4. Molding, Deflashing, & Secondary Curing：Step 4。
Components are molded under high tonnage. Automated or cryogenic deflashing ensures microscopic flash tolerances. Optional post-curing stabilizes the final cross-linking network to minimize compression set.
📊 Material Selection Matrix for Bespoke Engineering
We compound and process an expansive matrix of high-performance elastomers to meet your specific chemical, pressure, and thermal application thresholds:
Material Matrix Base
Durometer Hardness Range
Continuous Thermal Limits
Primary Engineering Highlights
Targeted Industrial Media
NBR (Nitrile)
40 - 90 Shore A
-40°C to +120°C
High cost-efficiency, excellent tensile strength, and high abrasion resistance.
Petroleum oils, mineral hydraulic fluids, water.
FKM / Viton™
60 - 95 Shore A
-20°C to +200°C
High-temperature structural stability and elite chemical resistance.
Corrosive hydrocarbons, acids, chlorinated solvents.
HNBR (Hydrogenated Nitrile)
70 - 95 Shore A
-30°C to +160°C
Enhanced mechanical strength, high tear retention, and hot oil durability.
Sour gas ($H_2S$), amine inhibitors, crude oil mixtures.
EPDM (Ethylene Propylene)
40 - 85 Shore A
-55°C to +150°C
Elite aging parameters, ozone proofing, and excellent steam sealing.
Hot water, high-pressure steam, polar solvents.
Silicone / VMQ
30 - 85 Shore A
-60°C to +230°C
Wide thermal operating envelope with superior low-temperature elasticity.
Pure hot air, ozone, medical/food process chemicals.
PTFE (Fluoroplastic)
55 - 70 Shore D
-200°C to +260°C
Zero stick-slip, near-universal chemical inertness, and ultra-low friction.
Highly aggressive chemicals, strong alkalis, pure acids.
🏭 Cross-Industry Applications
Our precision Custom molded rubber seals are integrated by global OEMs and plant operators into various critical mechanical systems:
Oil and Gas Infrastructure: Heavy-duty downhole packer elements, custom blowout preventer (BOP) blocks, hammer union gaskets, and wellhead completion strings.
Pipeline & Valve Engineering: Customized butterfly valve seats, gate valve linings, ball valve seals, and high-pressure expansion joints.
Fluid Power & Hydraulic Systems: Bespoke u-cups, rod wipers, dynamic piston rings, and multi-lip packings for custom hydraulic cylinders and heavy-duty actuators.
General Industrial Machinery: Specialized diaphragms for dosing pumps, custom housing gaskets for rotary screw compressors, and robotic automation joint protectors.
❓ Technical FAQ for Engineering & Procurement Teams
What are custom molded rubber seals?
Custom molded rubber seals are high-performance sealing profiles designed from scratch and manufactured exclusively to match a specific machine housing, pipeline flange, or fluid dynamic enclosure. Unlike mass-produced off-the-shelf standard seals, they are tailored to proprietary dimensions, custom compound requirements, and specific operating conditions provided by the customer.
Which industries need custom rubber seals?
Bespoke seals are mandatory in industries operating heavy mechanical equipment or high-pressure systems. Core sectors include oil & gas exploration, deep-sea subsea extraction, severe petrochemical refining, large-scale pipeline fluid networks, industrial hydraulic/pneumatic actuation loops, and advanced automated machinery manufacturing.
What minimum information does Xi'an Chris require to initiate an official quotation?
To deliver an accurate technical quote and tooling cost analysis, we require:
A detailed 2D blueprint with tolerances or a 3D CAD file (STEP/IGES layout).
The specific base elastomer configuration or a breakdown of the operating environment (temperature range, pressure load, chemical exposure media).
The targeted production volume (prototype batching versus high-volume commercial runs).
How do you ensure the dimensional accuracy of complex molded geometries?
We combine state-of-the-art CNC mold cutting with strict process control parameters during vulcanization. Shrinkage rates are calculated into the tool design phase for each specific rubber compound. Final production parts undergo testing using digital optical measurement systems and profile projectors to guarantee that critical-to-function dimensions fall securely within client specifications.
🏢 Conclusion & About the Manufacturing Partner
Specialized and complex industrial environments require parts that fit perfectly with zero structural compromise. Choosing custom-engineered Custom molded rubber seals from XI'AN CHRIS NEW MATERIALS CO., LTD. ensures that your proprietary heavy equipment operates at maximum capacity, significantly reducing maintenance overheads and preventing expensive fluid bypass failures. By uniting advanced polymer engineering with precision tool fabrication, we supply durable containment and isolation elements that optimize global mechanical performance.
Contact our design desk today to submit your CAD files, request an elastomeric compatibility review, or secure an official project RFQ.
