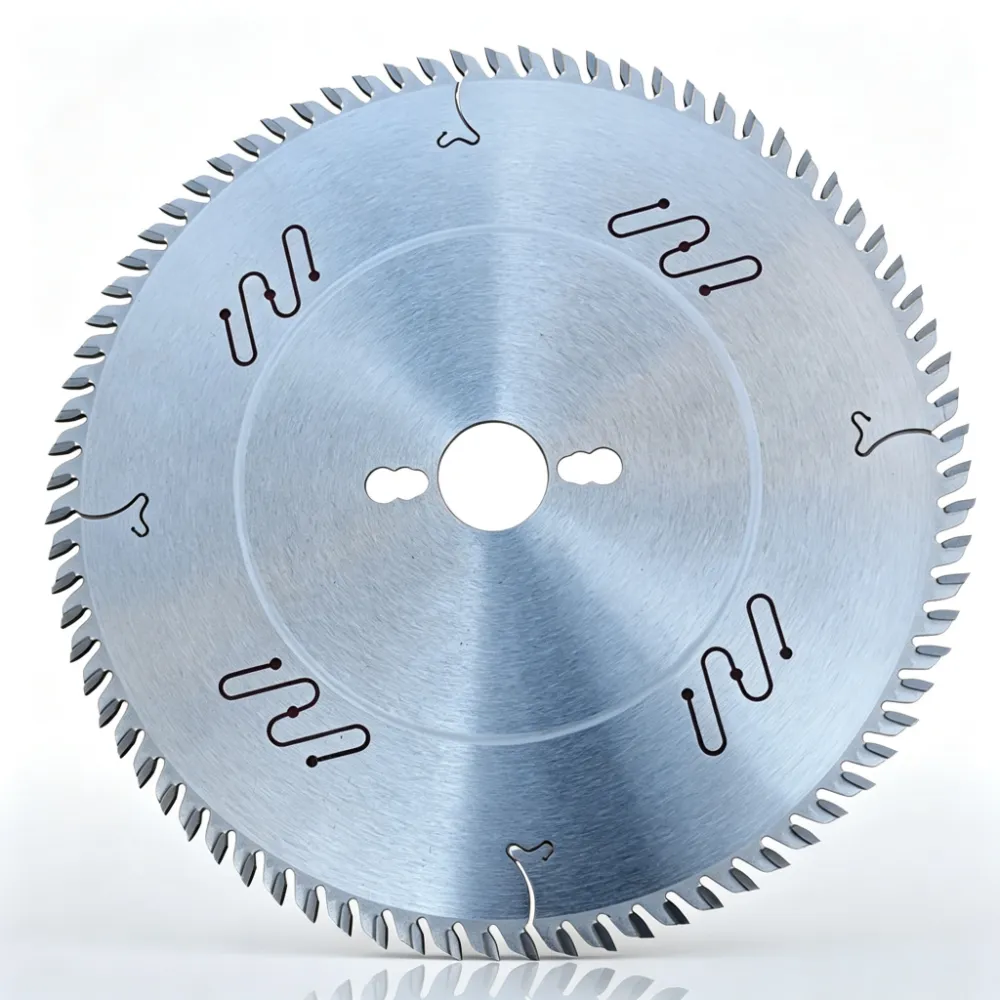

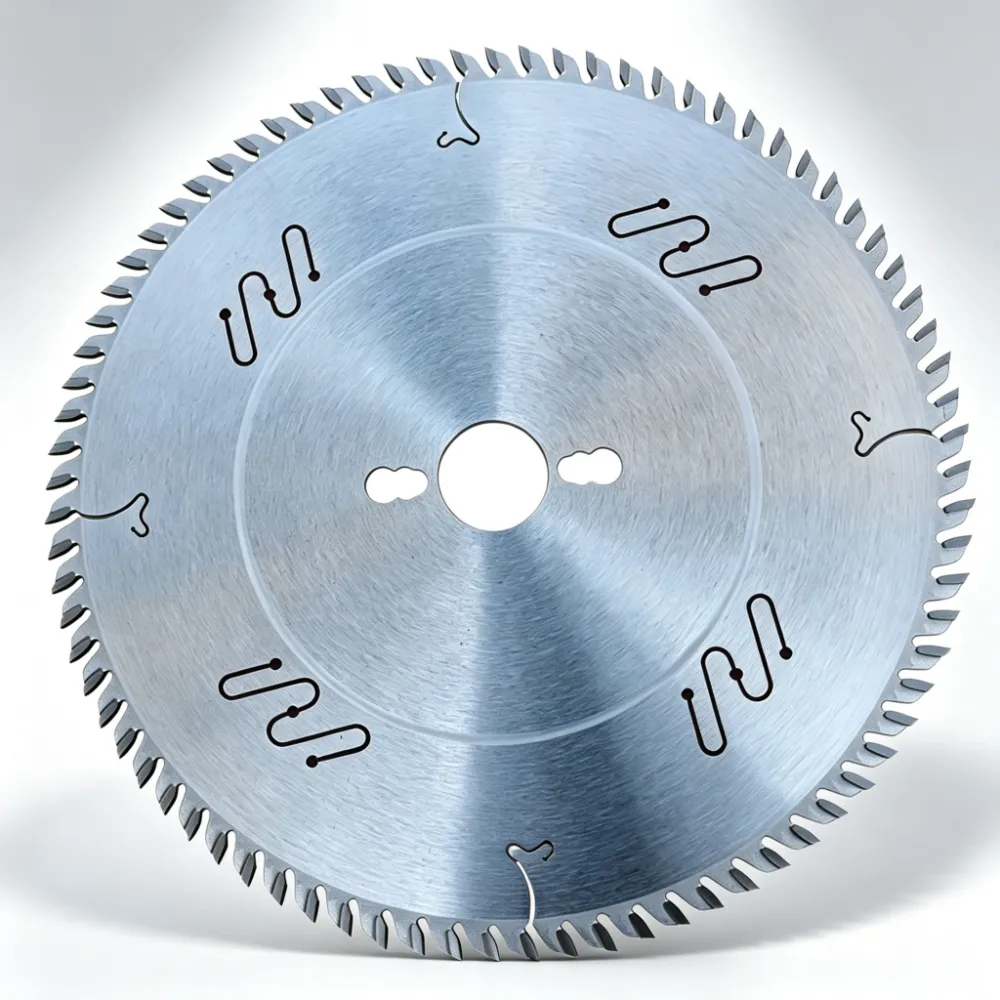

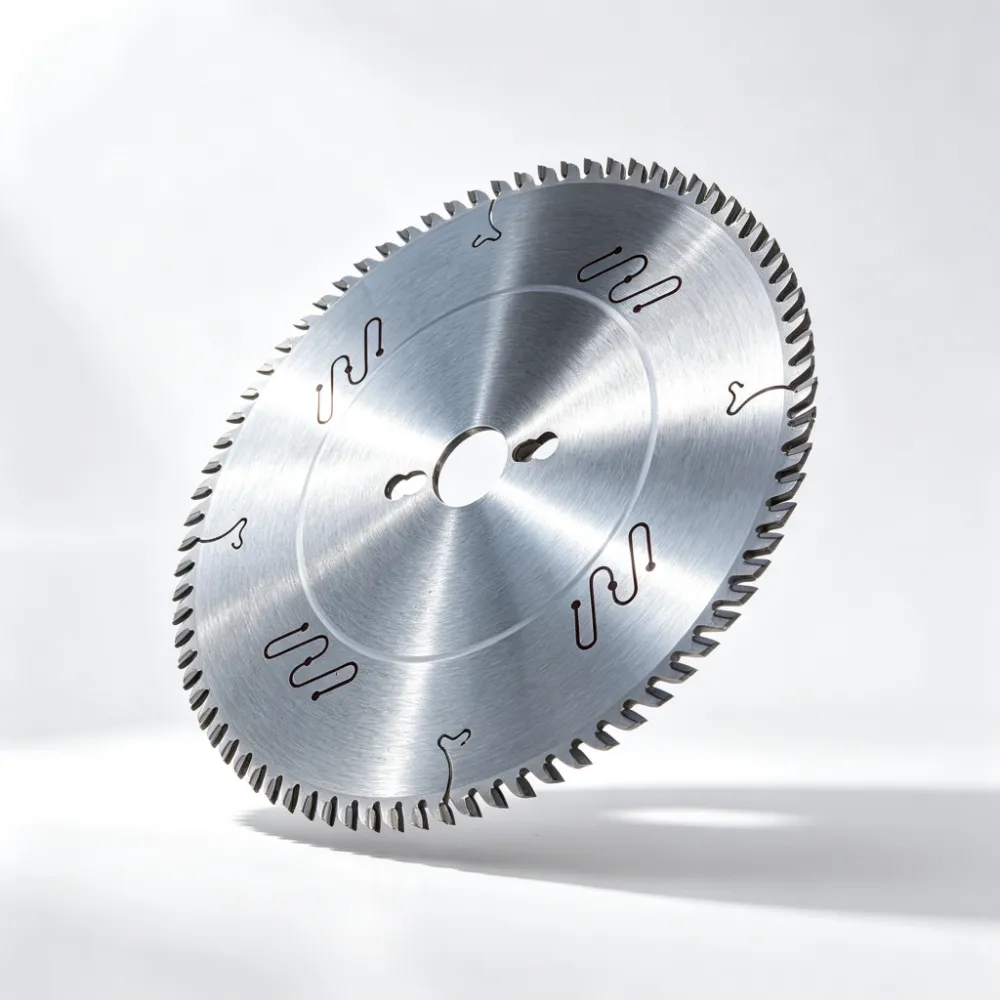

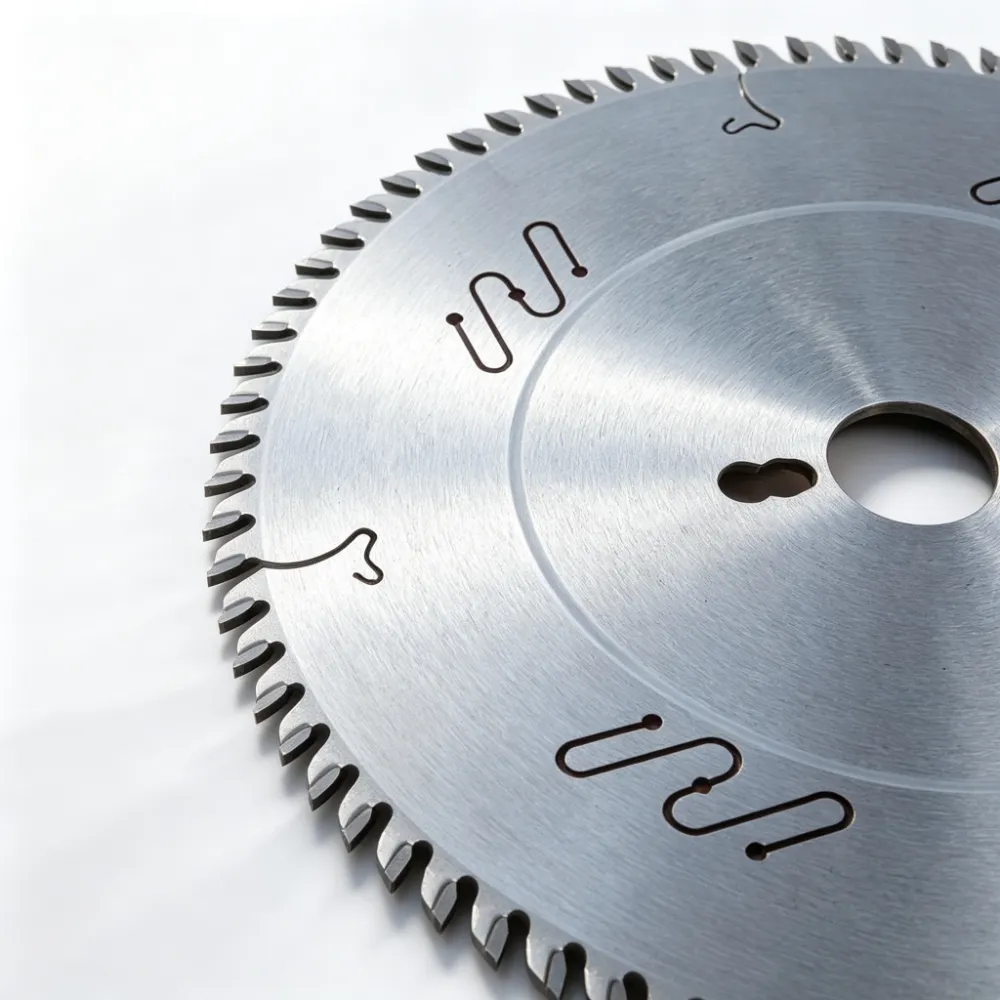

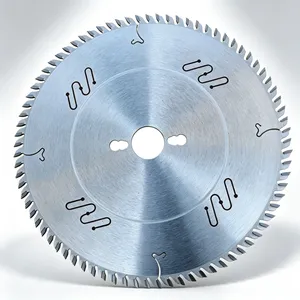

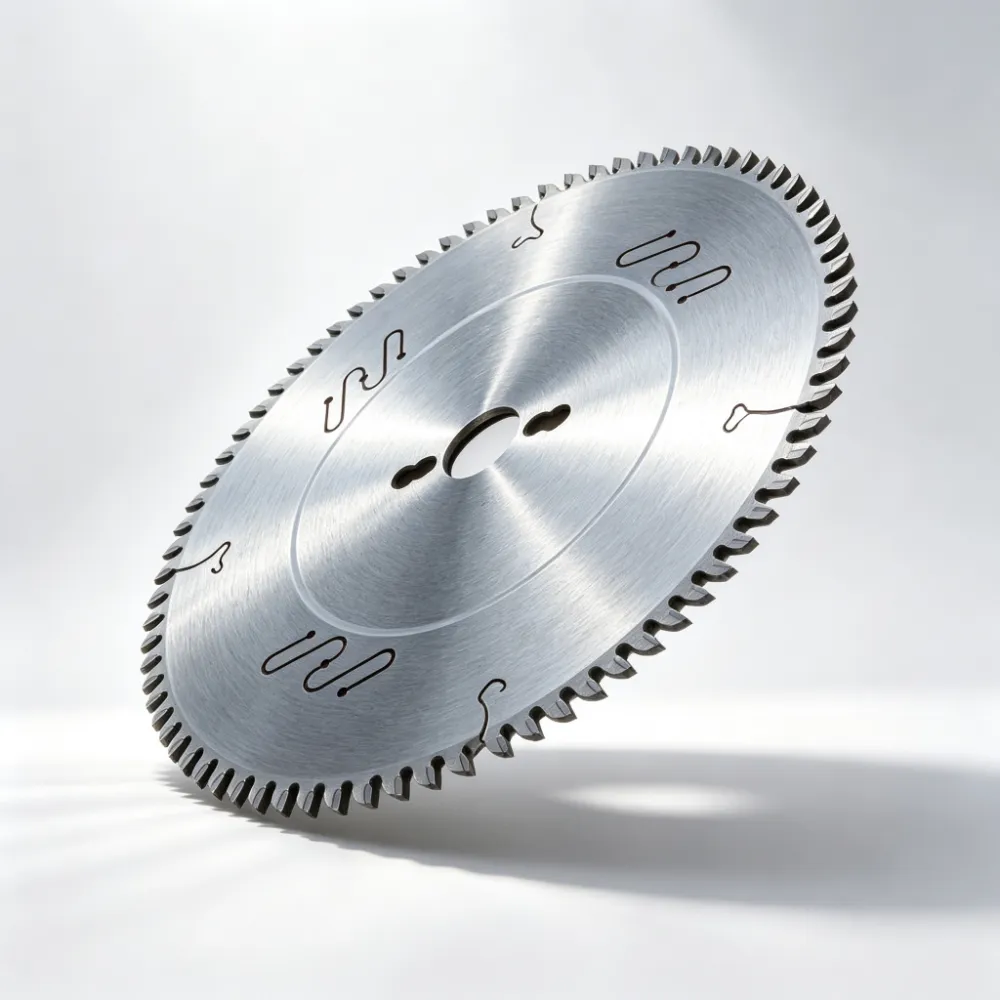

75Cr1 Panel Saw Blade 180mm 48T ATB for Wood Panel Cutting for Furniture
Product Overview
TCT circular saw blade with 48T ATB (Alternate Top Bevel) teeth, designed for clean cross-cutting and panel sizing on solid wood, plywood, and wood-based panels. The 180mm (7-inch) diameter is a compact size suited for benchtop saws, panel sizing machines, and portable cutting setups in furniture and cabinetry workshops. ATB tooth geometry shear-cuts wood fibers cleanly, minimizing splintering on both top and bottom surfaces. Built with 75Cr1 alloy spring steel body and premium tungsten carbide tips for consistent performance and long service life.
Key Features
48T ATB Tooth Design — Alternate top bevel geometry produces clean, splinter-free cross-cuts on solid wood and plywood with minimal tear-out
75Cr1 Steel Body — High-rigidity alloy spring steel reduces vibration and deflection, ensuring straight and stable cuts
Chrome Coated Surface — Corrosion and wear resistant coating extends blade lifetime in humid workshop environments
Precision Bore Fit — 30mm bore (customizable to 25.4mm, 20mm, 16mm) ensures minimal runout on panel sizing machines and table saws
Applications & Compatible Equipment
Ideal for cutting solid wood boards, plywood, MDF, particle board, laminated panels, and veneered boards. Compatible with:
Panel sizing machines (Altendorf, SCM, Holzma)
Table saws and benchtop saws (Bosch, Makita, DeWalt, Festool)
Sliding table saws (Felder, Jet, Powermatic)
The 180mm 48T ATB configuration is a versatile choice for furniture factories, cabinetry shops, and woodworking workshops requiring clean cross-cut finishes on wood-based panels.
Customization Services
OEM/ODM available: custom bore size, teeth number, logo, and packaging
Custom specifications supported per your drawings or requirements
Standard delivery: 15-20 working days
MOQ: 100 PCS
Packaging & Shipping
Standard packaging: individual blade in anti-rust paper + foam pad + color box
Bulk packaging: 10-20 blades per carton with foam separation
Custom packaging available upon request
Shipping from Hebei, China (Xingang/Tianjin port)
| Parameter | Value |
|---|---|
| Product Type | TCT Circular Saw Blade |
| Outer Diameter | 180mm |
| Bore Diameter | 30mm |
| Kerf | 2.8mm |
| Plate Thickness | 1.8mm |
| Teeth Number | 48T |
| Tooth Form | ATB (Alternate Top Bevel) |
| Body Material | 75Cr1 Alloy Spring Steel |
| Tip Material | Tungsten Carbide |
| Surface Treatment | Chrome Coated |
| Application | Wood Panel Cutting, Plywood, MDF, Laminated Board |
| Compatible Machine | Panel Sizing Machine, Table Saw, Sliding Table Saw |
| Brand | AOMJNG |
| MOQ | 100 PCS |
| Customization | OEM/ODM Supported |
| NOT For | Stone, Metal, Ceramic Tile Cutting |
