Production Description

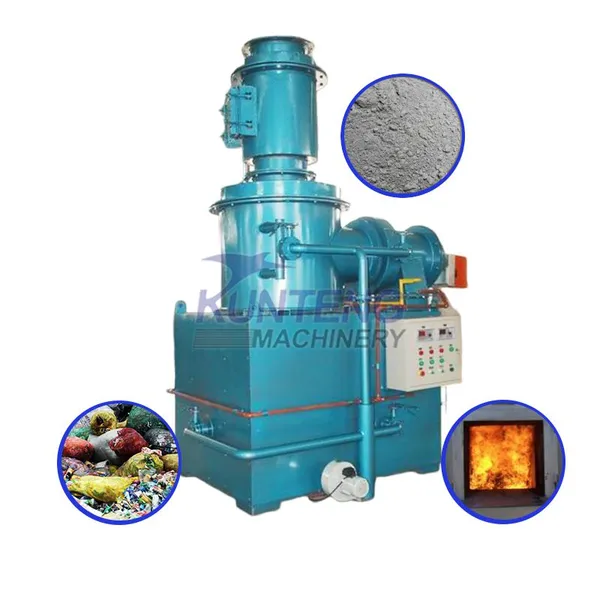

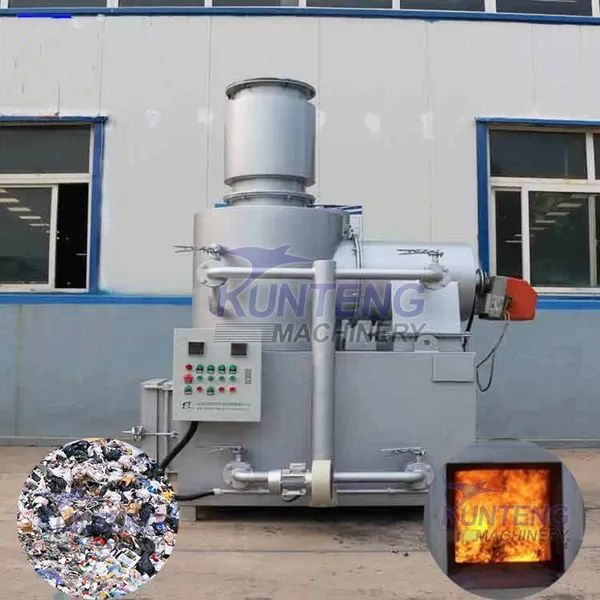

About small incenerator municipal solid waste incinerator machine
Our municipal waste incinerator is used to burning the sorted useless waste, It can reduce the volume of trash up to 95%. It greatly saves the land space,This is especially useful in countries where land is scarce.The burning heat can be used to generate electricity,Incinerated fly ash can be used as the material for making bricks, shingles, or tiles.
Advantages of small incenerator municipal solid waste incinerator machine
1. Small size, high combustion efficiency, 2. Automatic control, reasonable combustion process, 3. Equipped with exhaust gas purification device to get a high degree of harmlessness to the environment.

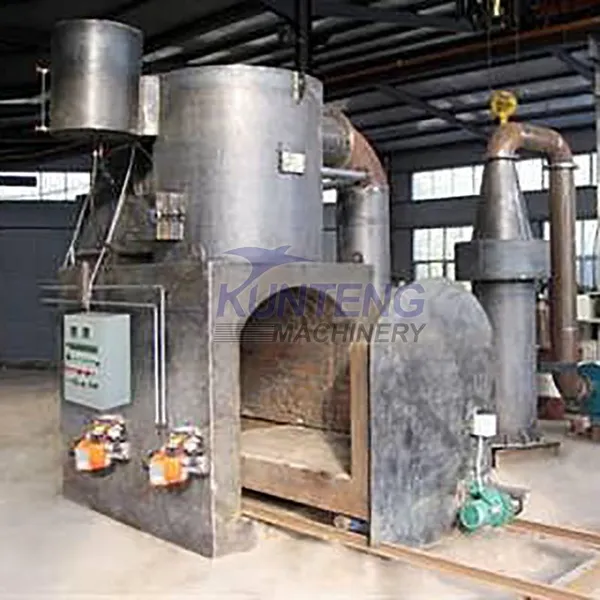

The small incenerator municipal solid waste incinerator machine structure features:
The furnace outside is steel structure, the middle is refractory material, and the inner layer is high temperature resistant material, which can withstand the high temperature of 1790℃.This design can not only ensure the enough combustion temperature inside, but also keep the surface temperature to low to prevent burns hurt. Refractory whole casting, not easy to fall off, not easy to corrosion.
Municipal waste incinerator |
||
Primary combustion chamber |
Furnace body combustion chamber |
Volume: 2.4m³, Burning capacity: 500kg/h |
Integral automatic burner |
Power: 0.11kw |
|
Incineration temperature |
400-600℃ |
|
Size of waste inlet hole |
980×980mm |
|
Two-stage combustion furnace |
Secondary combustion chamber |
Volume: 1.2m³ |
Secondary burner |
Power: 0.11kw |
|
Incineration temperature |
600-1200℃ |
|
Spray system |
Sprinkler tower with connecting pipes |
First spray tower (Size∅1000×1000mm) |
|
Secondary spray tower (Size∅1000×3000mm) |
Whole Waste Sorting Production Line
Urban waste, construction waste, or stale waste enters the feeder — Belt conveyor — Waste trommel screen machine (which mesh sizes of 10-200mm. can sorting waste according to the material size) — Magnetic separator(sorting metal) — Air separation machine(Screening waste by material’s weight) — Garbage manual sorting platform(pick up the large solid wastes, such as quilts, tree trunks, long sticks, brick stones, etc.). — Incinerator(useless garbage is incinerated)Through this series of sorting process, plastic bottles, rubber, metals, cardboard, hard plastics, etc. are selected, finally, the selected light materials are balled by the baller machine.the useless garbage is incinerated to landfill.
Main machines of the line
Successful Project
Company Profile
Kunteng Machinery founded in 1999, mainly focuses on design and manufacturing waste sorting machine waste recycling plant. Trommel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, waste shredder machine, small incenerator municipal solid waste incinerator machine , chain plate feeder, belt conveyor.etc. Kunteng Machinery is a high-tech modern enterprise integrating scientific research and development, production and sales, engineering design, installation services. Our machine has passed ISO9001:2000 CCC,CE certification.Our machines has already spread over the world.We can provide customers with one-stop service and solutions, complete equipment, on-site installation, and after-sales support.
PACKING & SHIPPING
FAQ
Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
