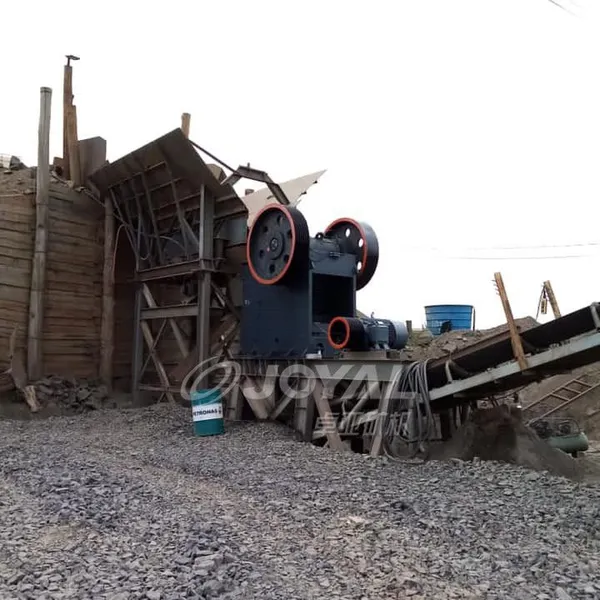

Help Center200TPH Jaw and Cone Crusher Plant to Crushing Granite Stone and Get Aggregates for Roads and Highways Project in Ghana, Nigeria West Africa
Product Spotlights
Related Products
-
200tph Capacity Mining Quarry Limestone Granite Gravel Cone Crushing Machine, Building and Road Construction Project in Ghana, AfricaNegotiableMOQ: 1 Set -
200TPH Mobile Jaw Crusher Plant With Diesel Generator for Hard Rock in Kumasi, GhanaNegotiableMOQ: 1 Set
-
50TPH Mobile Jaw and Cone Crusher for Hard Rock in Kumasi, Ghana, With Diesel Generator for Road and Construction, Mining ProjectNegotiableMOQ: 1 Set
-
5-20tph Rock Jaw Crusher /Stone Crusher Plant /Stone Mining MachineUS$ 1 - 10000MOQ: 1 Set
-
15-65tph Rock Crusher Jaw Crusher Stone Crushing Plant Concrete Crusher MachineUS$ 1 - 10000MOQ: 1 Set

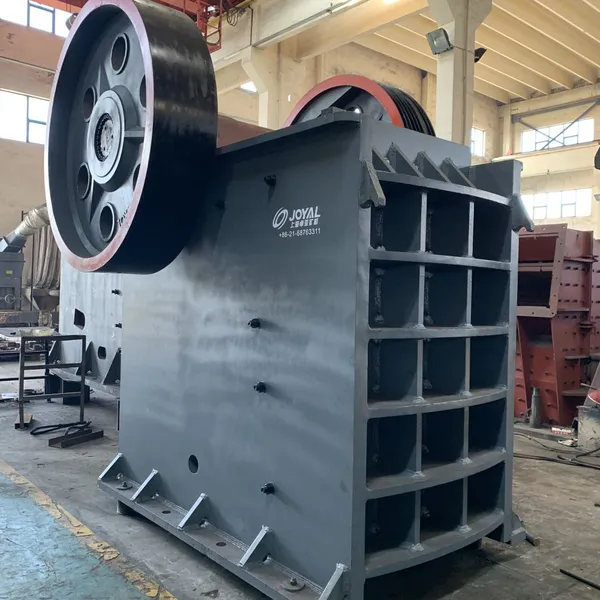

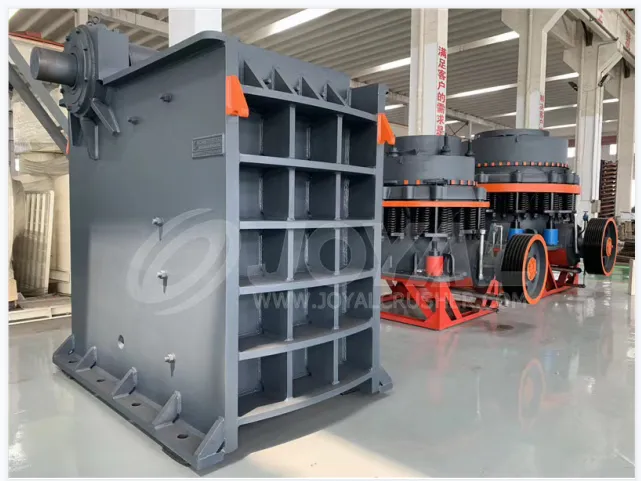

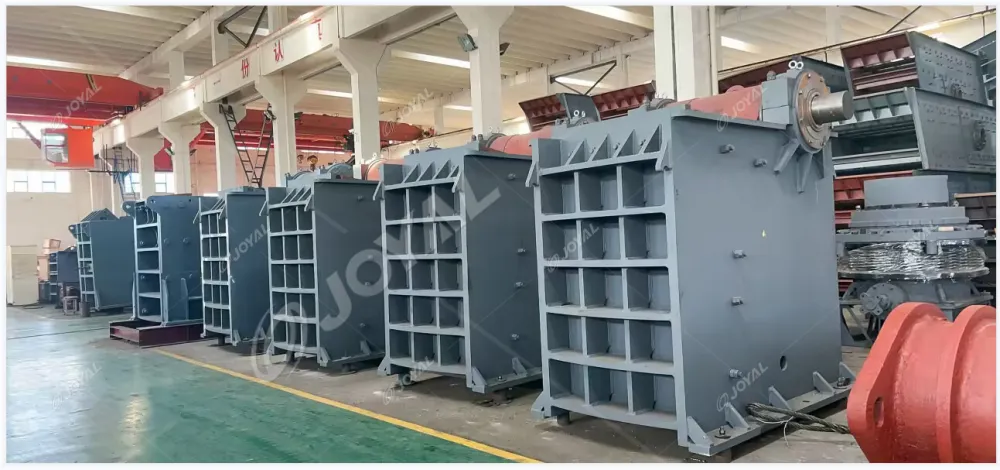

PE Jaw crusher, Primary crushing
Productivity:
150-200tons/hour, if per day of working time is 8-10hours, that is the productivity about 1500~2000 tons/day, one month of productivity about 45,000~60,000 tons/month; this is for one shift planning, if one day have 2 shift we guess, that is 90,000~120,000 tons/month.
| Model |
Feed Opening Size (mm) |
Max. Feeding Size (mm) |
Adjustable Range of Output size (mm) |
Capacity (t/h) |
Motor Power (kw) |
Overall Dimension (mm) |
|
PE750x1060 with motor |
750x1060 | 630 | 80~150 | 150~200 | 110-6P | 2655x2302x3110 |
|
Spare Parts: Fix jaw plate (Mn13 Cr2), Movable jaw plate (Mn13 Cr2), Right & Left side plate (Mn13), Toggle Plate; | ||||||
|
High Light Features: High efficiency running with excellent performance, simple maintenance, with centralized lubrication pipe to improved the operation convenience; (pls kindly check the machine’s picture). | ||||||
|
||||||
|
| Main parts of Jaw crusher | |
| Main unit | Assembly of movable jaw |
|
|
| Main parts | Bearings |
|
|
| Spare parts (Fixed jaw plate, Movable jaw plate, Right & Left side plate, Toggle Plate, springs) | Motor |
|
|
|
|
ZYC1000 High efficiency Cone crusher, Secondary cone crushing
Productivity:
ZYC1000 (3.3FT=diameter of mobile cone), secondary crushing; Spring Cone crusher, (with thin oil lubrication stations, hydraulic adjustment system, individual electric control cabinet with softer-starter;)
Model |
Cavity Size |
Max. Feeding Size (mm) |
Adjustable Range of Output size (mm) |
Capacity (t/h) |
Motor Power (kw) |
Overall Dimension (mm) |
|
ZYC 1300 with motor |
Coarse (secondary) |
200 | 16~51 | 150~390 | 160-6P | 2958x2354x3156 |
|
Spare Parts:
Concave Manganese steel (ZGMn13Cr2) Mantle Manganese steel(ZGMn13Cr2) | ||||||
|
What is lubrication system? Thin oil stations for continues lubrication to reduce downtime and maintenance time, lubrication oil is for Main shaft and counter shaft. It have individual electric control cabinet for lubrication station.
What is hydraulic adjustment system? Hydraulic cleaning system keeps the cavity clean, and its easy to operate, thus reducing the stoppage of machines. adoption of hydraulic adjusting device is convenient for regulation of discharge opening, hydraulic lock device is convenient and reliable. | ||||||
| ||||||
| ||||||
| Main parts of Jaw crusher | |
| Main unit | Spare parts (Concave & Mantle ) |
|
|
| Main parts - Upper Cover | Main parts - Cone |
|
|
| Lubrication oil station, air - conditioner cooling system | Electric control panel (with softer starter), Hydraulic station |
|
|
|
Shanghai JOYAL Machinery Co.,Ltd.
Add: No.365, Chuanhong Road, Pudong New Area, Shanghai, China.
Mobile & WhatsApp:+86 139 1857 2172
